Philips Azur 4400 - Disassembly Advice; Component Disassembly Steps

GC4410
THERMOSTAT PLATE
PRINTED 29
THERMOSTAT RING 30
LINNE
B.WOLLE
W
OLLE
NYLON
NYLON
YLLE
S
E
ID
E
SILK
E
BOMULE
LEINEN
BACKPLATE 7
BALL SWIVEL 8
CORDSET 26
Remove Screw A
Remove BACKPLATE 7
Remove Screws B1, B2
FILLING DOOR ASSY 10
INLAY ASSY 11
SOS KNOB 24
SPRAY KNOB 25
LAMP ASSY 27
Remove Screw A
Remove BACKPLATE 7
Remove INLAY ASSY 11

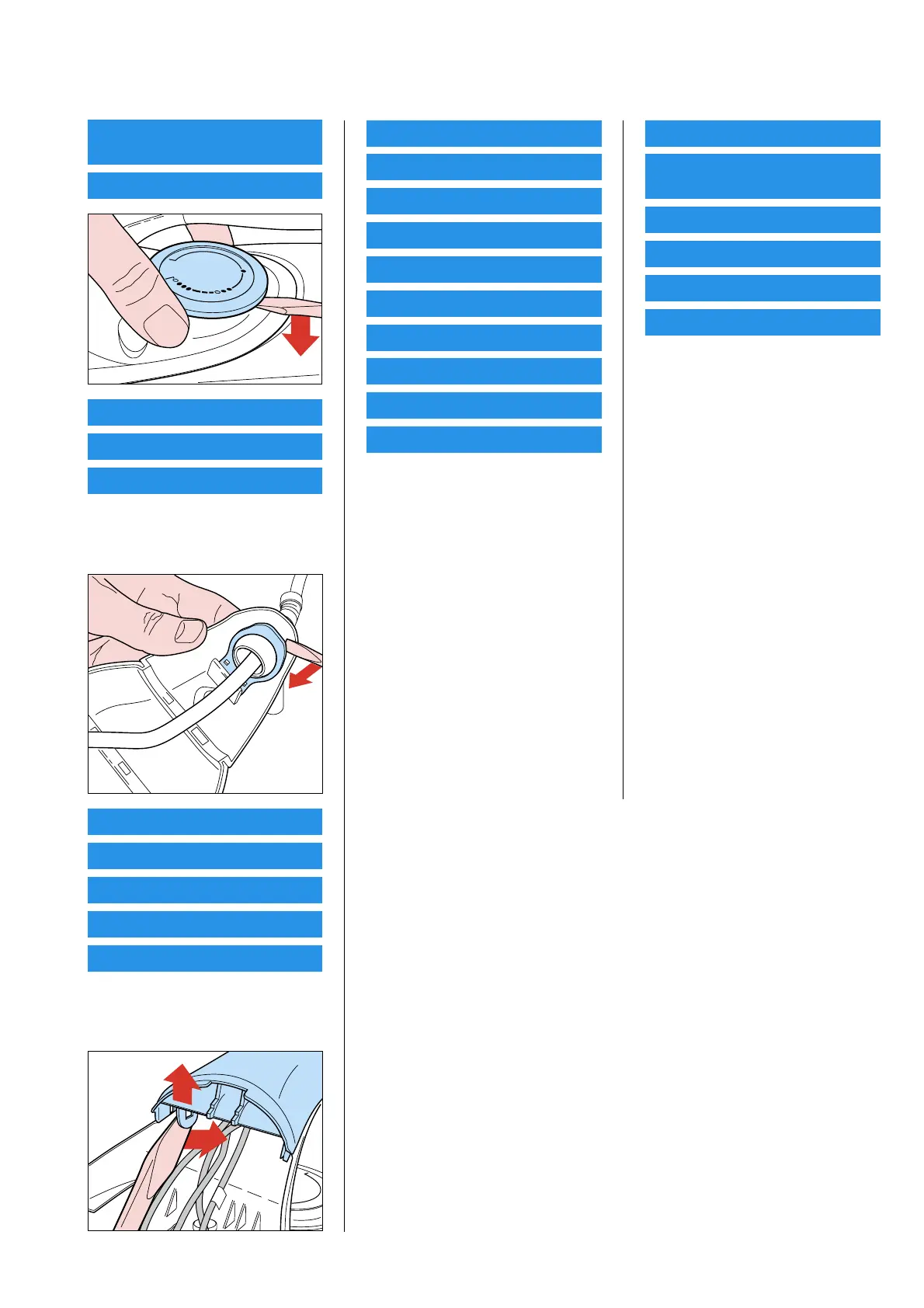

DISASSEMBLY ADVICE
STEAM SLIDER 13
WATER TANK ASSY 14
PUMP ASSY 16
STEAM SHAFT ASSY 18
CLAMP BRACKET 20
TANK SEAL 21
HOUSING 22
SPRAY NOZZLE ASSY 17
THERMOSTAT BUSH 28
AESTHETIC RING 31
Remove Screw A
Remove BACKPLATE 7
Remove INLAY ASSY 11
Remove SOS KNOB 24
Remove SPRAY KNOB 25
Remove Screws C1, C2
Remove CLAMP BRACKET 20
Remove STEAM SHAFT ASSY 18
Remove THERMOSTAT PLATE
PRINTED 29
Remove THERMOSTAT RING 30
Remove Screws D1, D2
Remove Screws E1, E2
Remove HOUSING 22
Remove Screws F1, F2
Remove WATER TANK ASSY 14
COVER 1
SOLEPLATE MOUNTED
ASSY 2
SOS SEAL 3
RYTON SPACER 4
DOSING SEAL 5
HEAT SHIELD 6
Remove Screw A
Remove BACKPLATE 7
Remove INLAY ASSY 11
Remove SOS KNOB 24
Remove SPRAY KNOB 25
Remove Screws E1
Remove Screws F1, F2
Remove WATER TANK ASSY 14
Remove Screws G1, G2, G3
Remove HEAT SHIELD 6
Remove COVER SPRAYED 1
