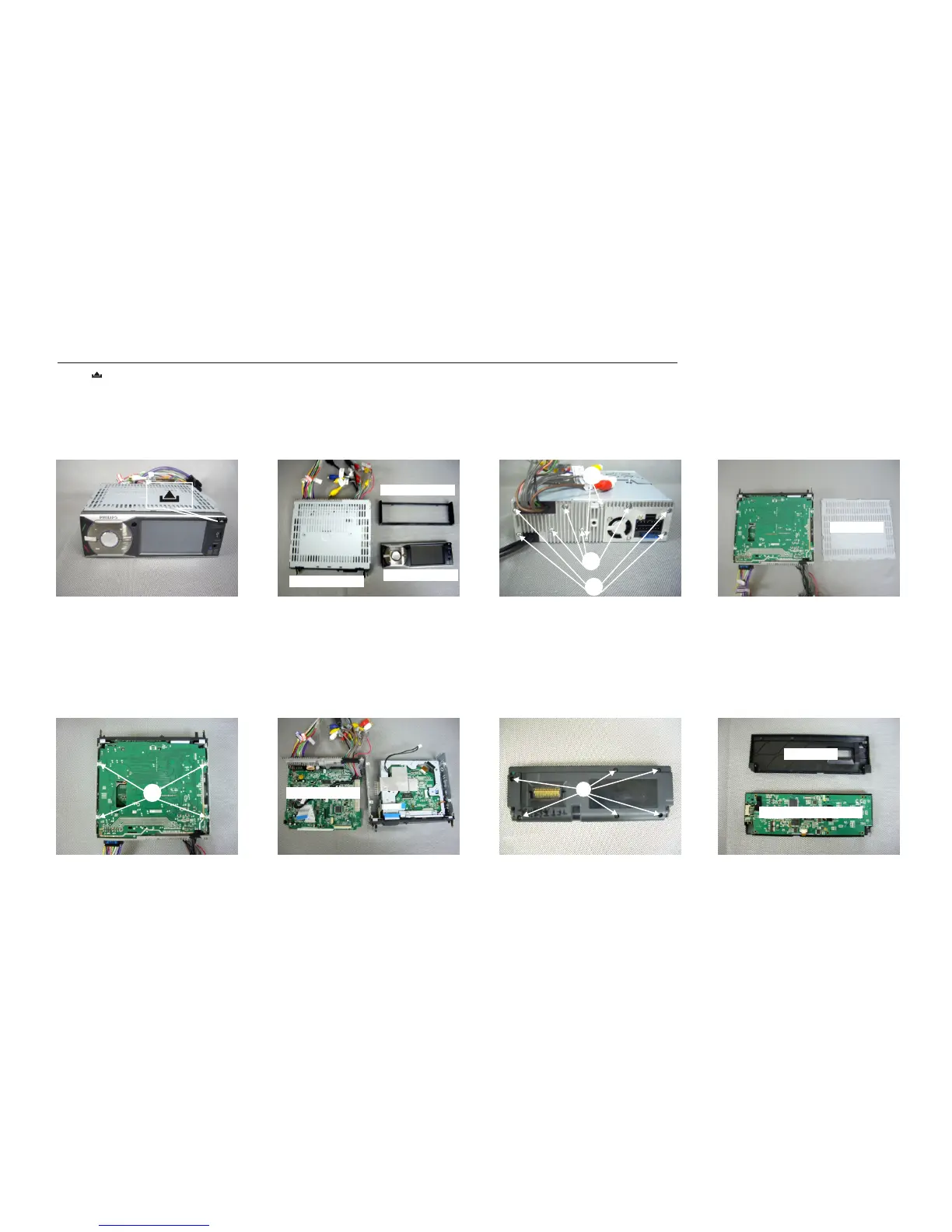

DISASSEMBLY INSTRUCTIONS
Dismantling of the car audio system and the front panel
1)Press to open the panel,then push the right side panel toward the left side to disengage it from the chassis.
2)Remove 2 screw A as indicated.
3)Remove the top and bottom lid as showin in the picture below with the help of a flat head screw driver.
4)Remove 4 screws B and 4 screws C as indicated.
5)Remove 4 screws E as indicated to loosen the main board.
A
B
C
D
E
6)Remove 6 screws F as indicated to loosen the front panel.
CAR AUDIO SYSTEM
F
BACK PANEL
FRONT PLATE + KEY BOARD
FRONT PANEL
TRIM PLATE
TOP OF LID
D
MAIN BOARD
To Next Page
