4-8
Abnormal color of video picture
Yes
Abnormal color of
video picture
Check whether the 3.3V
and 1.8V power supply
voltages on the decoder
board are normal.
Check Y1, R13, C38 and C39
Check other of power supply electric
circuit
Correct the connection
Check whether the
video filter network
circuit is normal.
Yes
Yes
No
No
No
Check whether the 27MHz
output signal normal.
change U1
Yes
No

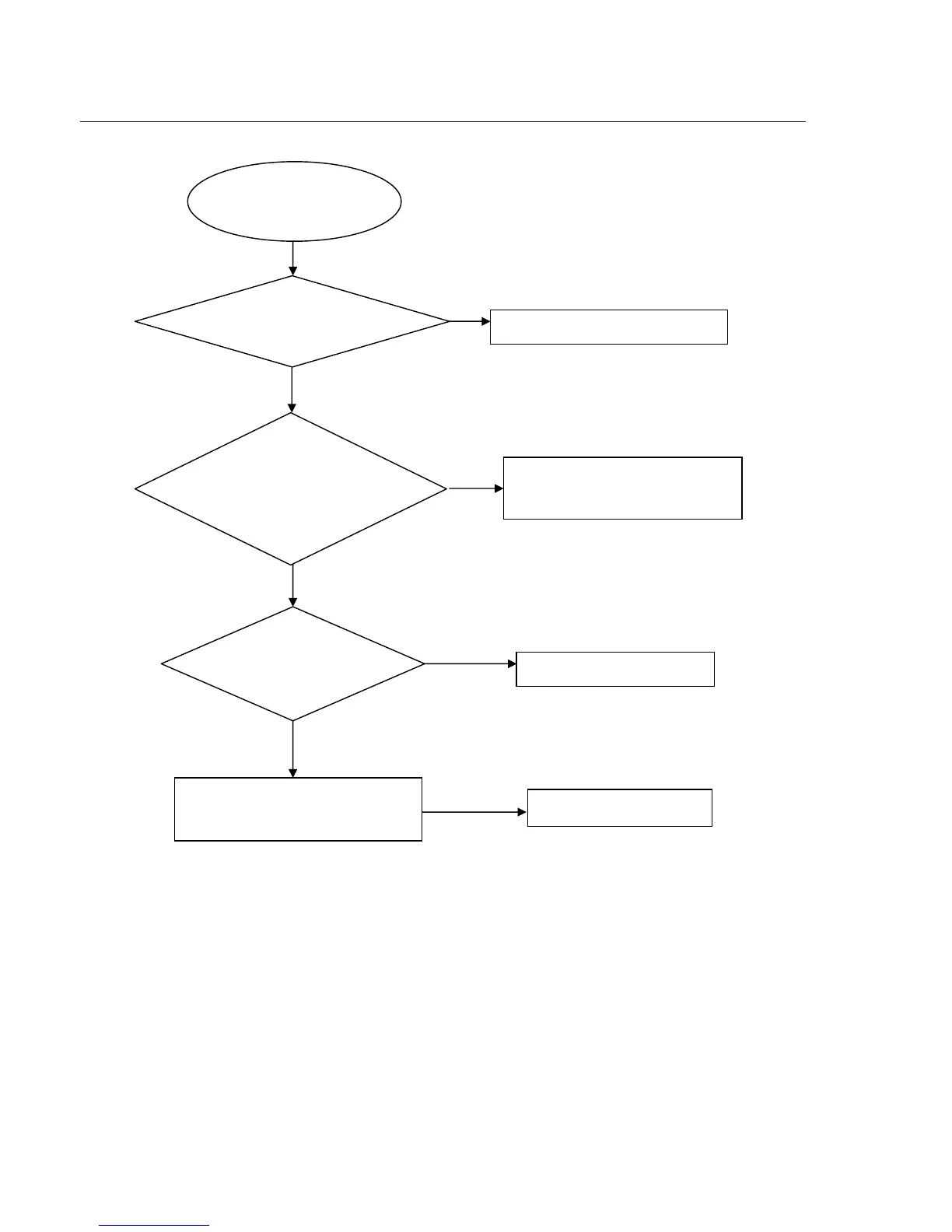

Trouble shooting chart
Check if the video signals on Pin
147,149,151,152,154 of U1 are normal
To Next Page
