Mechanical and Dismantling Instructions
Dismantling Instruction

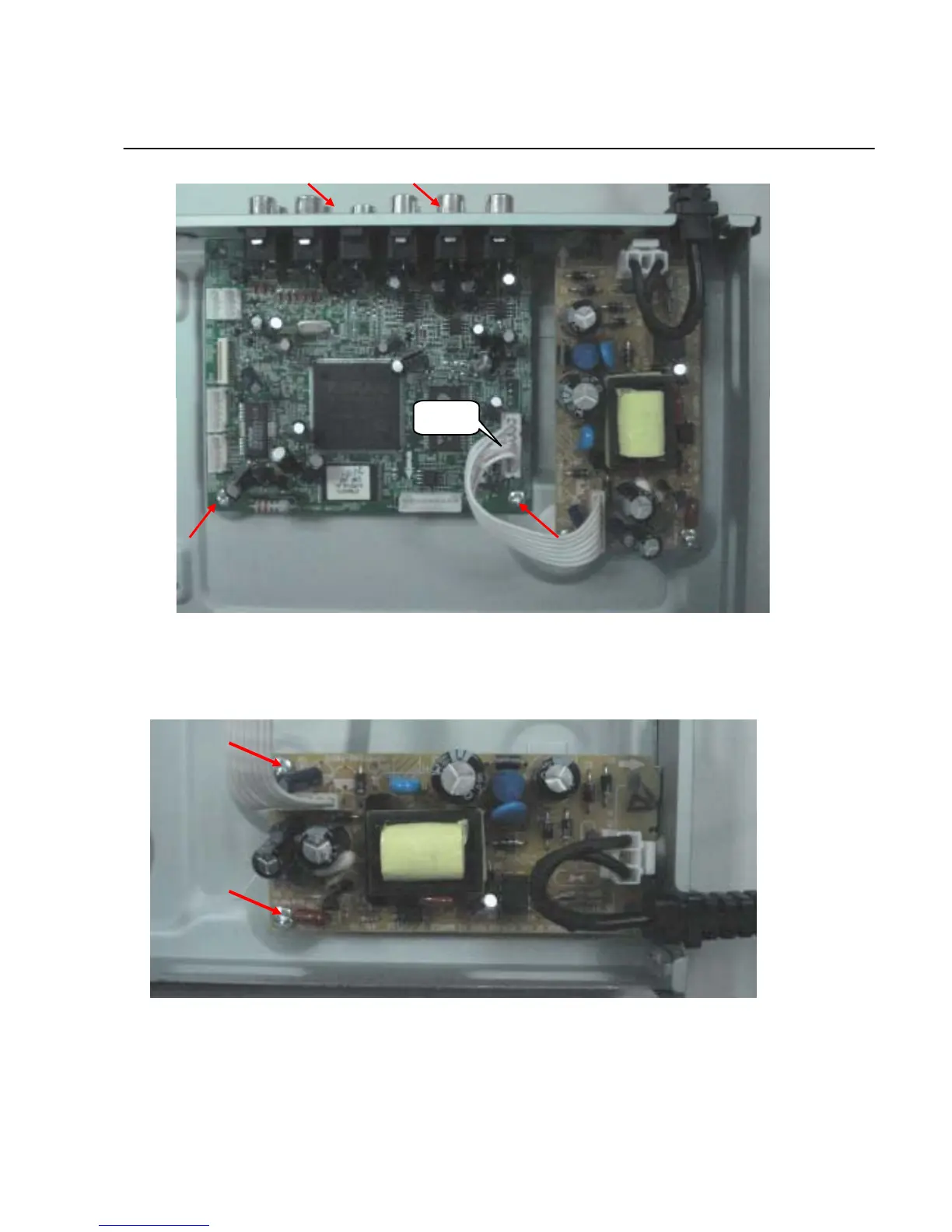

Step6: Dismantling Main Board, first disconnect the 1 connector, then remove 4 screws to remove the Main board. (Figure 8)
Step7: Remove the 2 screws on Power Board to dismantle the Power Board. (Figure 9)
2-4
Figure 9
Figure 8
CON 5
Figure 8
