Mechanical and Dismantling Instructions
Dismantling Instruction
The following guidelines show how to dismantle the player.

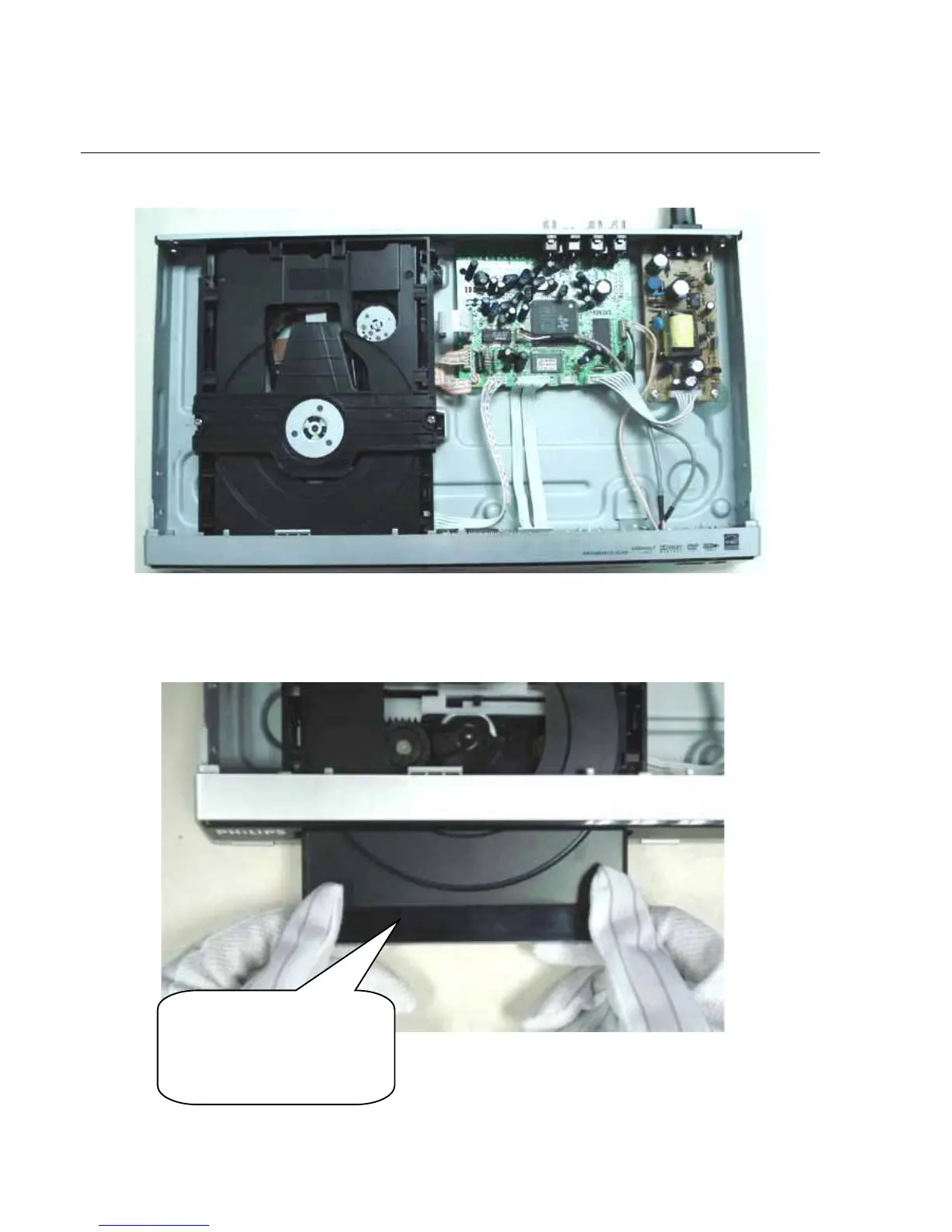

Step1: Remove 5 screws around the Top Cover, then remove the Top Cover (Figure 1).
Step2: If it is necessary to dismantle Loader or Front Panel, It should be remove the Front door assembly first. (Figure 2)
Note: Make sure to operate gently otherwise the guider would be damaged.
2-1
Figure 1
Figure 2
Please kindly note that dismantle
the front door assembly carefully
to avoid damage tray and the front
door assembly.
