FC6090

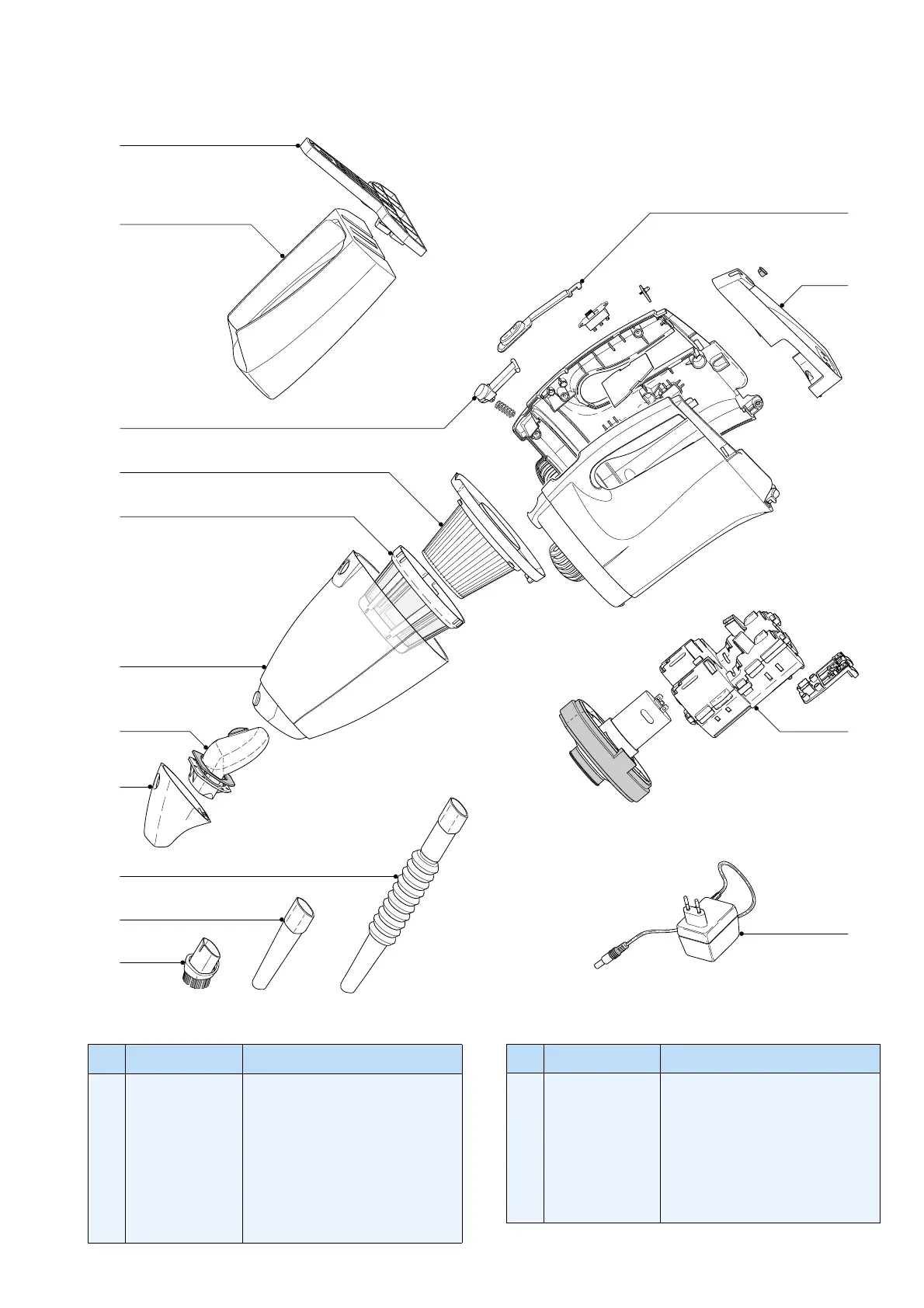

PARTS LIST & EXPLODED VIEW
2
5
4
3
7
1
8
11
10
9
6
15
13
14
12
Pos Service code Description
1
2
3
4
5
6
7
8
9965 000 36259
9965 000 36260
9965 000 36261
9965 000 36262
9965 000 36263
9965 000 36264
9965 000 36265
9965 000 36266
Wall mount
Charging base assy
Nozzle release button
Inner fi lter assy
Mesh fi lter assy
Dust case assy
Stream control assy
Nose piece
Pos Service code Description
9
10
11
12
13
14
15
9965 000 36267
9965 000 36268
9965 000 36269
9965 000 36270
9965 000 36271
9965 000 36272
9965 000 36273
Bendable crevice tool
Crevice tool
Small brush
Switch cover
Back plate assy
Battery pack 9.6 V
AC-DC charger 15 V
