Philips GC9920 - Stand Disassembly Advice - Part 2; Panel, Tray, and Steamer Assembly Removal; Iron and Boiler Chassis Disassembly

GC9920
11-19
PANEL RIGHT ASSY 25
REED SWITCH ASSY 29
IRON SLIDING TRAY ASSY 30
STEAMER ASSY 47
Remove screw S2
Remove screws T3, T4, T11, T12
Disassemble PANEL RIGHT ASSY 25
Disconnect quick-connector W10 on STAND
ELECTRONICS 37
Disassemble REED SWITCH ASSY 29
Release catch at bottom of IRON SLIDING TRAY
ASSY 30
Pull out completely IRON SLIDING TRAY ASSY 30
Remove T5, T6, T7, T8
Disassemble Boiler compartment
Disconnect steam hose of HOSE CORD STEAMER 48
on EV1
Disconnect steamer Earth & quick-connectors L2, N2,
W2 on STAND ELECTRONICS 37
Disassemble STEAMER ASSY 47
IRON ASSY 43
HOSE CORD IRON 46
Remove screw W
Disassemble Backplate
Disconnect quick-connectors of HOSE CORD IRON 46
at iron rear
Disassemble IRON ASSY 43
SOLEPLATE ASSY 44
IRON ELECTRONICS 45
Disassemble Inlay
Remove screws X1 - X3
Disassemble IRON ELECTRONICS 45
Remove screws Y1 - Y3
Disassemble Housing
Remove screws Z1 - Z3
Disassemble Cover
Disassemble SOLEPLATE ASSY 44
PANEL FRONT BOTTOM 26
WIRE ASSY
LED - RINSE TANK 40
WIRE ASSY
RINSE TANK SWITCH 42
CHASSIS BOILER ASSY 49
PUMP ASSY 50
ELECROVAVLE 51
Remove RINSE TANK ASSY 35
Disassemble PANEL FRONT BOTTOM

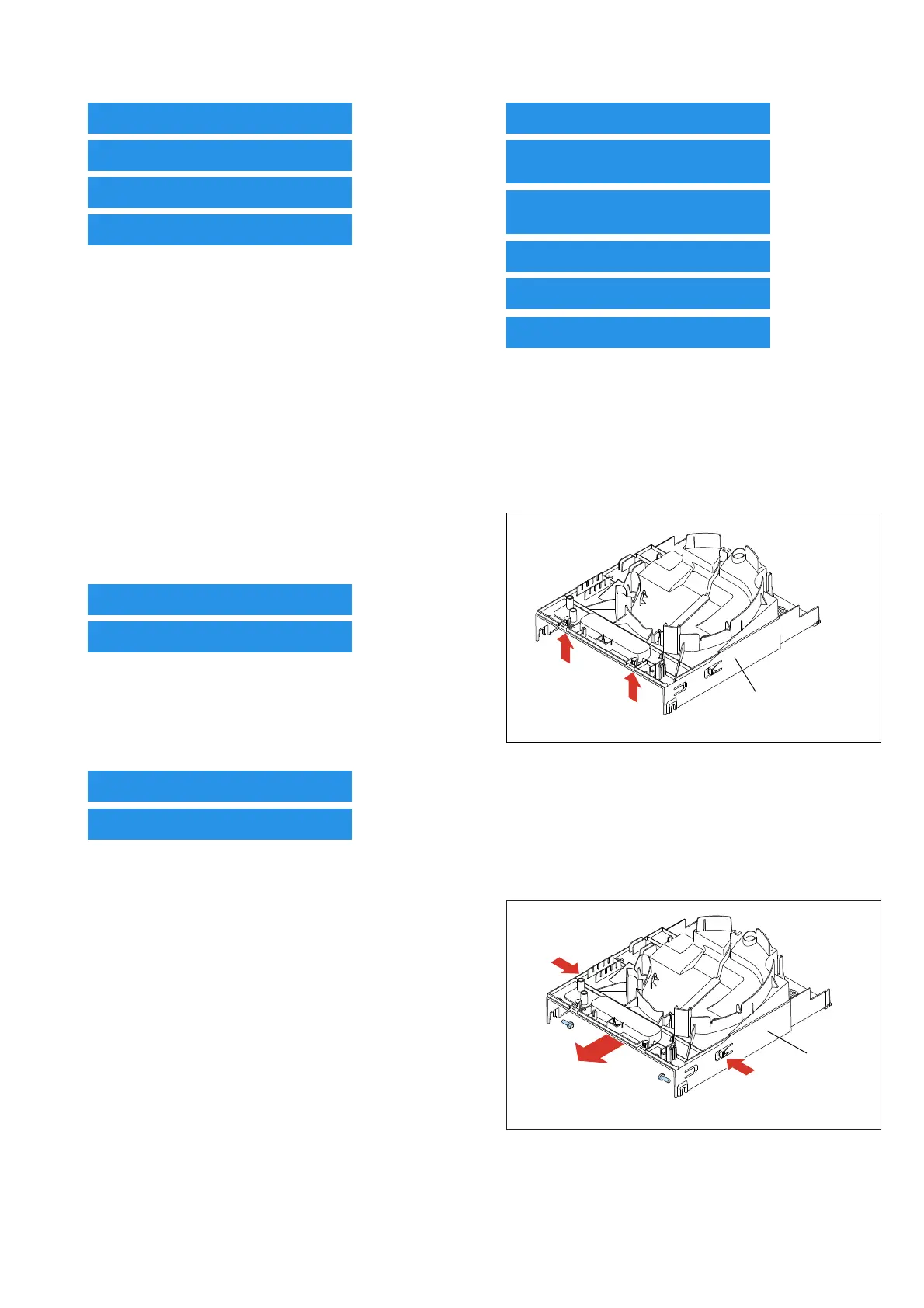

Disassembly tip:
Release 2x catches at the bottom of boiler chassis by inserting
2x screws (M4x8) into the holes located at Loc 2 & Loc 3
Refer following diagram.
Lock 2
Lock 3
Boiler chassis
Disconnect 3-pole cable W12 and 4-pole cable W13
Disconnect boiler Earth, W6, W9, W11
Disconnect steam hoses & connections on
ELECTROVALVE 51 (EV1, EV2, EV3)
Disconnect De-air tube, Inlet tube, Safety cap
Remove Screws a1 & a2
Release 2x catches at the Boiler chassis
Release
catch
Release
catch
Pull out
chassis
Boiler
chassis
a1
a2
Pull out CHASSIS BOILER ASSY 49
Disassemble WIRE ASSY LED - RINSE TANK 40
Disassemble WIRE ASSY RINSE TANK SWITCH 42
Disassemble PUMP ASSY 50
Disassemble ELECTROVALVE 51
DISASSEMBLY ADVICE - STAND
