HD4407

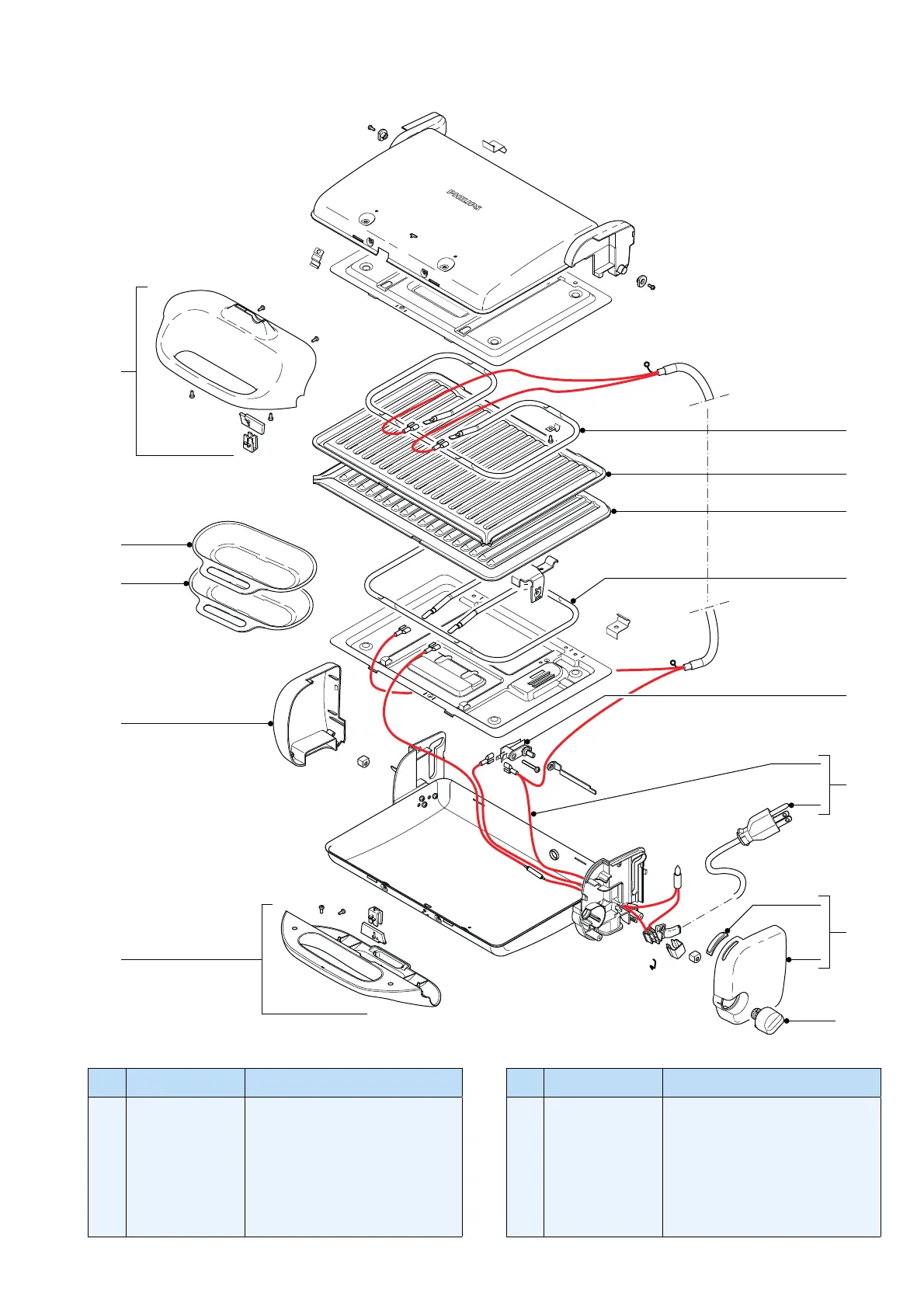

PARTS LIST & EXPLODED VIEW
1
5
5
6
6
10
3
2
2
7
8
4
9
Pos Service code Description
1
2
3
4
5
4222 459 45426
4222 459 45418
4222 459 45428
4222 459 45427
4222 459 45434
4222 459 45433
Upper handle assy
Grease tray
Left foot cover
Lower handle assy
Heating element 110 - 127 V
Heating element 220 - 240 V
Pos Service code Description
6
7
8
9
10
4222 459 45417
4222 459 45431
4222 459 45432
4222 459 45435
4222 459 45429
4222 459 45430
Heating Grill plate
Thermostat
Fuse, lamp, cords. assy 110-127 V
Fuse, lamp, cords. assy 220-240 V
Right foot cover assy
Printed thermostat knob
