DISSASEMBLY ADVICE

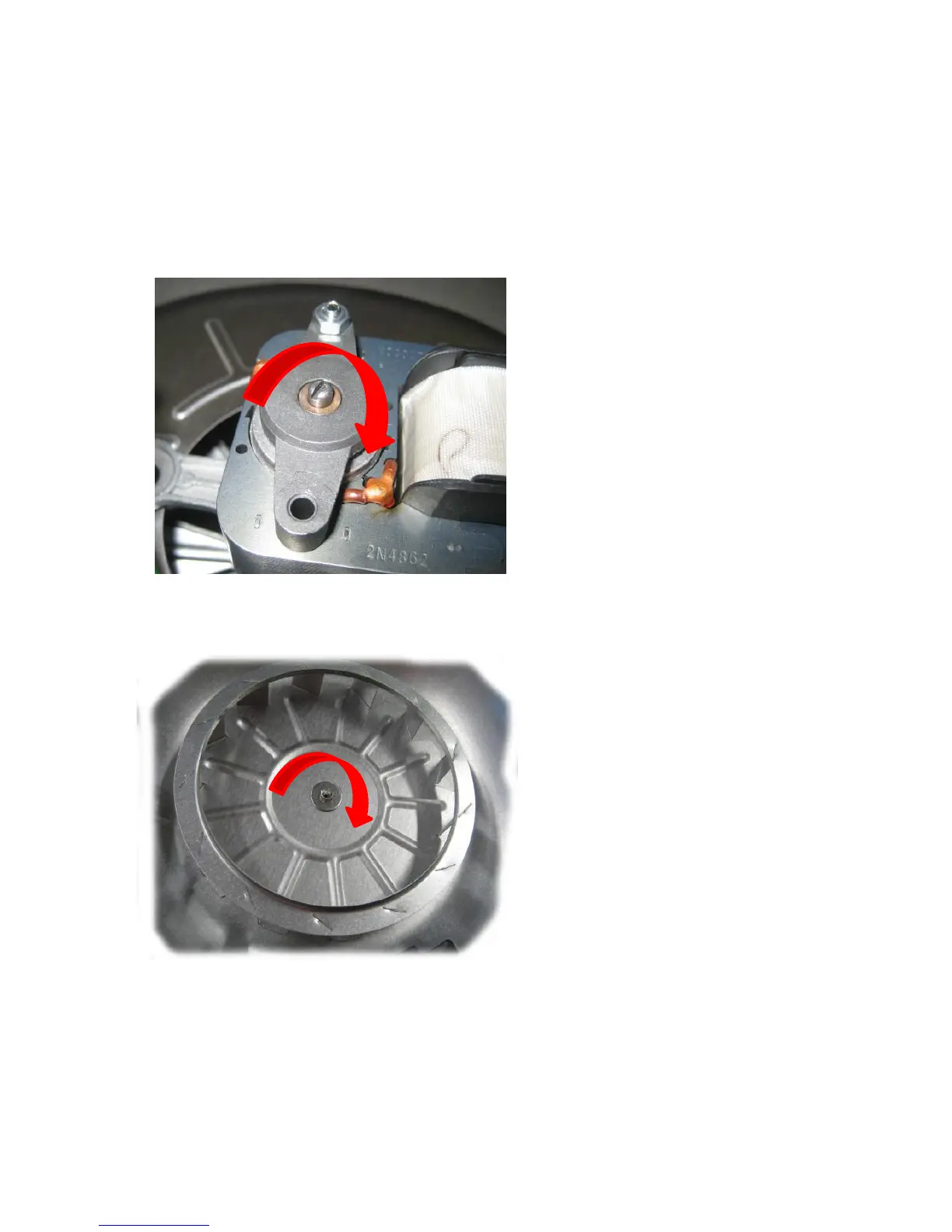

F. Motor/ventilator removal
1. turn the screw into the right side, hold the ventilator
2. turn the screw into the right side
HD9240/30
HD9240/31
HD9240/32
HD9240/33
HD9240/34
HD9240/35
HD9240/36
