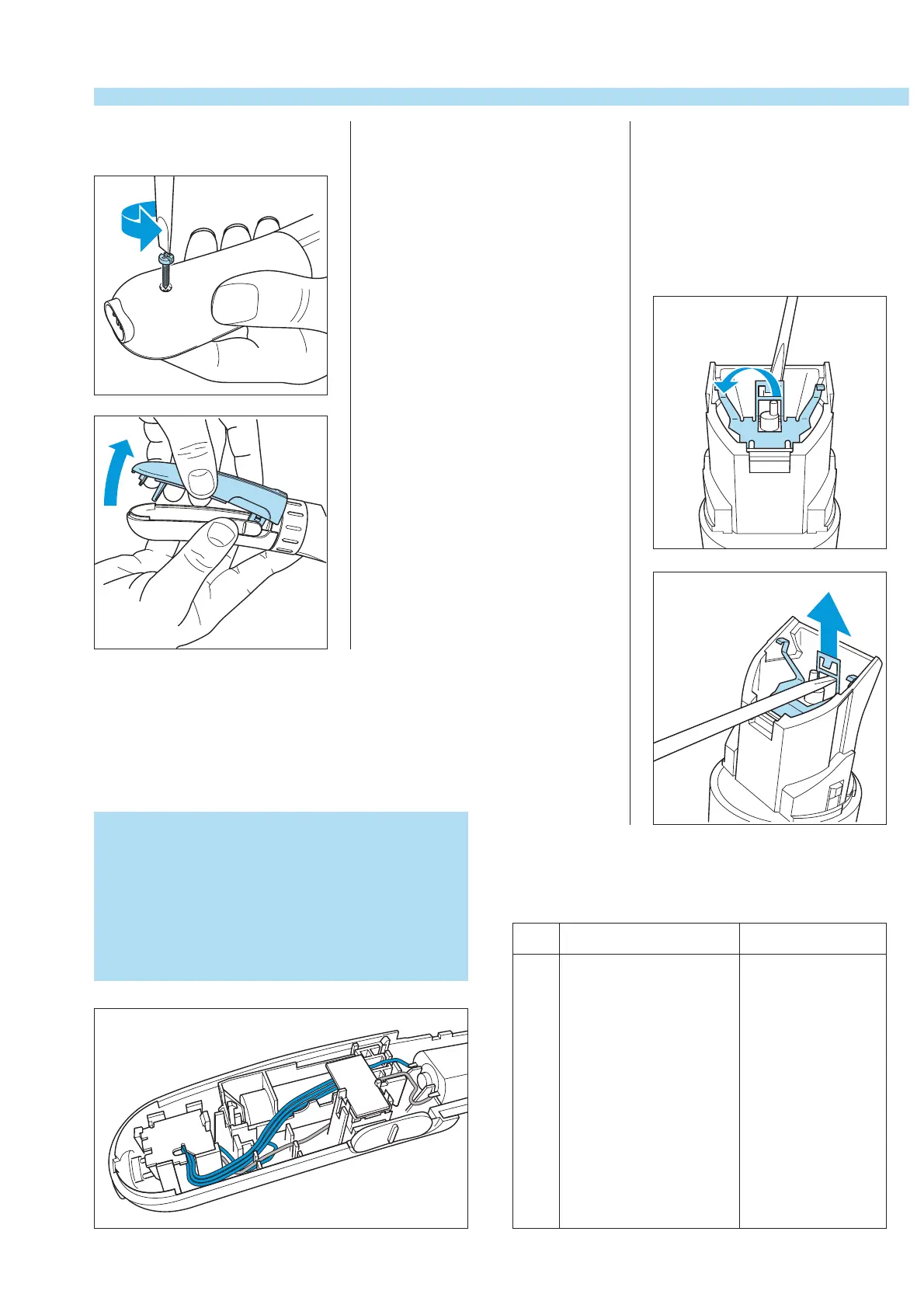

DISASSEMBLY ADVICE + PARTS LIST HQ-T 764
to replace ON / OFF KNOB (8)
remove SCREW A
COVER (7)
Never use again a deformed housing clamp (3).
Before reassembling the battery holder, make sure
that the internal wiring is guided as shown in fi gure 1.
After the product has been repaired, it should
function properly and has to meet the safety
requirements as laid down and offi cally established at
this moment.
to replace SPRING ZOOM RING (6)
remove COMB (1)
SCREW A
COVER (7)
COMB HOLDER (4)
ZOOM RING (5)
pos description service code
1 comb 4203 035 76450
2 cutter 4203 035 76420
3 housing clamp 4203 035 76410
4 comb holder 4203 035 76400
5 zoomring 4203 035 76350
6 spring zoom ring 4203 035 71380
7 cover 4203 035 76700
8 on/off knob 4203 035 76470
9 PCB 4203 035 76510
10 battery NiCd 4822 138 10336
11 cleaning brush 4822 479 30183
12 adapter NiCd USA 4203 035 76540
adapter NiCd CND 4203 035 76530
adapter NiCd EURO 4203 035 76520
adapter NiCd UK 4203 035 76550
to replace BATTERY (10)
PCB (9)
remove COMB (1)
CUTTER (2)
HOUSING CLAMP (3)
COMBHOLDER (4)
SCREW A
COVER (7)
ZOOM RING (5)
CAP B
fi gure 1
