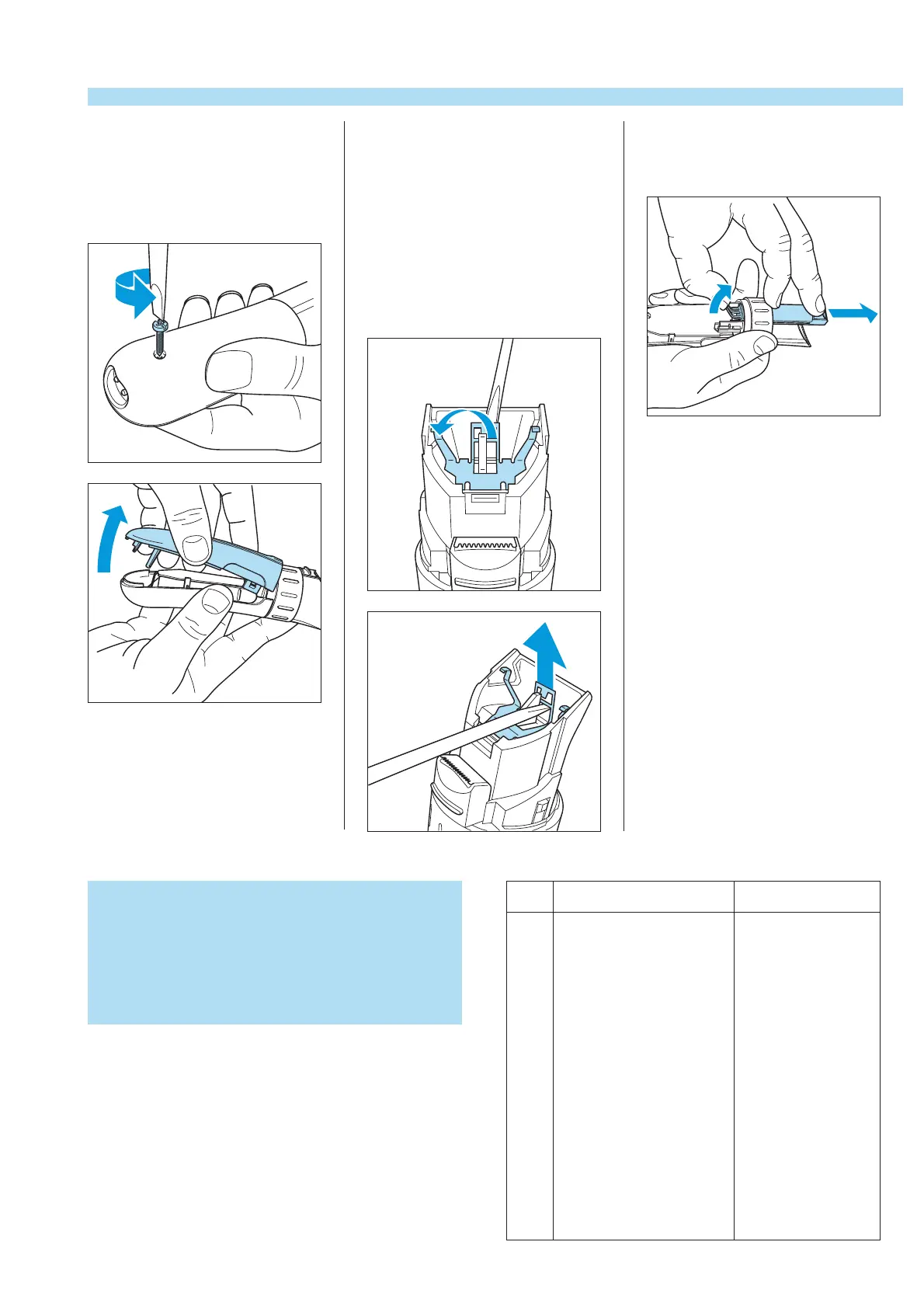

DISASSEMBLY ADVICE + PARTS LIST HQ-T 788
to replace SPRING ZOOM RING (6)
remove COMB (1)
SCREW A
COVER (7)
PROFILER (12)
COMB HOLDER (4)
ZOOM RING (5)
Never use again a deformed housing clamp (3).
After the product has been repaired, it should
function properly and has to meet the safety
requirements as laid down and offi cally established
at this moment.
to replace ON / OFF KNOB (8)
BATTERY (10)
PCB (9)
MOTION CONVERTER (11)
remove COMB (1)
CUTTER (2)
HOUSING CLAMP (3)
COMBHOLDER (4)
SCREW A
COVER (7)
ZOOM RING (5)
PROFILER (12)
CAP B
to replace PROFILER (12)
remove COMB (1)
SCREW A
COVER (7)
pos description service code
1 comb 4203 035 76430
2 cutter 4203 035 76420
3 housing clamp 4203 035 76410
4 comb holder 4203 035 76360
5 zoomring 4203 035 76350
6 spring zoom ring 4203 035 71380
7 cover 4203 035 76720
8 on/off knob 4203 035 76470
9 PCB 4203 035 76490
10 battery NiCd 4822 138 10336
11 motion converter 4203 035 76480
12 profi ler 4203 035 76460
13 cleaning brush 4822 479 30183
14 cord set (EURO) 4822 321 10095
cord set (UK) 4822 321 10096
cord set (CND) 4822 321 10097
cord set (AUS/NZ) 4822 321 10148
cord set (USA) 4822 321 10344
