Philips HQ7100 Service Manual

HQ7100

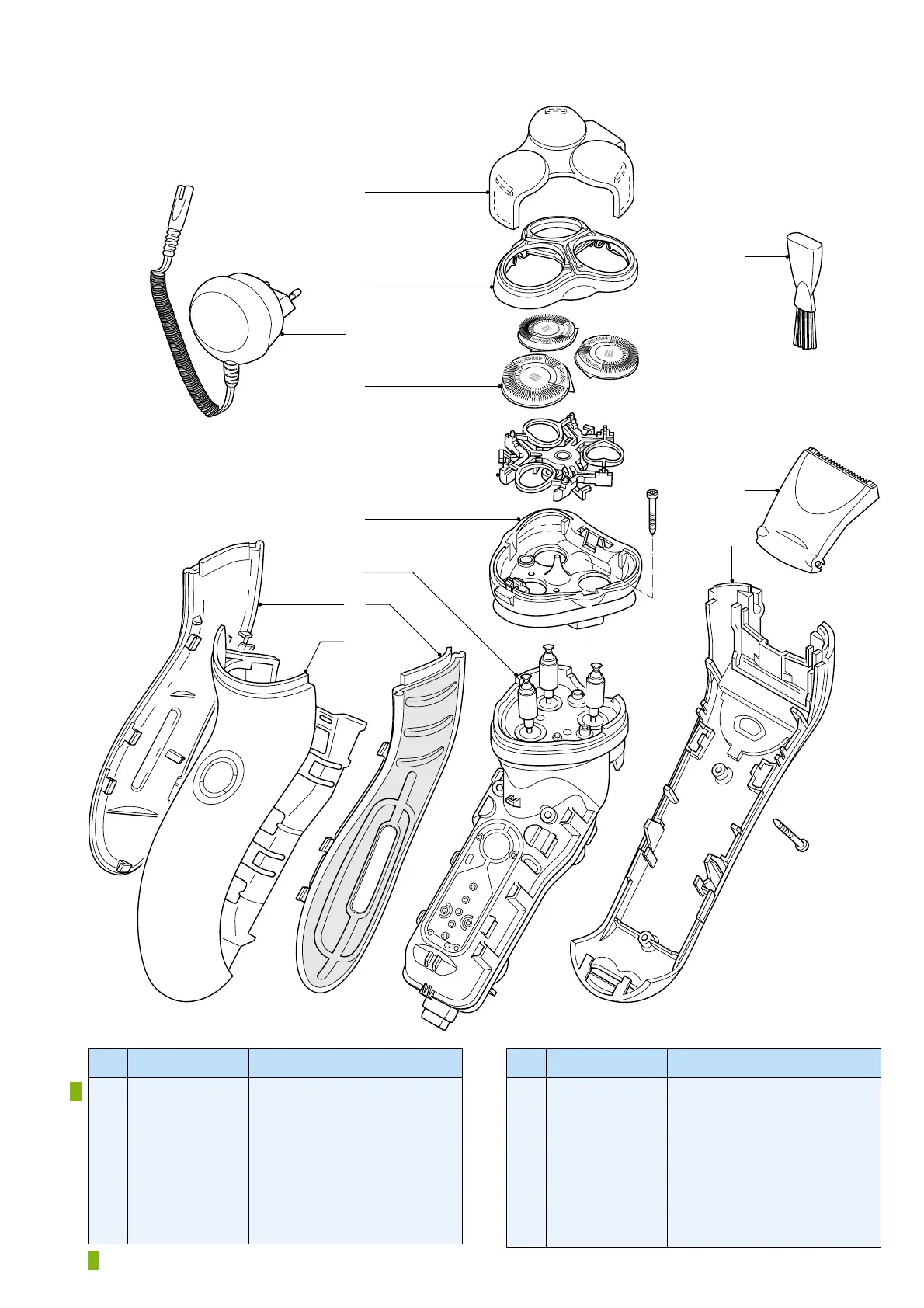

EXPLODED VIEW & PARTS LIST
3
7
B
11
10
12
1
2
4
5
8
9
6
A
Pos Service code Description
1
2
3
4
5
4222 036 14050
4222 036 12610
4222 036 06790
4222 036 03970
4222 036 04020
4222 036 06800
4222 036 05820
4222 036 12990
Protection cap Cheetah
Bracket-assy
Power plug EUR
Power plug GBR
Power plug AUS
Power plug Can/Tw/Ven
Shaving heads
Holder-assy
Pos Service code Description
6
7
8
9
10
11
12
4222 036 12640
4222 036 12780
4222 036 12570
4222 036 12460
4222 036 02770
4222 036 12220
4222 036 12680
4222 036 11480
Hairchamber
Basic body
Grip left & right
Housing-assy
Brush
Trimmer assy
Back shell assy
Screw
= changed

Philips HQ7100 Specifications

Shaving System

precision cutting system	yes
sensotec slots & holes	yes
super lift & cut technology	yes
reflex action system	yes
individually floating heads	yes
washable	yes
corrosion free heads	yes

Power System

mains	yes
automatic voltage selection	V100-240
