Philips HQ7120 Service Manual

HQ7120

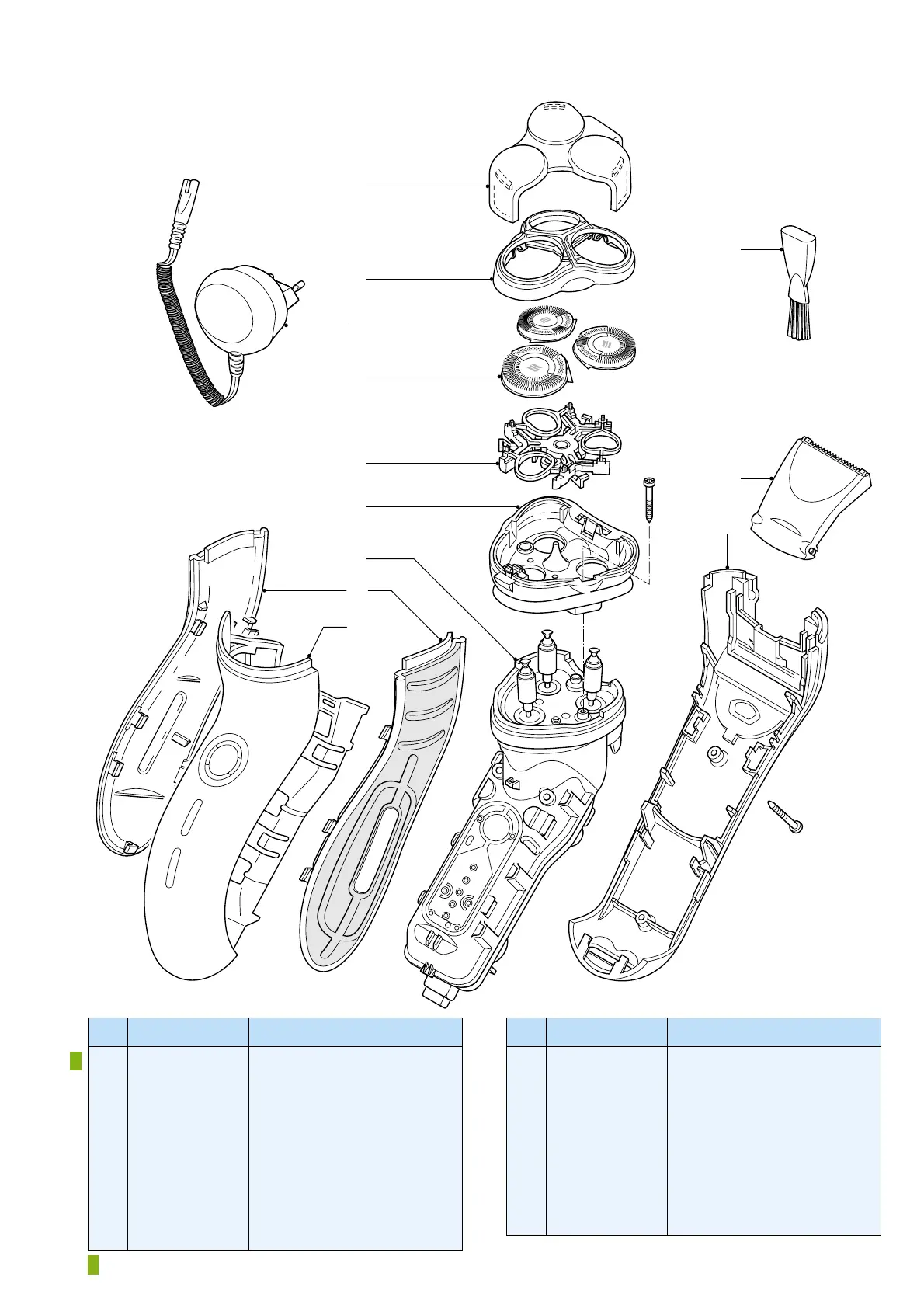

EXPLODED VIEW & PARTS LIST
3
7
B
11
10
12
1
2
4
5
8
9
6
A
Pos Service code Description
1
2
3
4
4222 036 14050
4222 036 12610
4222 036 06790
4222 036 03970
4222 036 04020
4222 036 04000
4222 036 04030
4222 036 04040
4222 036 06800
4222 036 05820
Protection cap Cheetah
Bracket-assy
Power plug EUR
Power plug GBR
Power plug AUS
Power plug KOR
Power plug MEX
Power plug PRC
Power plug Can/Tw/Ven
Shaving heads
Pos Service code Description
5
6
7
8
9
10
11
12
4222 036 12990
4222 036 12640
4222 036 12790
4222 036 12570
4222 036 12480
4222 036 02770
4222 036 12220
4222 036 12690
4222 036 11480
Holder-assy
Hairchamber
Basic body
Grip left & right
Housing-assy
Brush
Trimmer assy
Back shell assy
Screw
= changed

Philips HQ7120 Specifications

Power System

charging time	8 hours
shaving time	30 minutes
voltage	100-240 V

Electronic Features

battery low indication	Red
charge indication	Green
power LED	Green
