Service Hints
CAUTION:
CHARGED CAPACITORS ON THE SERVO BOARD MAY DAMAGE THE DRIVE
ELECTRONICS WHEN CONNECTING A NEW DRIVE. THAT`S WHY, BESIDES THE SAFETY
MEASURES LIKE
· SWITCH OFF POWER SUPPLY
· ESD PROTECTION
ADDITIONAL ACTIONS MUST BE TAKEN BY THE PERAIR TECHNICAN

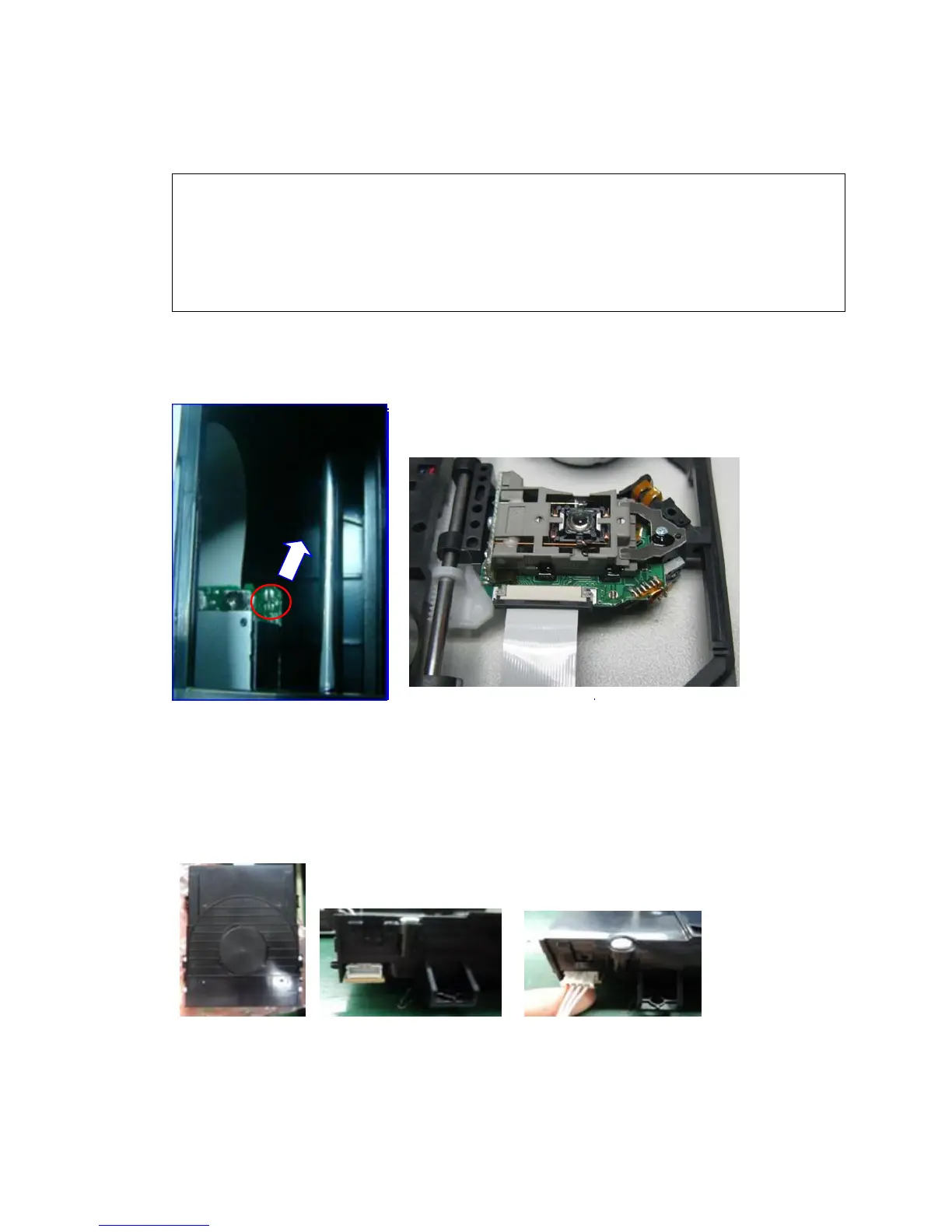

1. How to replace a defective loader?
Step1: Dismantling the loader to access the ESD protection point;
Step2: Remove the solder joint on the ESD protection point;
（NOTICE: REMOVE THE SOLDER JOINT AS THE WHITE ARROW DIRECTION
IN ABOVE PICTURE）
Step3: Connect the 4PIN cable with the base. (Figure 2/3)
Step4: Take a label (can be reused) to cover the pane to prevent dust and touching the
protection point (Figure 4)
1. Loader 2. 4pin base 3. Insert 4pin cable
1-9
