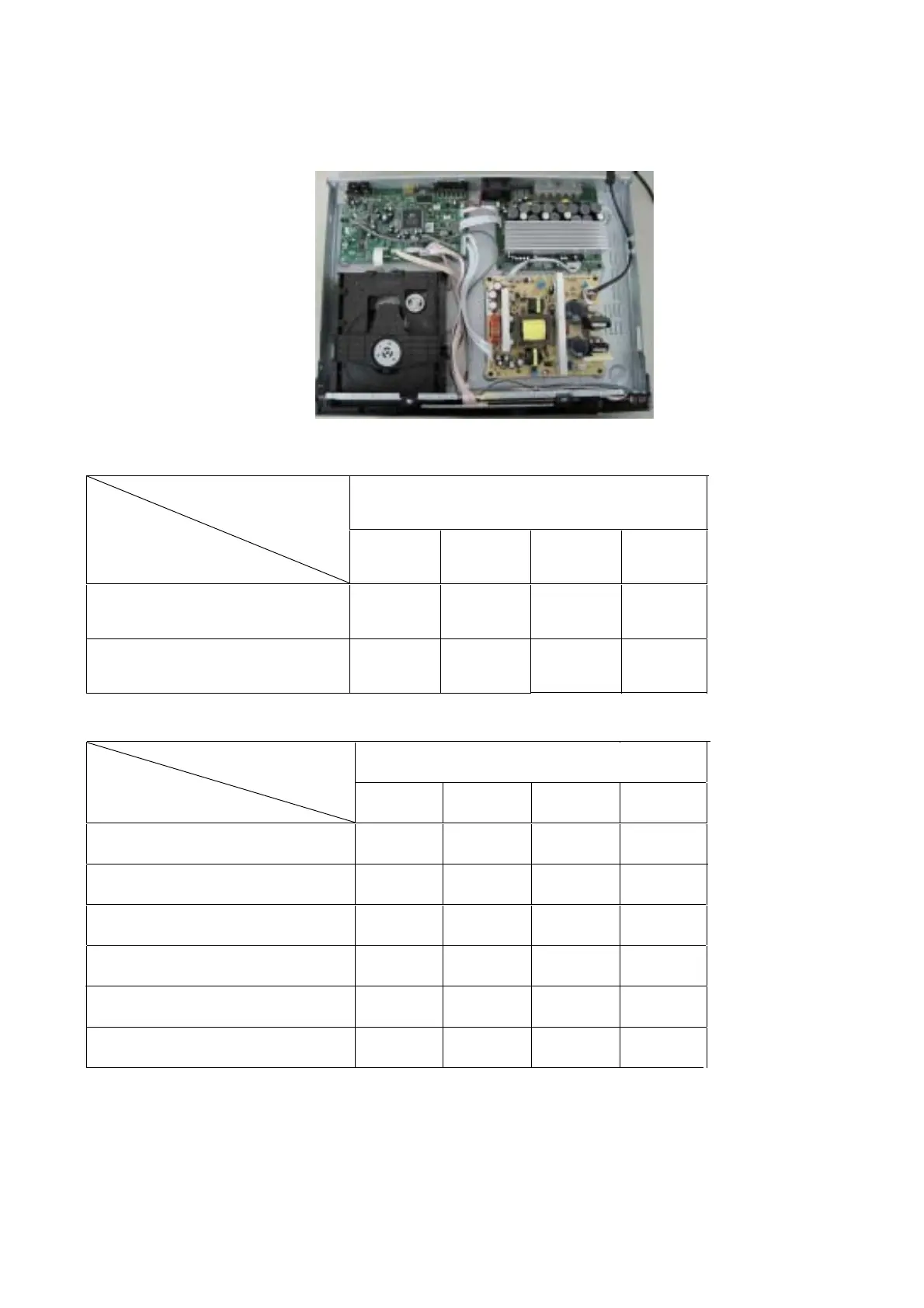

LOCATION OF PCB BOARDS：
Version Variation：
HTS5520
Type/Versions
Features
/12 /51 /93
Output Power-800W X X X
Voltage(220~240v) X X X
Repair Scenario Matrix：
Type/Versions
Board in used
/12 /51 /93
Main Board C C C
Front Control Board C C C
Amplifier Board C C C
Power Board C C C
Karaoke+USB Board C C C
Encoder Board C C C
*Bd:Board Level Replacement
*C:Component Level Repair
1-2
/94
X
X
HTS5520
/94
C
C
C
C
C
C
MAIN BOARD
LOADER
FRONT CONTROL
BOARD
POWER BOARD
AMPLIFIER
BOARD
KARAOKE+USB
BOARD
ENCODER
BOARD
