10-1110-11
3Disc Tray Changer

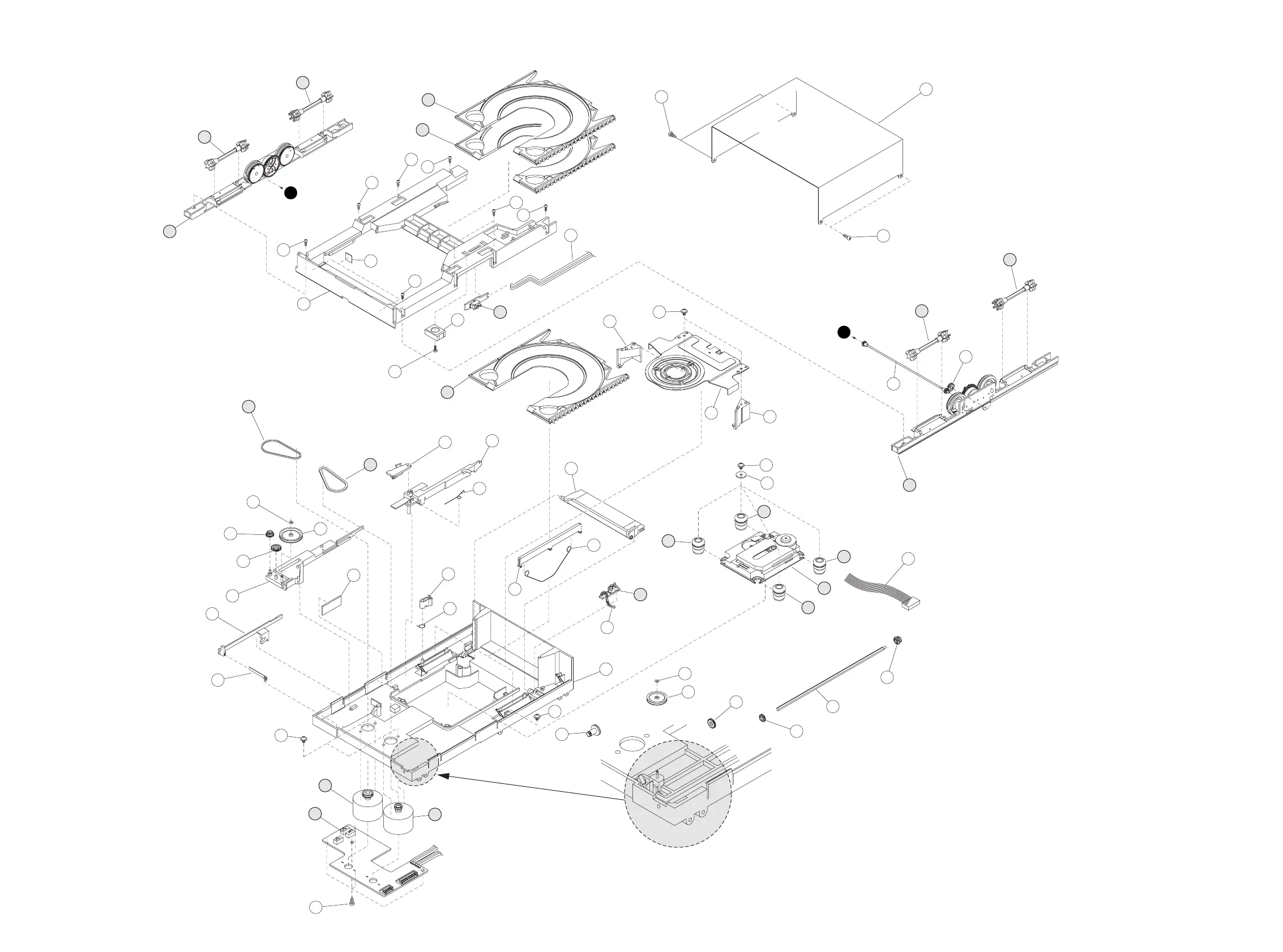

Exploded view
Exploded view 3DTC 2000 08 22
19
19
23
4
11
33
A
121
34
41
50
72
77
30
121
43
1
37
85
53
47
51
52
35
32
121
115
115
120
57
57
58
59
58
18
54
36
25
29
39
40
113
49
71
48
123
115
31
28
26
24
27
60
113
19
19
3
12
62
56
118
118
118
118
119
119
119
75
72
68
63
38
2
127
3x
A
MECHANICAL PARTS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3 9965 000 06538 ASSY HOLDER LEFT
4 9965 000 06539 ASSY HOLDER RIGHT
12 9965 000 06540 ASSY CARRIAGE 1 (TOP)
19 9965 000 06541 ASSY GEAR STAR
48 9965 000 06542 ASSY MOTOR CARRIAGE
49 9965 000 06543 ASSY MOTOR DRAWER
53 9965 000 06544 BELT DRAWER
54 9965 000 06545 BELT CARRIAGE
57 9965 000 06546 DAMPER RUBBER REAR
58 9965 000 06547 DAMPER RUBBER FRONT
59 9305 022 30103 CD DRIVE VAM2201/03
62 9965 000 06548 ASSY CARRIAGE 2 (MIDDLE)
63 9965 000 06549 ASSY CARRIAGE 3 (BOTTOM)
71 4822 277 11652 SWITCH (SW6-SW8)
72 9965 000 06550 SWITCH (SW2-SW5)
3103 309 05250 3DTC CMCJ-01-13 (1xSPEED)
Complete Mechanic - CD Drive already included
