11-2
11-2

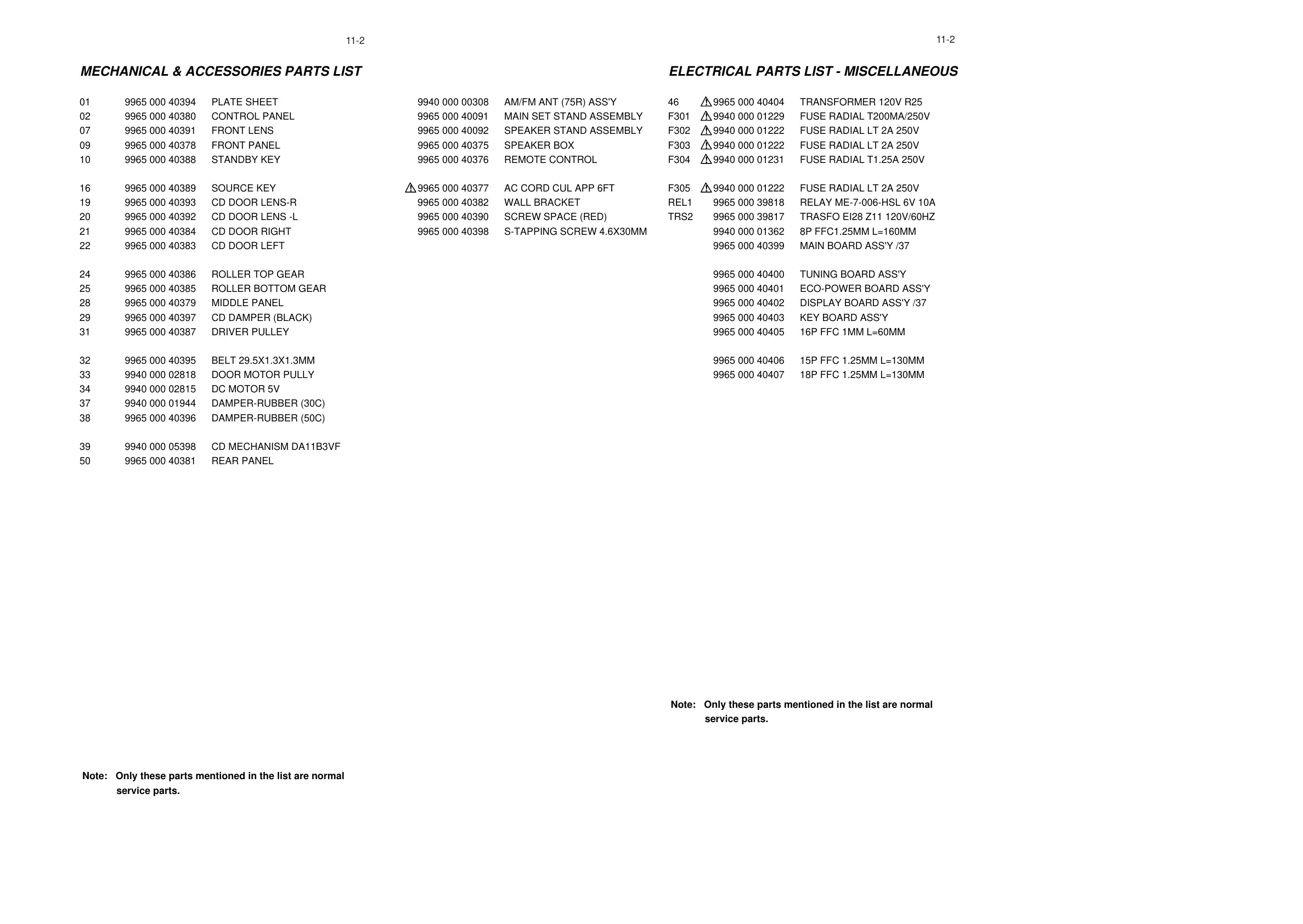

MECHANICAL & ACCESSORIES PARTS LIST
01 9965 000 40394 PLATE SHEET 9940 000 00308 AM/FM ANT (75R) ASS'Y
02 9965 000 40380 CONTROL PANEL 9965 000 40091 MAIN SET STAND ASSEMBLY
07 9965 000 40391 FRONT LENS 9965 000 40092 SPEAKER STAND ASSEMBLY
09 9965 000 40378 FRONT PANEL 9965 000 40375 SPEAKER BOX
10 9965 000 40388 STANDBY KEY 9965 000 40376 REMOTE CONTROL
16 9965 000 40389 SOURCE KEY
! 9965 000 40377 AC CORD CUL APP 6FT
19 9965 000 40393 CD DOOR LENS-R 9965 000 40382 WALL BRACKET
20 9965 000 40392 CD DOOR LENS -L 9965 000 40390 SCREW SPACE (RED)
21 9965 000 40384 CD DOOR RIGHT 9965 000 40398 S-TAPPING SCREW 4.6X30MM
22 9965 000 40383 CD DOOR LEFT
24 9965 000 40386 ROLLER TOP GEAR
25 9965 000 40385 ROLLER BOTTOM GEAR
28 9965 000 40379 MIDDLE PANEL
29 9965 000 40397 CD DAMPER (BLACK)
31 9965 000 40387 DRIVER PULLEY
32 9965 000 40395 BELT 29.5X1.3X1.3MM
33 9940 000 02818 DOOR MOTOR PULLY
34 9940 000 02815 DC MOTOR 5V
37 9940 000 01944 DAMPER-RUBBER (30C)
38 9965 000 40396 DAMPER-RUBBER (50C)
39 9940 000 05398 CD MECHANISM DA11B3VF
50 9965 000 40381 REAR PANEL
Note: Only these parts mentioned in the list are normal
service parts.
ELECTRICAL PARTS LIST - MISCELLANEOUS
46 ! 9965 000 40404 TRANSFORMER 120V R25
F301
! 9940 000 01229 FUSE RADIAL T200MA/250V
F302
! 9940 000 01222 FUSE RADIAL LT 2A 250V
F303
! 9940 000 01222 FUSE RADIAL LT 2A 250V
F304
! 9940 000 01231 FUSE RADIAL T1.25A 250V
F305
! 9940 000 01222 FUSE RADIAL LT 2A 250V
REL1 9965 000 39818 RELAY ME-7-006-HSL 6V 10A
TRS2 9965 000 39817 TRASFO EI28 Z11 120V/60HZ
9940 000 01362 8P FFC1.25MM L=160MM
9965 000 40399 MAIN BOARD ASS'Y /37
9965 000 40400 TUNING BOARD ASS'Y
9965 000 40401 ECO-POWER BOARD ASS'Y
9965 000 40402 DISPLAY BOARD ASS'Y /37
9965 000 40403 KEY BOARD ASS'Y
9965 000 40405 16P FFC 1MM L=60MM
9965 000 40406 15P FFC 1.25MM L=130MM
9965 000 40407 18P FFC 1.25MM L=130MM
Note: Only these parts mentioned in the list are normal
service parts.
