Mounting
Fixing

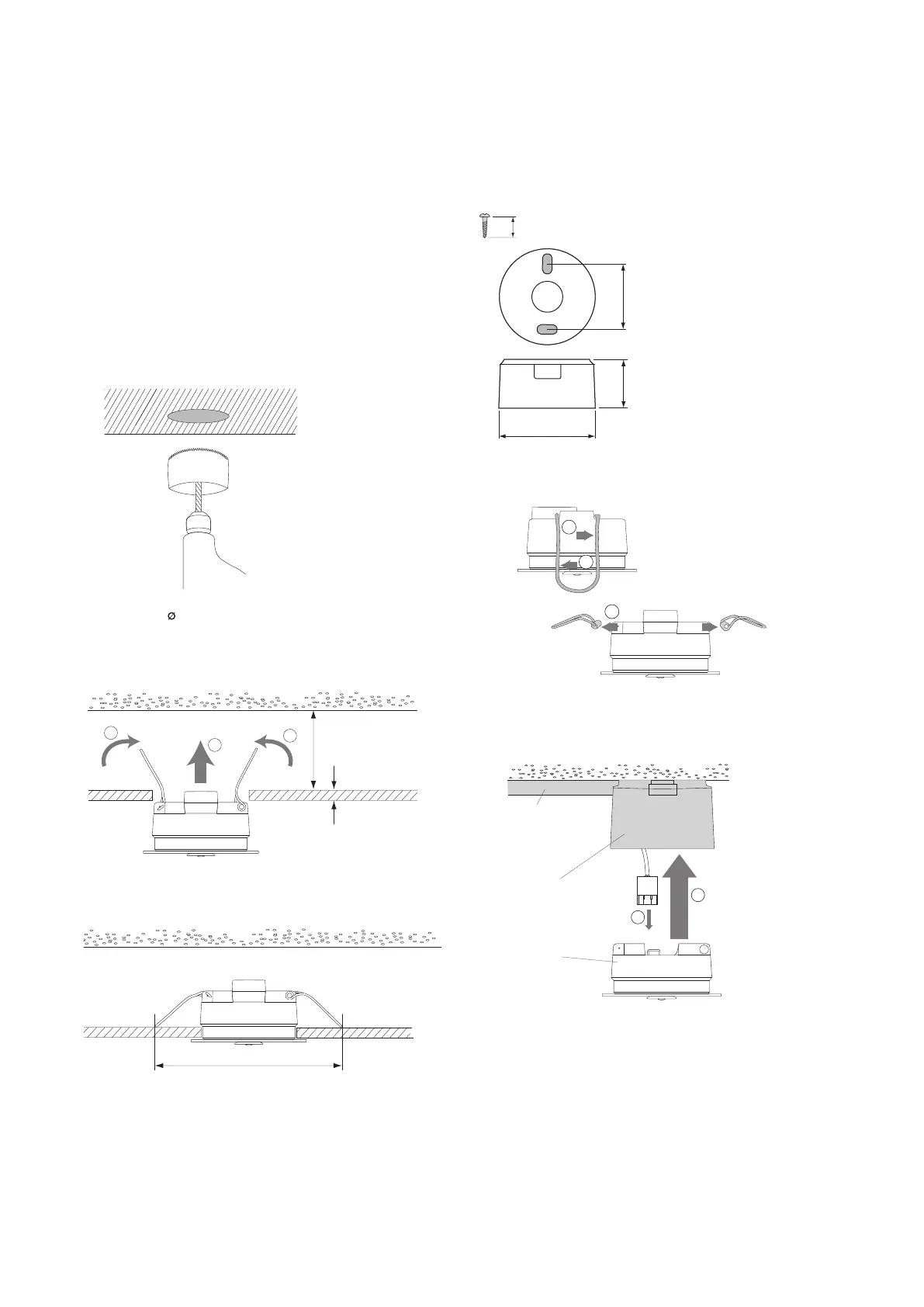

The OccuSwitch can be mounted in two ways;
recessed in the ceiling or surface-mounted using
the ceiling box.
The ceiling box (LRH1070) has breakout ports for
cable ducts and a breakout centrepiece.
When selecting a location for the OccuSwitch, avoid
obvious cold spots so that condensation does not
occur.
Fixing the OccuSwitch in a ceiling (recessed)
Fixing the OccuSwitch on a ceiling
(surface-mounted)
80-82 mm
> 50 mm
≤ 30 mm
1
1
2
max. 185 mm
No. 8 (Ø 4 mm)
35
Ø 95 mm (3.74 in)
51.5 mm
(2.03 in)
56 .. 66 mm
(2.20 .. 2.60 in)
3
1
2
4
5
22 x 10 mm
25 x 13 mm
25 x 16 mm
16 x 16 mm
LRH1070
LRM1070
LRM1080
3
1
2
4
5
22 x 10 mm
25 x 13 mm
25 x 16 mm
16 x 16 mm
LRH1070
LRM1070
LRM1080
