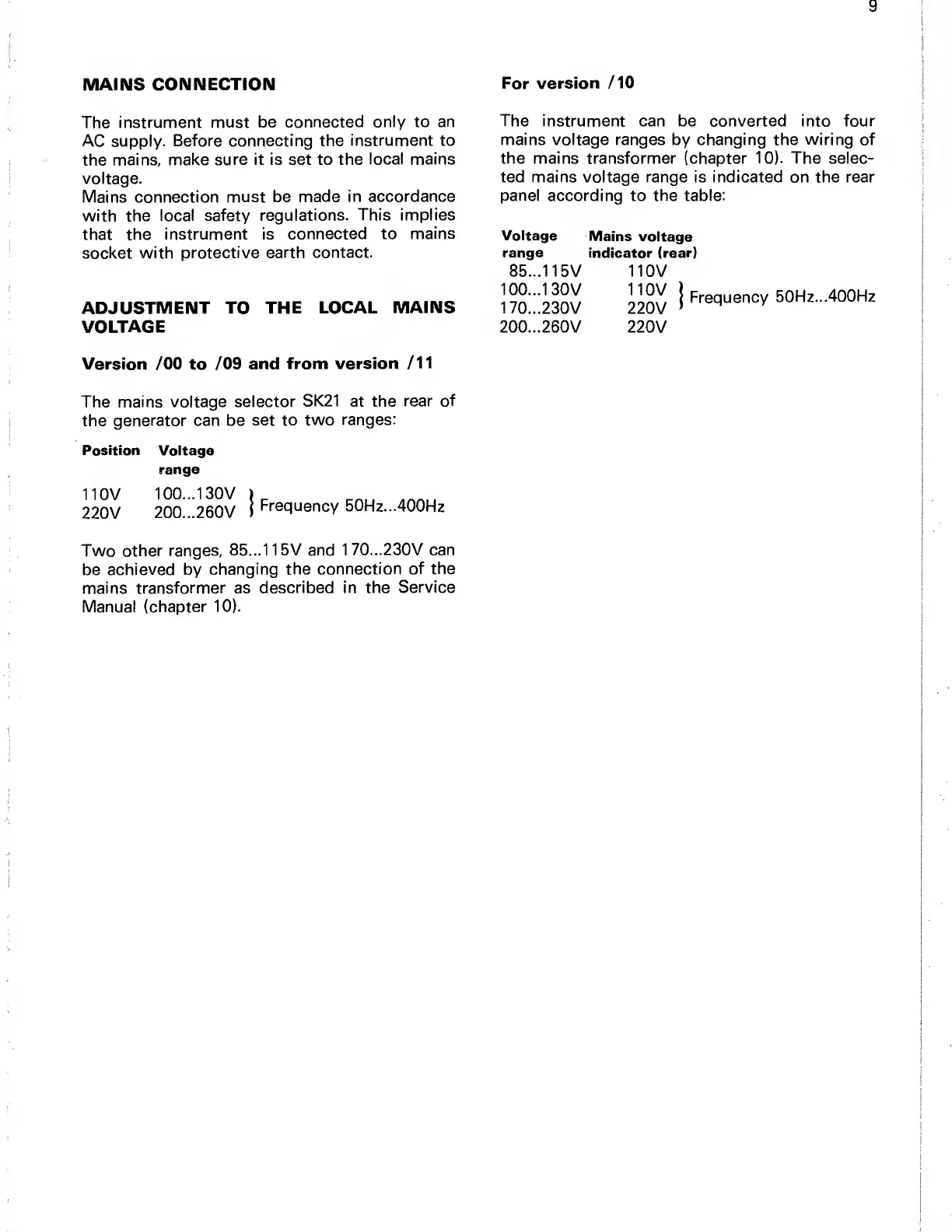

Philips PM 5715 - Page 9

9
MAINS CONNECTION
For
version
/10
The
instrument
must be connected
only to an
AC supply.
Before connecting the
instrument to
the
mains, make
sure it is set to the
local mains
voltage.
Mains connection
must be
made in accordance
with the
local safety
regulations. This
implies
that the
instrument is
connected to
mains
socket
with protective
earth contact.
ADJUSTMENT TO
THE LOCAL
MAINS
VOLTAGE
The instrument can be converted into four
mains voltage ranges by changing the wiring of
the mains transformer (chapter 10). The selec-
ted mains voltage range is indicated on the rear
panel according to the table:
voltage
Mains
voltage
range
indicator
(rear)
85...
115V 110V
100..
.130V 110V
1
70...230V
220V
200...260V
220V
I
Frequency
50Hz...400Hz
Version /OO
to
/09 and
from version
/II
The
mains voltage
selector
SK21
at the
rear of
the
generator can be
set to two
ranges:
Position
Voltage
range
110V
100.. .130V )
220V
200...260V
I
Frequency
50Hz...400Hz
Two other
ranges,
85... 115V and
170. ..230V can
be achieved
by changing the
connection
of
the
mains transformer as
described in
the Service
Manual
(chapter
10).
