18

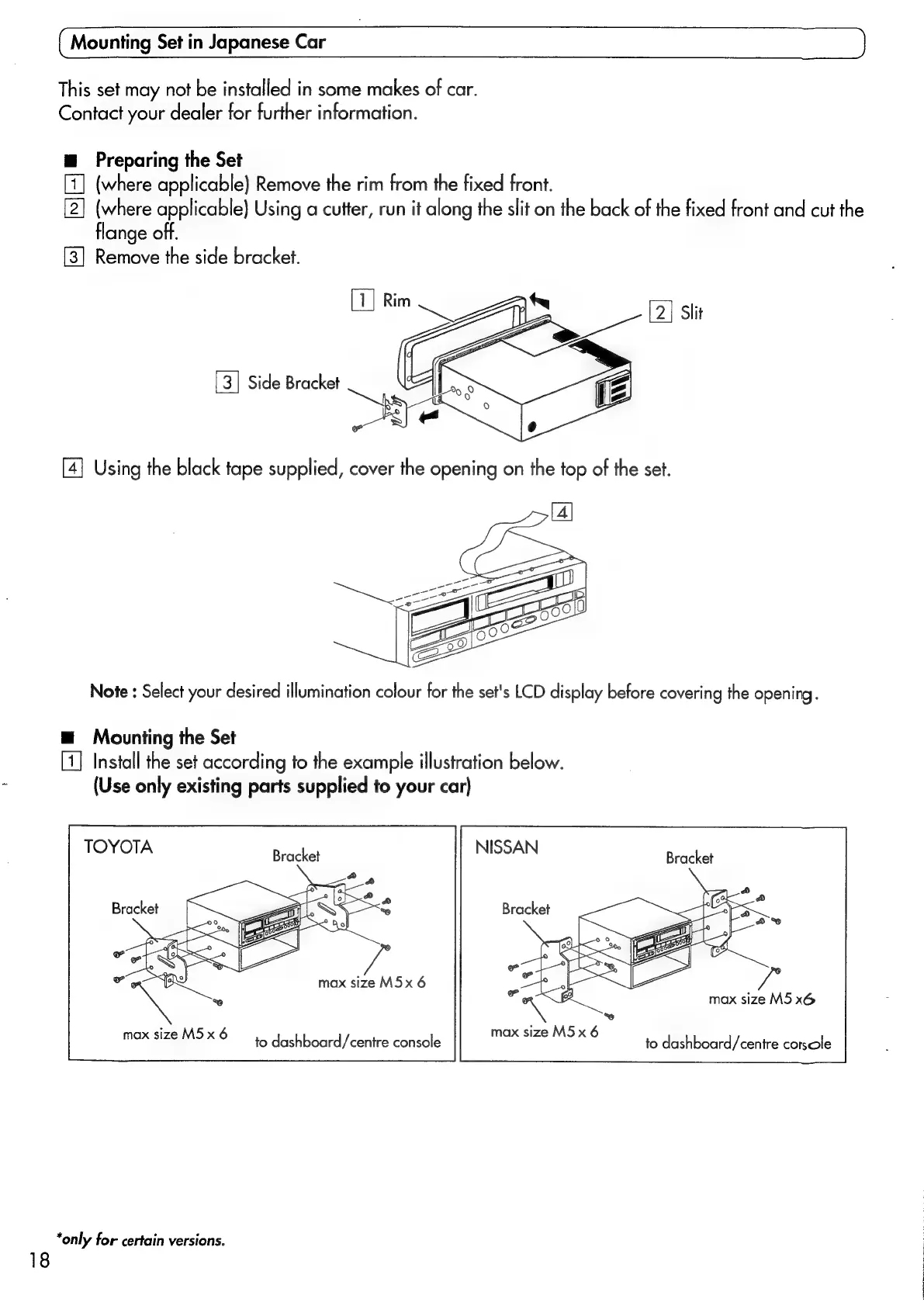

Mounting
Set
in
Japanese
Car
This
set
may
not
be
installed
in
some
makes
of
car.
Contact
your
dealer
for
further
information.
m
Preparing
the
Set
(where
applicable)
Remove
the
rim
from
the
fixed
front.
(where
applicable)
Using
a
cutter,
run
it
along
the
slit
on
the
back
of
the
fixed
front
and
cut
the
flange
off.
Remove
the
side
bracket.
[2]
Slit
Note
:
Select
your
desired
illumination
colour
for
the
set's
LCD
display
before
covering
the
opening.
m=
Mounting
the
Set
Install
the
set
according
to
the
example
illustration
below.
(Use
only
existing
parts
supplied
to
your
car)
TOYOTA
Bracket
NISSAN
Bracket
Bracket
max
size
M5
x6
max
size
M5
x
6
max
size
M5x
6
to
dashboard/centre
console
to
dashboard/centre
corsole
*only
for
certain
versions.
