AXC 1050 (XC)
138
PHOENIX CONTACT 8482_en_03
9.4.4 "WebVisu" area
This area contains a link that you can use to open the WebVisit project of the controller.
• Click the "WebVisu" link.

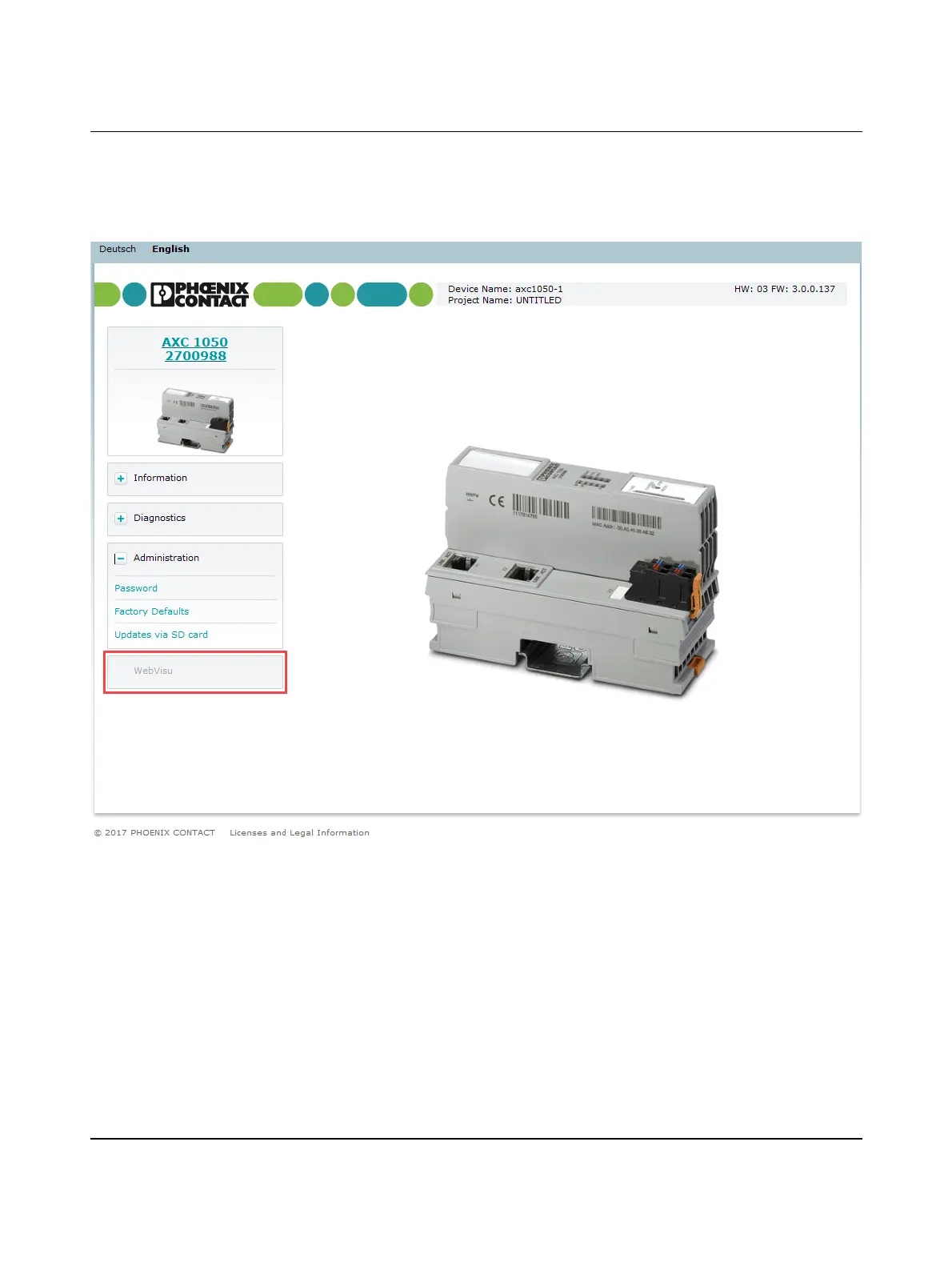

Figure 9-12 "WebVisu" link
If there is a WebVisit project on the controller, the visualization project is opened in the
browser.
Proceed as follows to switch back from the visualization project to the WBM within the
browser:
• In the address field of the browser, enter the URL "http://IP address of the control-
ler/wbm"
(example: http://192.168.0.2/wbm).
The WBM opens.
