3.10.2 Service interface (Micro-USB type B)
In addition to providing the Ethernet interface, the service interface enables communication
with the controller from a PC. Via the interface you can, for example, assign the IP address
of the controller using the PC Worx software, access the controller using the Diag+ software
or configure an Axioline F station using the Startup+ software.
A connecting cable is required for direct connection of the PC Worx controller to a PC via
the service interface.
The service interface (2) is located beneath the marking field (1) on the controller.

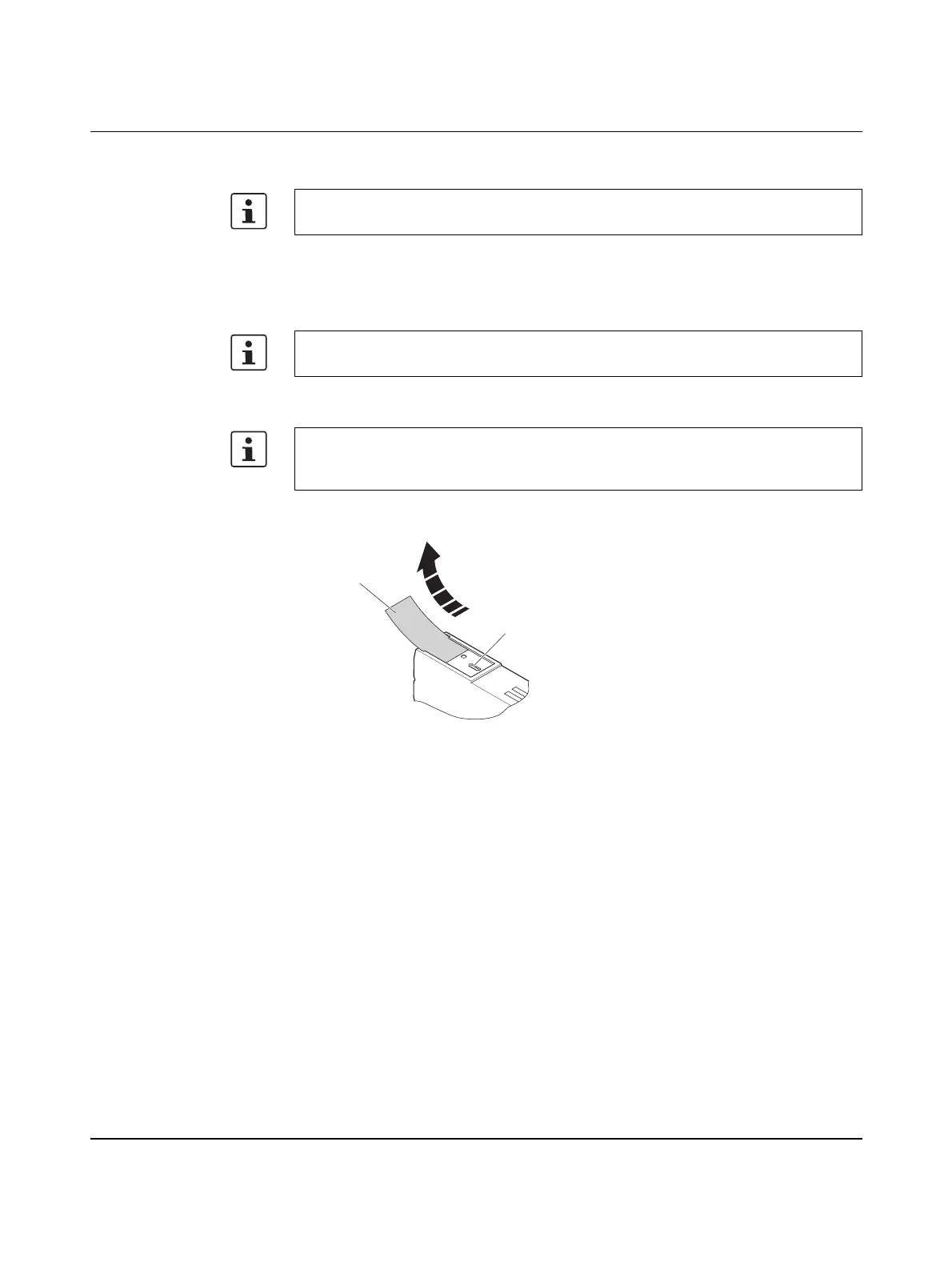

Figure 3-13 Service interface
In order to use the service interface of the controller, the "Phoenix Contact USB to UART
Interface" driver must be installed (see Section Section 6.1).
The controller cannot be programmed via the service interface.
Ordering data:
Connecting cable for connecting the controller to a PC with PC Worx, 2 m in length
(CAB-USB A/MICRO USB B/2,0M, Order No. 2701626).
