6.4 Reading Axioline F
• In the "Bus Structure" window, select "Axioline" below the controller.
• Right-click to open the context menu and select "Read Axioline".

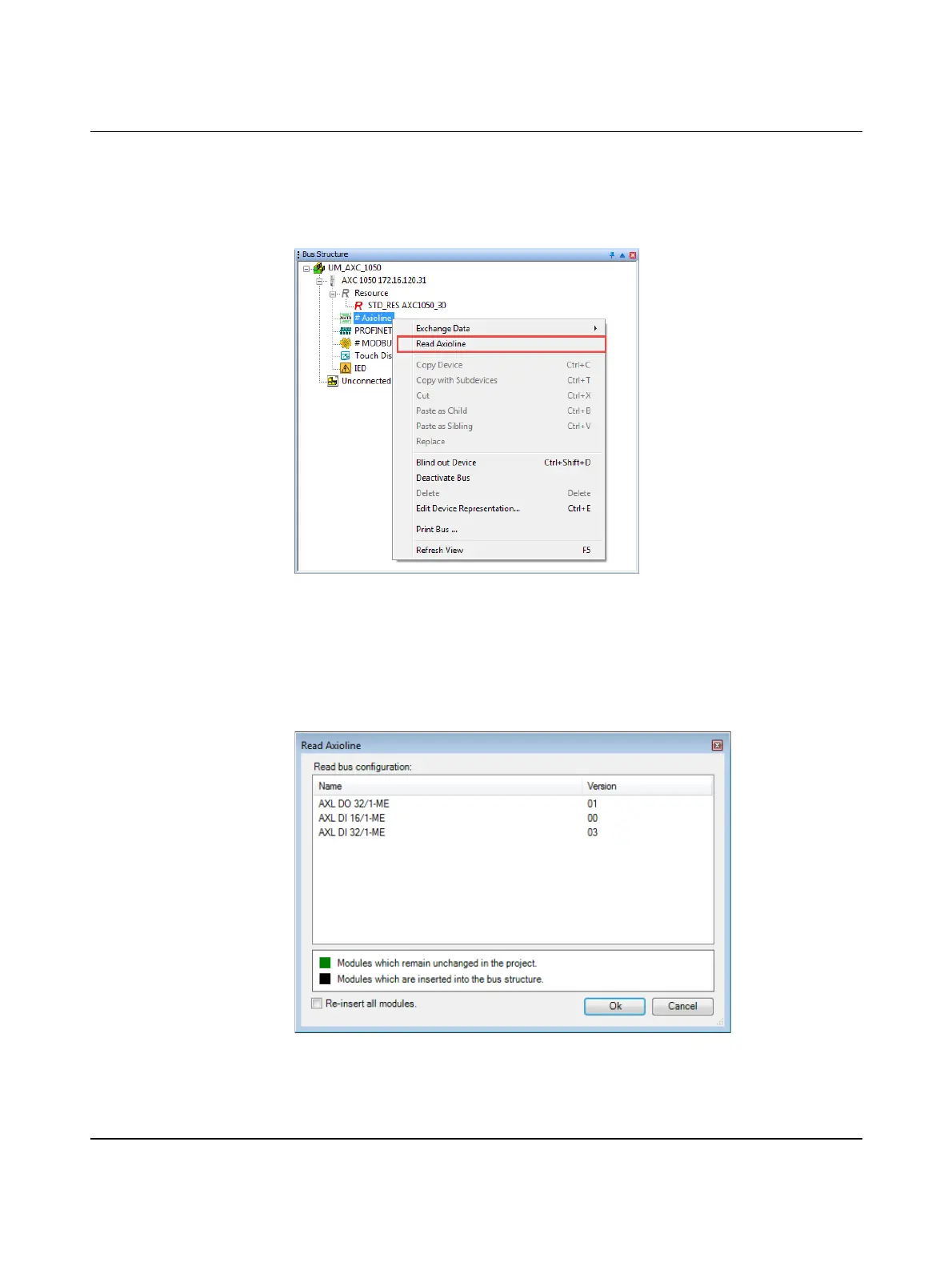

Figure 6-18 "Read Axioline" option
All Axioline F modules connected to the controller are displayed in the "Read Axioline" dia-
log that opens. Modules marked in black text have not yet been read into the
PC Worx (Express) project; modules marked in green text have already been configured
and remain unchanged even after another read process. When the "Re-insert all modules"
check box is activated, modules that have already been configured are also read again. The
previously configured bus structure is overwritten.
Figure 6-19 "Read Axioline" dialog: Axioline F modules that have not yet been read in
