Description of the RFC 4072S
108580_en_02 PHOENIX CONTACT 39 / 272
2.4 Indicators, interfaces, and operating elements

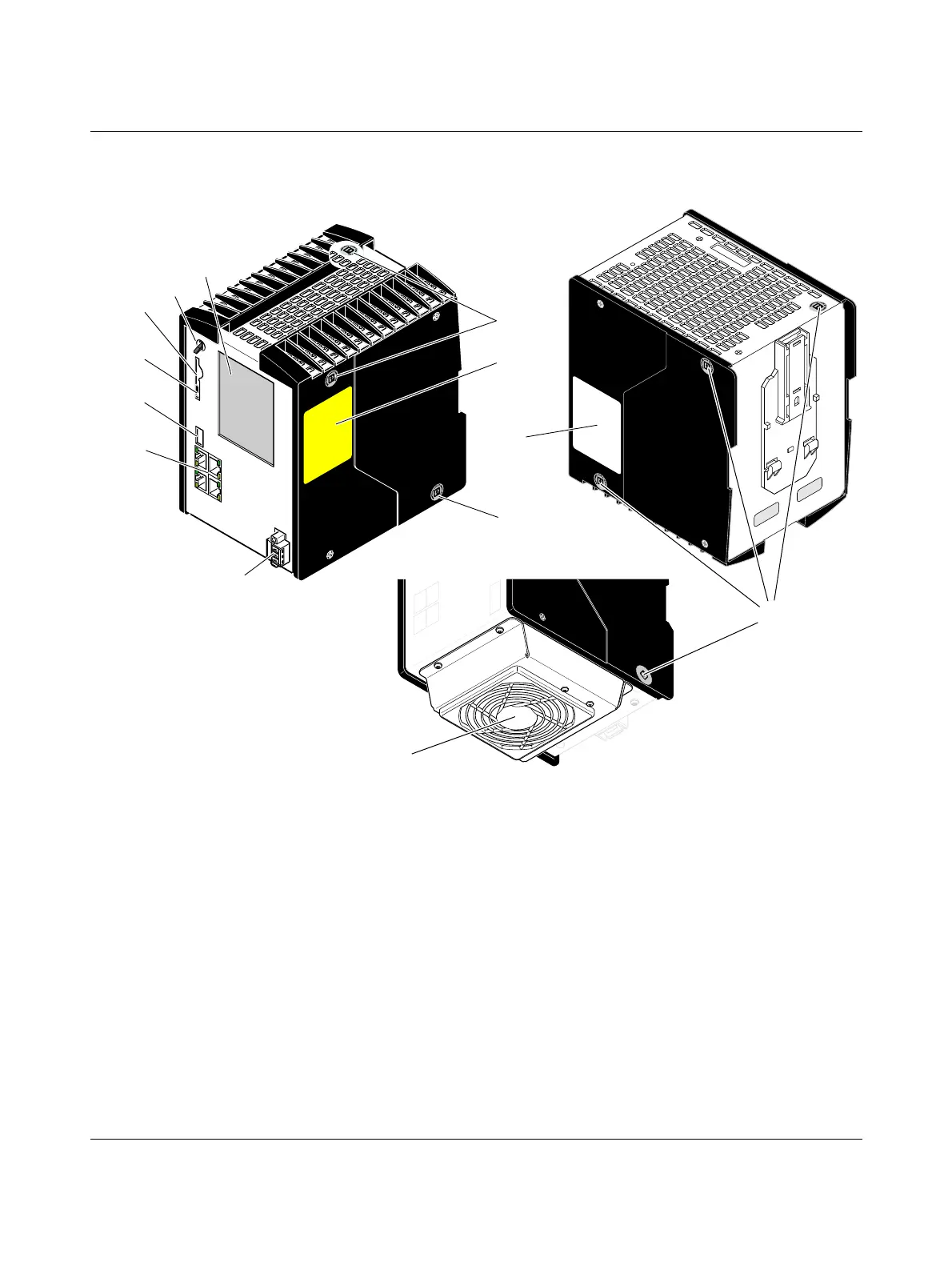

Figure 2-9 Structure of the RFC 4072S Remote Field Controller including fan module
Key:
1 Touch screen display
2 Mode selector switch
3 Slot for the parameterization memory/card holder (SD card)
4 Ejector for the parameterization memory
5 USB interface (type A USB 3.0 socket)
6 Ethernet interfaces (RJ45 sockets; LAN1/LAN2: 10/100/1000 Mbps; LAN3.1/LAN3.2
(switched internally): 10/100 Mbps)
7 Connection for external supply voltage (24 V DC)
8 Security seal
9 Test marks and revision status (hardware/firmware of iSPNS 3000)
10 Fan module (optional)
11 Label with revision status of the standard controller, MAC addresses and serial number
of the RFC as well as the user name and password for user authentication
108580A010
1
2
3
8
9
4
5
8
6
y
e
a
w
r
r
e
n
t
r
f
m
v
d
v
o
i
d
i
o
e
8
10
7
11
