RFC 4072S
42 / 272
PHOENIX CONTACT 108580_en_02
2.7 Status and diagnostics indicators (Ethernet)
The LNK and ACT LEDs indicate the status of the Ethernet interface. The LEDs have the
following meaning:

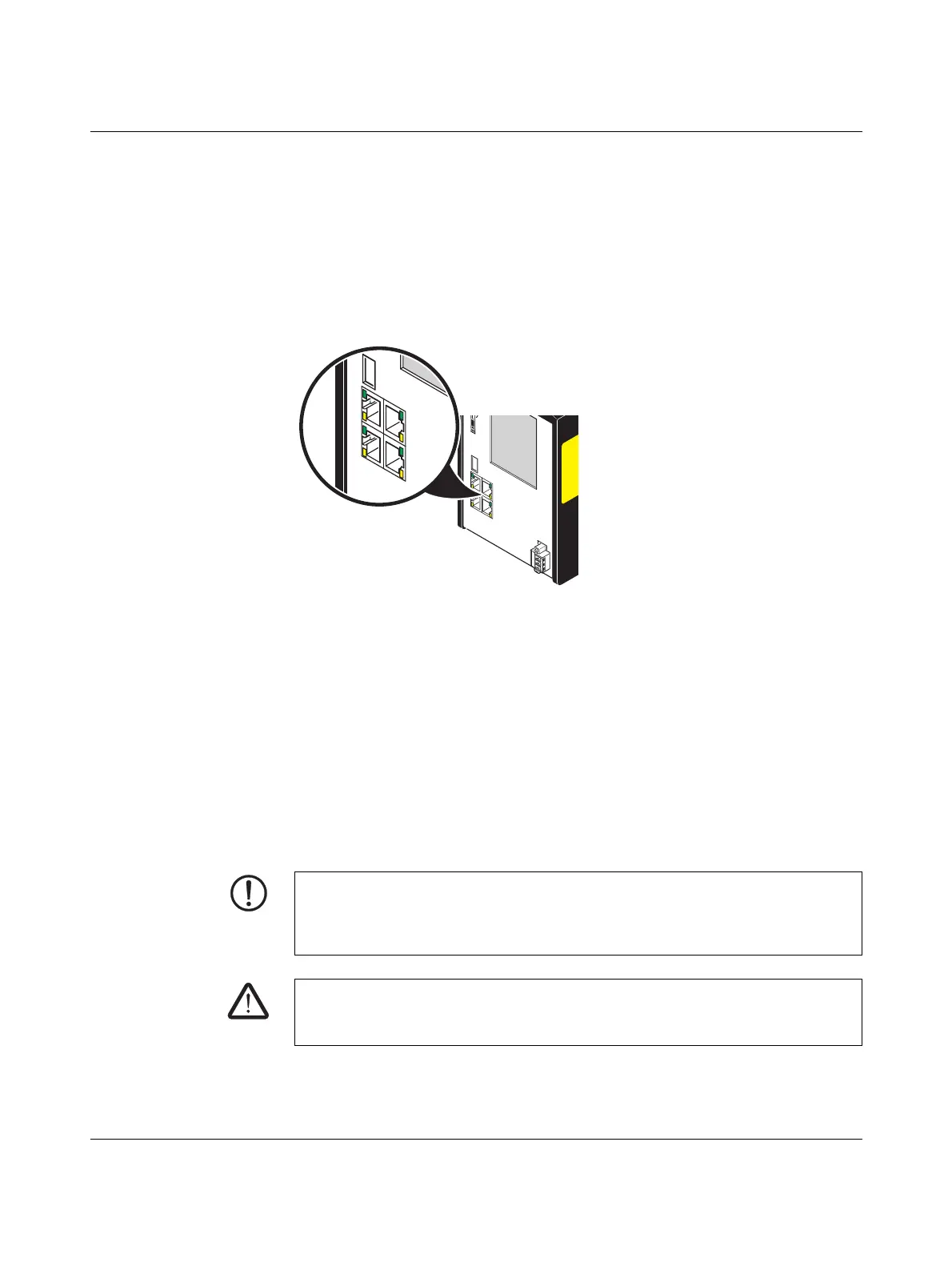

Figure 2-12 LNK and ACT LEDs
2.8 Touch screen display
The RFC 4072S has a Touch screen display (referred to as “display” in the following). This
display shows tiles containing various information on the device and the connected network.
The display allows you to retrieve information about the iSPNS 3000 and OPC UA connec-
tions, for example. The depth of information shown varies by tapping the individual tiles.
The display allows menu-guided operation of the device. Among other things, you can carry
out IP address settings of the RFC 4072S or reset the device to the factory default.
The RFC 4072S is equipped with a resistive Touch screen display.
Avoid damage (e.g., scratches) by only using slight pressure when operating the display.
LNK The LNK LED (link, green) lights up when the RFC is able to contact another
network device.
ACT The ACT LED (activity, yellow) flashes when the Ethernet interface is trans-
mitting or receiving data.
NOTE: Damage to the display
Pointed or sharp-edged objects or tools can cause irreparable damage to the display.
Therefore, only use your fingertips or the tools specified in the technical data for operating
the touch screen.
DANGER: Poisoning
If the display is damaged, avoid direct skin contact, swallowing or inhaling of escaping flu-
ids or gases.
