Description of the RFC 4072S
108580_en_02 PHOENIX CONTACT 53 / 272
Menus in Figure 2-19 on page 52:
2.9.6 “PLCnext DETAILS” menu (standard controller)
• Open the “PLCnext DETAILS” menu by tapping the “PLCnext” tile in the home menu.

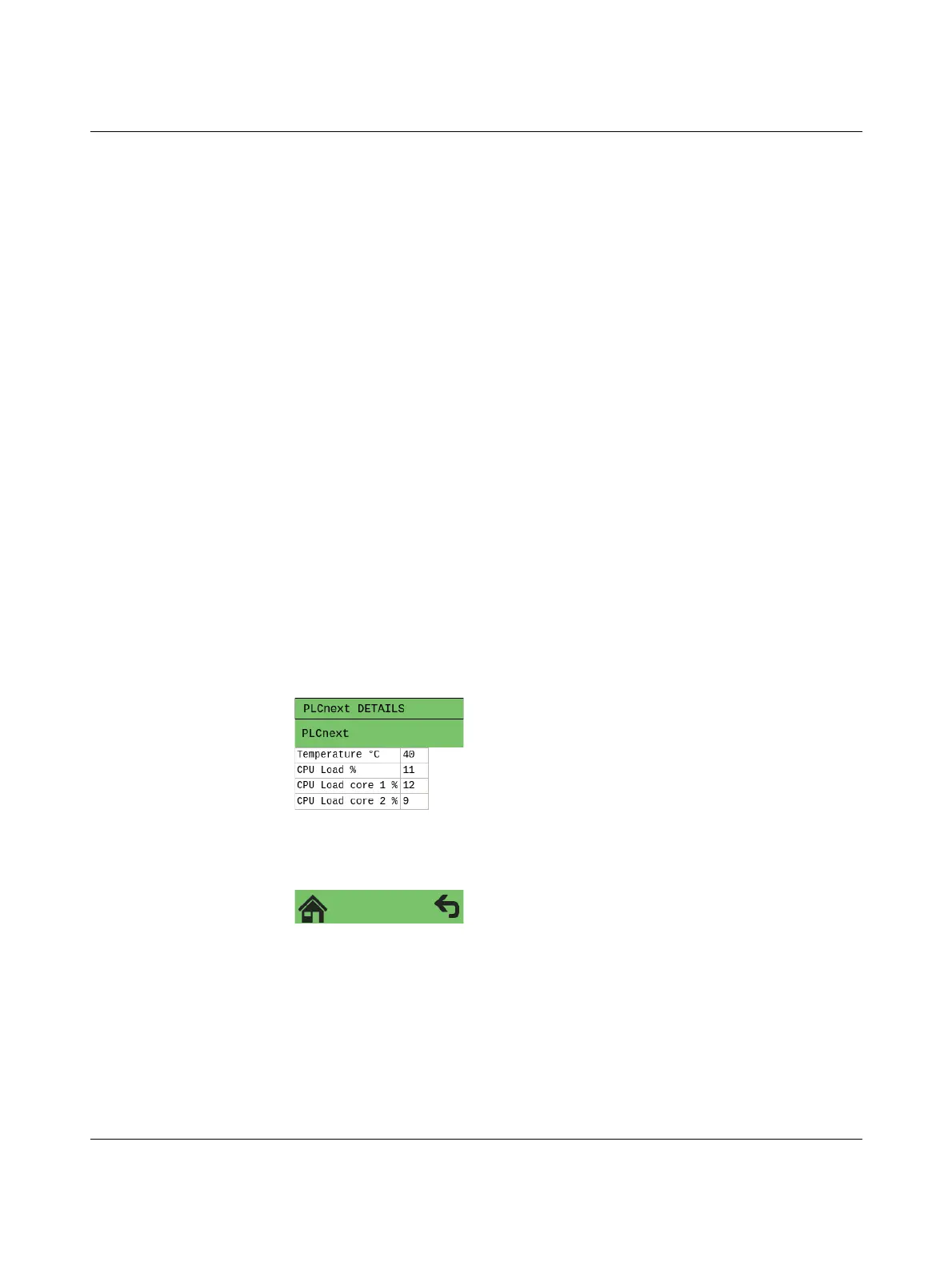

Figure 2-20 “PLCnext DETAILS” menu (standard controller)
The menu shows the following information on the standard controller of the RFC 4072S:
– Device temperature
– Processor load
A SYSTEM INFORMATION
The menu shows information on the RFC 4072S:
– Order designation
– Serial number
– Hardware version
–FPGA version
– Firmware version
–Current Date
–System time
B LAN SETTINGS
The menu shows the current IP address settings of the LAN1, LAN2, LAN3.1/3.2
Ethernet interfaces of the RFC 4072S.
The IP address settings can be changed in the menu and assigned to the Ethernet
interfaces permanently.
C MAINTENANCE
The menu allows for the following maintenance settings:
–PLCREBOOT
Restarts the RFC 4072S
– FACTORY RESET
Resets the RFC 4072S to the factory settings
