Mounting, removal, electrical installation, and replacement
108580_en_02 PHOENIX CONTACT 75 / 272
3.7 Connecting the interfaces
3.7.1 Connecting an Ethernet network
• Connect the Ethernet cable to the Ethernet interface (RJ45 sockets: LAN1, LAN2 or
LAN3.1/3.2) of the RFC 4072S.
The cable connects the RFC 4072S to a higher-level or lower-level Ethernet network.
• Use Ethernet cables according to CAT5 of IEEE 802.3 for operation with up to
100 Mbps. (LAN1, LAN2, LAN3.1, LAN3.2)
• For operation with 1000 Mbps (Gigabit), cables with four wire pairs (twisted pairs, eight
wires in total), which at least meet the requirements of CAT5e, must be used. (LAN1,
LAN2)
For the ordering data for the Ethernet cable, please refer to Section “Ordering data” on
page 230.

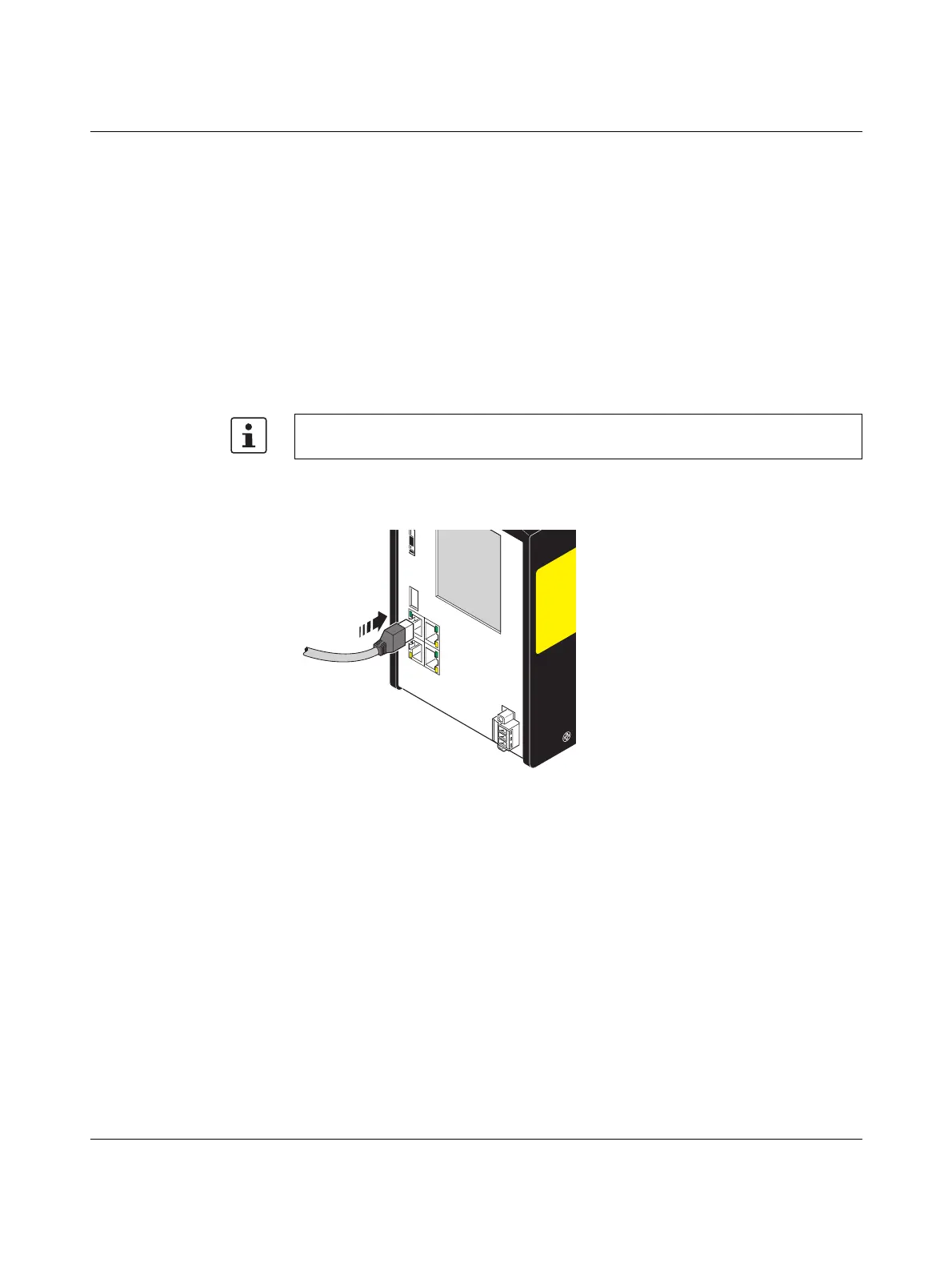

Figure 3-5 Cabling between an Ethernet network and the RFC 4072S
Observe the information on the Ethernet interfaces of the device in Section “Ethernet con-
nection” on page 59
