Doc.No.: 88100-004-DE
Page 1 of 1
0 010927 FINAL DOCUMENTATION t.ly
REV No: ISSUE DATE REASON FOR ISSUE PREPARED CHECKED APPROVED
This document is the property of PHONTECH and
must not be copied or shown to a third person
without our written acceptance. In the interest of
product improvement, PHONTECH reserves the
right to alter specification and design without
notice.
SIZE: A4 UED no: NA
DOC no: 88100-004-DE
TITLE:

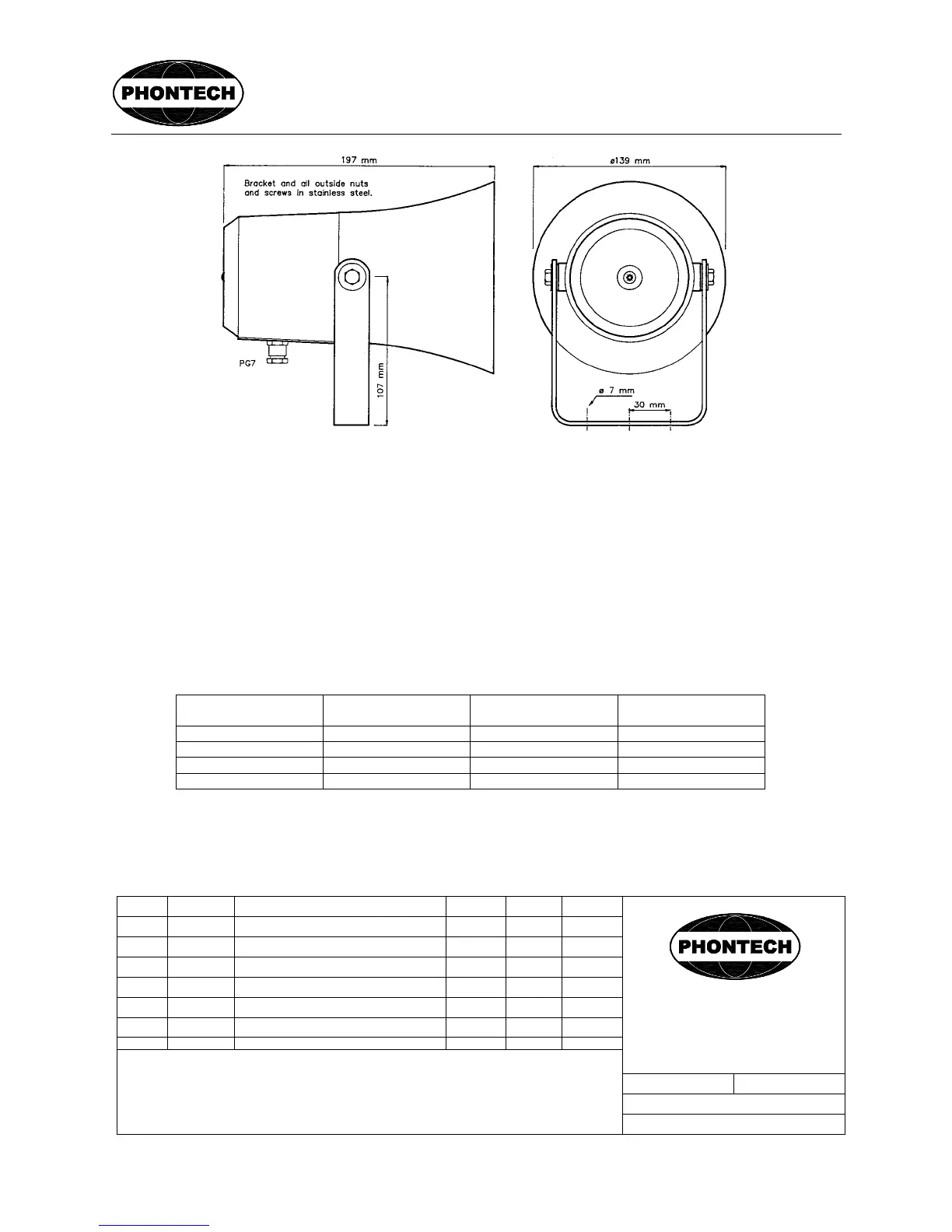

ALARMHORN
TYPE 1009 / 24 VDC
DESCRIPTION.
FILE NAME: 88100-004-DE.doc
Material / color/ Finish ABS / RAL 7035
Mounting Stainless steel bracket
Weight 1.1 kg
IP rating IP 56
Operating voltage DCV 20-28
Tone frequency 1 (ST2 shorted) 900-1250 Hz.
Tone frequency 2 (ST2 open) 670- 925 Hz
Sweep frequency 1 (ST3 shorted) 3 Hz
Sweep frequency 2 (ST3 open) 0.6 Hz.
STRAP ST 1 STRAP ST 3 SPL (SOUND
PRESSURE LEVEL)
SPL A- WEIGHTED.
SHORTED SHORTED 110.7 dB 111.3 dB
SHORTED OPEN 110.9 dB 111.4 dB
OPEN SHORTED 107.7 dB 107.7 dB
OPEN OPEN 107.7 dB 107.7 dB
