Building Instructions Charisma
A straight board, such as the Extron Building Board 300×1200mm # X5537, is required as a building base to build the
model. Protect the construction base with foil to prevent the components from sticking to the construction base. It is
recommended to number the individual components before cutting them out, in order to facilitate assignment later.
Fuselage construction

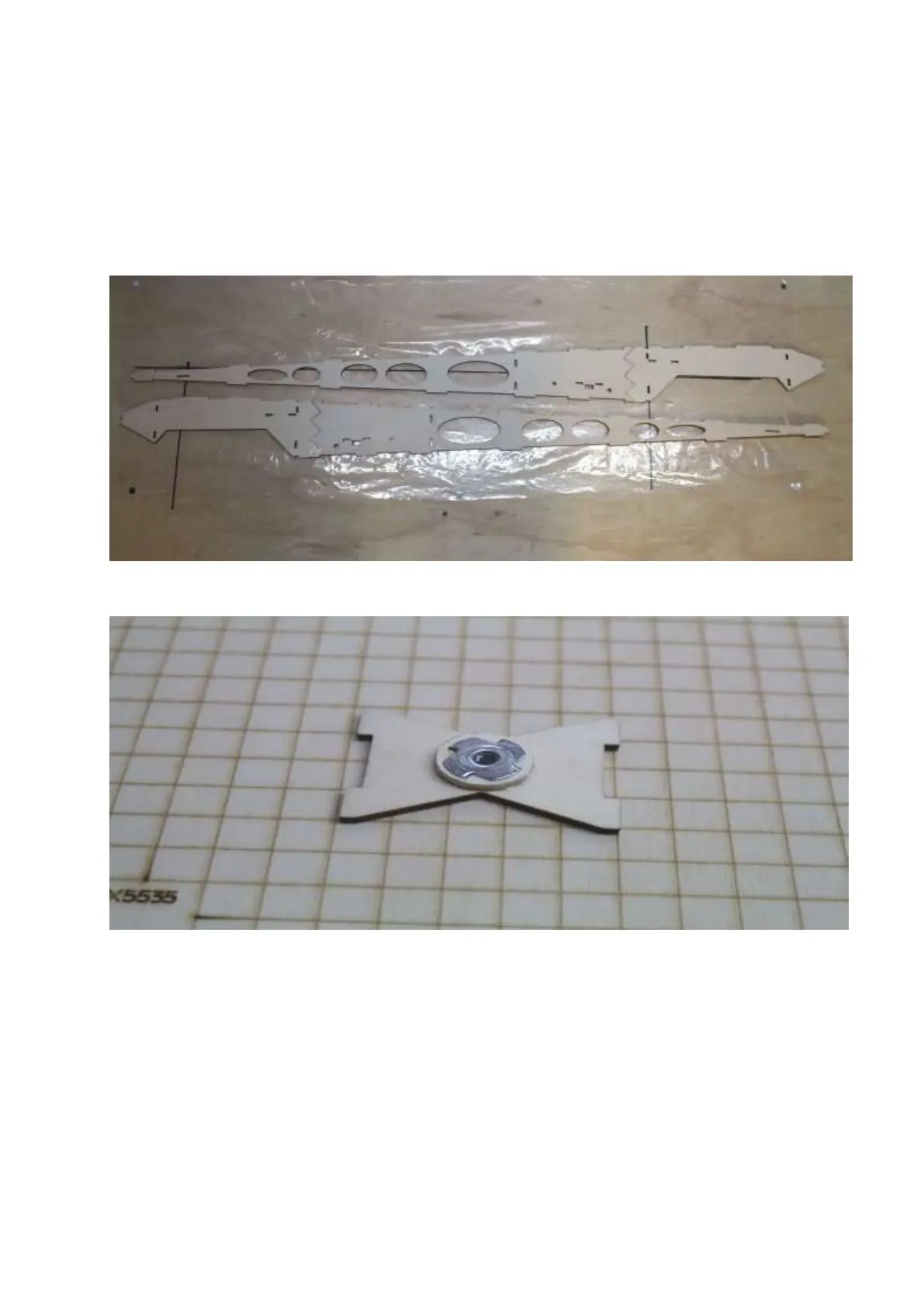

Glue the side parts (H1) and (G1) with white glue.
Glue the reinforcement ring (H5) to the carrier board (H4), making sure that both holes are on top of each other.
Then press in the M4 drive-in nut.
