32
Assemble the frame of the damping surface from the parts (K1, K3, K2, K4), glue & glue in the
bars

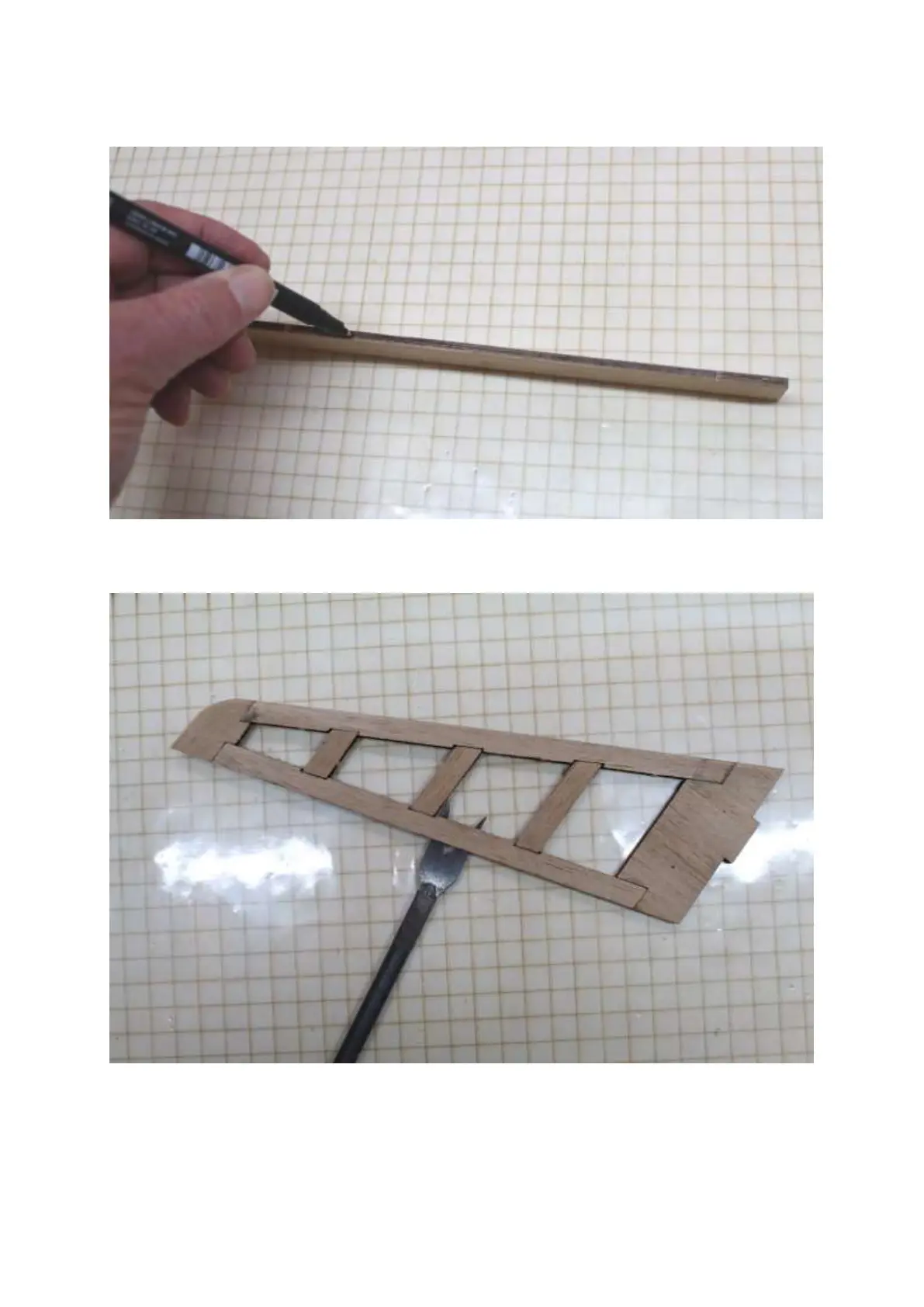

Draw a center line on the trailing edges of the damping surfaces and on the front edges of the rudder blades (elevator in
the picture).
Using a hinge slitting knife # C5829, cut the slits for the flow hinges in the trailing and leading rails (in the picture the
damping surface of the rudder)
