5.1 Control cabinet installation
5 Installation
55000Installa tionInstalla tion5-5.1Control cabinet installation5100Control cabinet installation5-Montage_Sigma_allgemein
 The unit should be installed in a control cabinet with a protection type
of at least IP54.
 Use the notch on the rear of the unit to attach it to a mounting rail.
 In environments exposed to heavy vibration or when installing on a
vertical mounting rail (35 mm), the unit should be secured using a fix-
ing element (e.g. retaining bracket or end angle).
 Push the unit upwards or downwards before lifting it from the mount-
ing rail.
Montage_EMV ESD

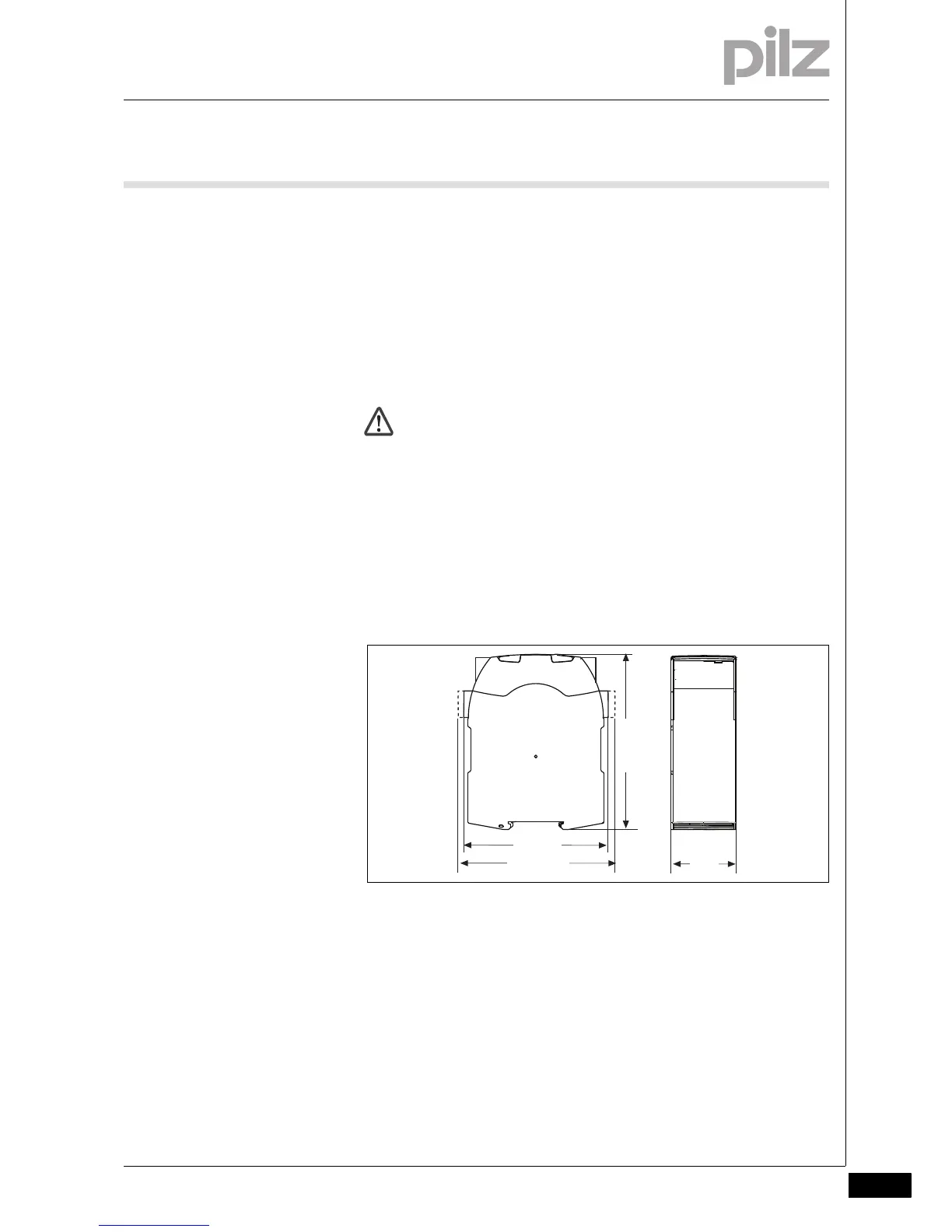

5.1.1 Dimensions
Dimensions5-Abmessung en
*with spring-loaded terminals
CAUTION!
Damage due to electrostatic discharge!
Electrostatic discharge can damage components. Ensure
against discharge before touching the product, e.g. by touching
an earthed, conductive surface or by wearing an earthed arm-
band.
120 (4.72")
* 100 (3,94")
98 (3.86")
45
(1.77")

Pilz PNOZ mm0p Specifications

General

Brand	Pilz
Model	PNOZ mm0p
Category	Controller
Language	English
