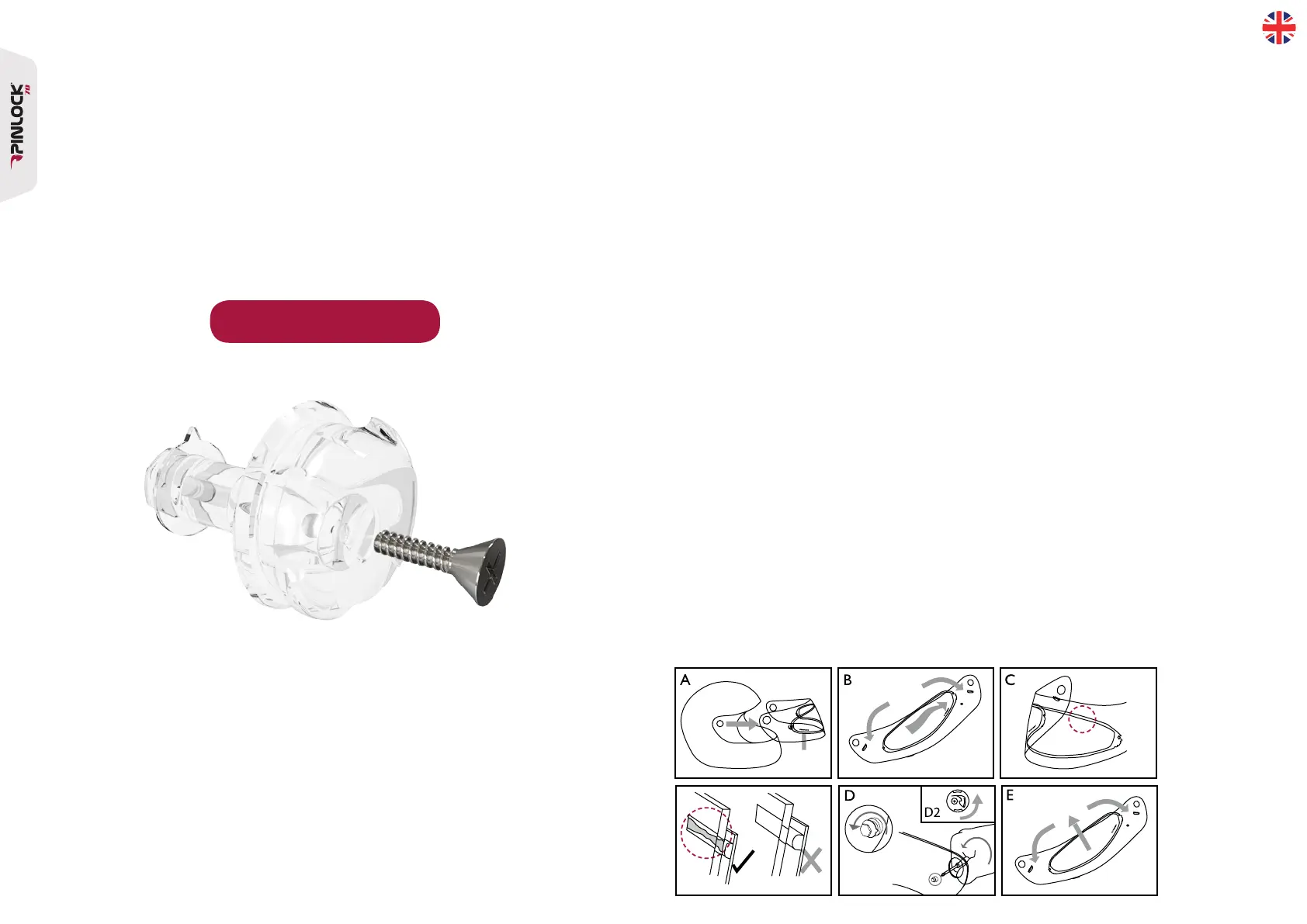

TEAR OFF PIN
PINLOCK
®
70 TEAR OFF PIN
Your Pinlock
®
lens is made from a moisture absorbing plastic. The silicon seal on the Pinlock
®
lens creates an insulating air pocket
between the Pinlock
®
lens and the helmet shield. The pins, between which the Pinlock
®
lens is to be tted, are eccentric, which means
that the axis of the pin is not precisely in the center. This enables you to increase or decrease the tension on the Pinlock
®
lens by turning
the pins, allowing the silicone seal to have a perfect t. Please notice! The Pinlock
®
lens is less resistant to scratching than the helmet
shield!
INSTALLATION
1. Remove the helmet shield from the helmet as shown in the helmet
manufacturers’ instructions. (g. A)
2. Flex the helmet shield and place the Pinlock
®
lens between the two pins provided in the helmet shield. (g. B)
Allow the helmet shield to reacquire its curved shape. The silicon seal on the Pinlock
®
lens must make full contact with the helmet
shield in order to avoid any condensation forming between the helmet shield and the Pinlock
®
lens. (g. C)
If the silicon seal does not make full contact with the helmet shield, please continue at paragraph “Adjusting lens tension”.
3. Remove the protective lm from the Pinlock
®
lens.
4. Fit the helmet shield back on the helmet.
REMOVING
5. Remove the helmet shield from the helmet as shown in the helmet
manufacturers’ instructions. (g. A)
6. Flex the helmet shield carefully until there is no more tension on the Pinlock
®
lens. Carefully remove the Pinlock
®
lens from its
position. (g. E)
CLEANING
7. Remove the Pinlock
®
lens as shown in the paragraph “REMOVING”. Only clean the Pinlock
®
lens and the helmet shield using
mild liquid soap, lukewarm water and a soft moist cloth. Allow the Pinlock
®
lens and the helmet shield to dry naturally before
reassembling them.
DO NOT USE ABRASIVE CLEANING PRODUCTS OR LIQUIDS CONTAINING AMMONIA OR ALCOHOL.
ADJUSTING LENS TENSION
8. Remove the helmet shield from the helmet as shown in the helmet manufacturers’ instructions. (g. A)
9. The pin on the inside of the visor is eccentric. The position of the eccentric part is marked by a small indicator.
Rotating the pin so the indicator points inwards increases the tension on the lens. (g. D)
10. Adjust the position of the pin on the inside of the visor by turning the screw on the outside of the visor using a small crosshead
screwdriver.
11. Check if the silicon seal on the Pinlock
®
lens is making full contact with the visor. (g. C) If this is not the case, adjust the pins further
according to step 10.
12. Fit the helmet shield back on the helmet.
