When installing the aerial inside the vehicle (on the dashboard or
rear shelf)
WARNING
Do not install the GPS aerial over any sen-
sors or vents on the dashboard of the vehicle,
as doing so may interfere with the proper
functioning of such sensors or vents and may
compromise the ability of the metal sheet
under the GPS aerial to properly and se-
curely affix to the dashboard.
The metal sheet contains a
strong adhesive which may
leave a mark on the surface if
it is removed.
Note
Make sure the surface is
free of moisture, dust,
grime, oil, etc., before
affixing the metal sheet.
1
2
3

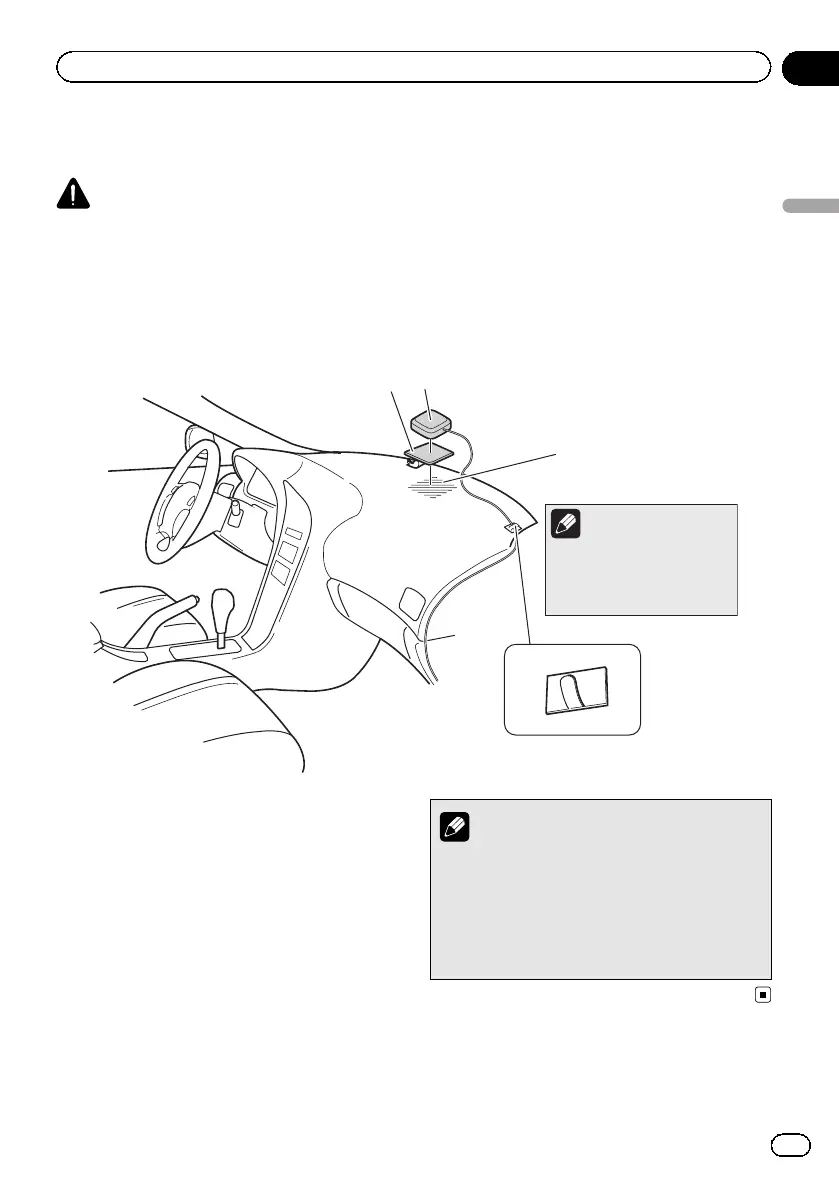

1 GPS aerial
2 Metal sheet
Peel off the protective sheet on the rear.
3 Clamps
Use separately sold clamps to secure the lead
where necessary inside the vehicle.
Affix the metal sheet on the surface as level as
possible where the GPS aerial faces the win-
dow. Place the GPS aerial on the metal sheet.
(The GPS aerial is fastened with its magnet.)
Notes
! When attaching the metal sheet, do not cut
it into small pieces.
! Some models use window glass that does
not allow signals from GPS satellites to
pass through. On such models, install the
GPS aerial on the outside of the vehicle.
