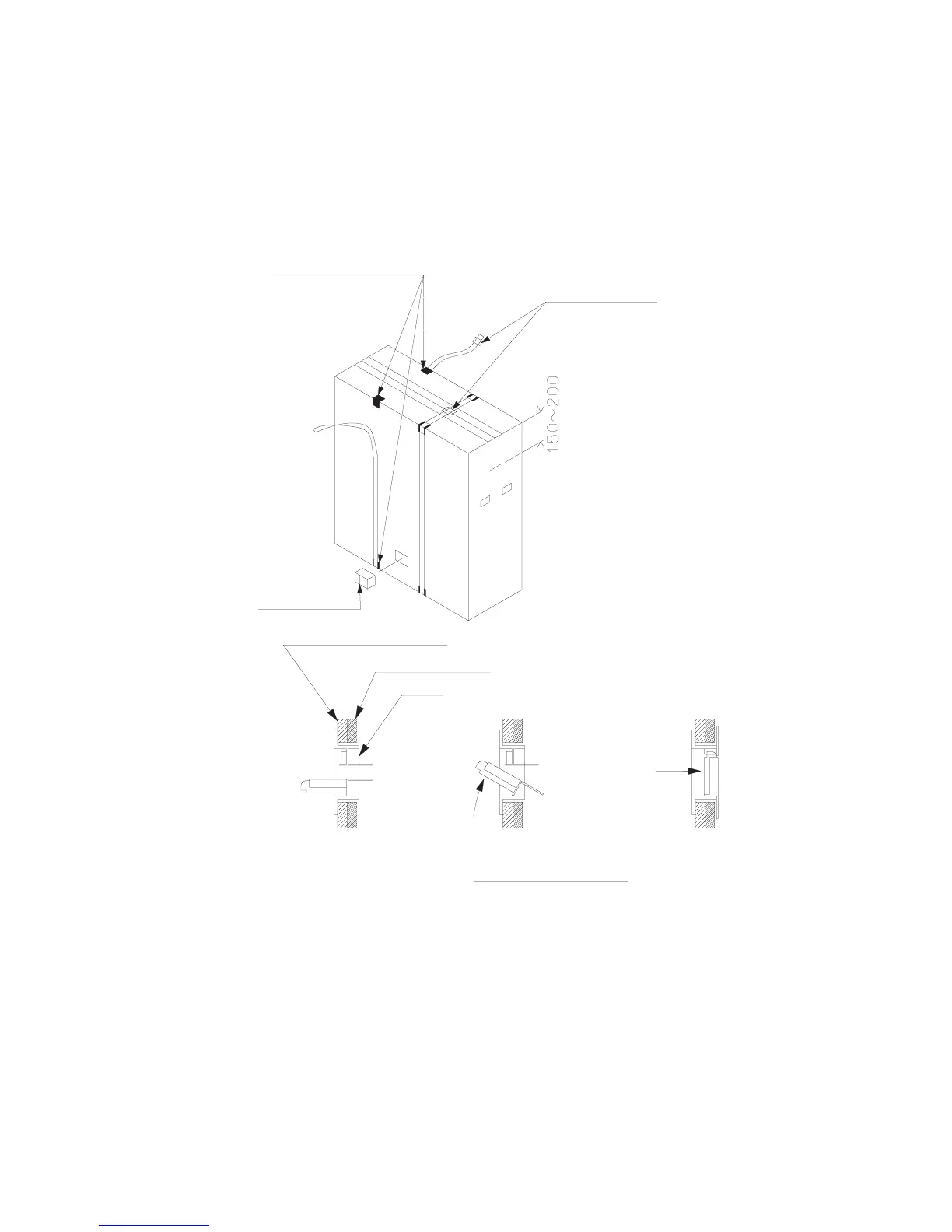

D) JOINT
To be locked by inserting the joints (24CS0551) in 2 positions.
Hang the P.P band based on the marking printed on the carton box
edge line and fasten it with a stopper (P.P band) (24282431).
Markings for the P.P band
PK03 STOPPER
24282431 x 2pcs.
Same workmanship on the opposite side.
The tape to be used shall be a transparent P.P tape
60mm*50m (92203187) or a Colorian PP tape #426
60mm*50mm (9W050001).
PK05 JOINT
24CS0551
CARTON BOX(T)42XM3
CARTON BOX(B)
JOINT
1. Insert the JOINT
in a carton box.
2. Rotate the hinged part.
3. Push it in until it is locked.
JOINT Mounting Details
(Cross section)
To Next Page
