PDP-5000EX
21
5678
56
7
8
C
D
F
A
B
E
PDP SERVICE ASSY (AWU1198) PARTS LIST
Mark
No. Description Part No.
NSP 1 P. Chassis (F) Assy AWU1201
NSP 2 Plasma Panel (50FH) Assy AWU1158
NSP 3 50FHD ADDRESS A Assy AWW1127
NSP 4 50FHD ADDRESS B Assy AWW1128
5 50FHD SCAN A Assy AWW1229
6 50FHD SCAN B Assy AWW1230
7 Address Silicon (F) AEH1104
8• • • • •
9• • • • •
10 Address Holder Assy (B) AMR3547
11 • • • • •
12 SCAN Sheet AMR3638
13 Plate Holder AMR3446
14 Sub Frame (F) ANA1937
15 F Chassis V Assy L ANA1953
16 F Chassis V Assy R ANA1954
17 Front Chassis Assy (F) ANA1957
18 Terminal Panel (F) ANG2914
19 Address Heatsink ANH1651
20 Plate X (F) ANG2906
21 Wire Saddle AEC1745
22 PCB Support AEC1938
23 PCB Spacer AEC1941
24 PCB Spacer AEC1947
25 Nylon Livet AEC2086
26 Rear Case (F) ANE1654
27 Gasket ADH-FCH ANK1850
28 Screw ABA1364
29 Screw ABZ30P080FTC
30 Screw AMZ30P060FTB
31 Screw APZ30P100FTB
32 Screw TBZ40P080FTB
33 Screw BBB30P120FNI
34 F.Case Assy S (50F) AMB2960
35 Sassi T (Pls) AAK2883
36 Sassi B (Pls) AAK2884
37 Pad (50T-L) AHA2546
38 Pad (50T-R) AHA2547
39 Pad (50B-L) AHA2548
40 Pad (50B-R) AHA2549
41 Under Carton (505) AHD3326
NSP 42 Upper Carton (505 SVC) AHD3343
43 Mirror Mat AHG1284
44 Service Pad AEC2105
Mark
No. Description Part No.

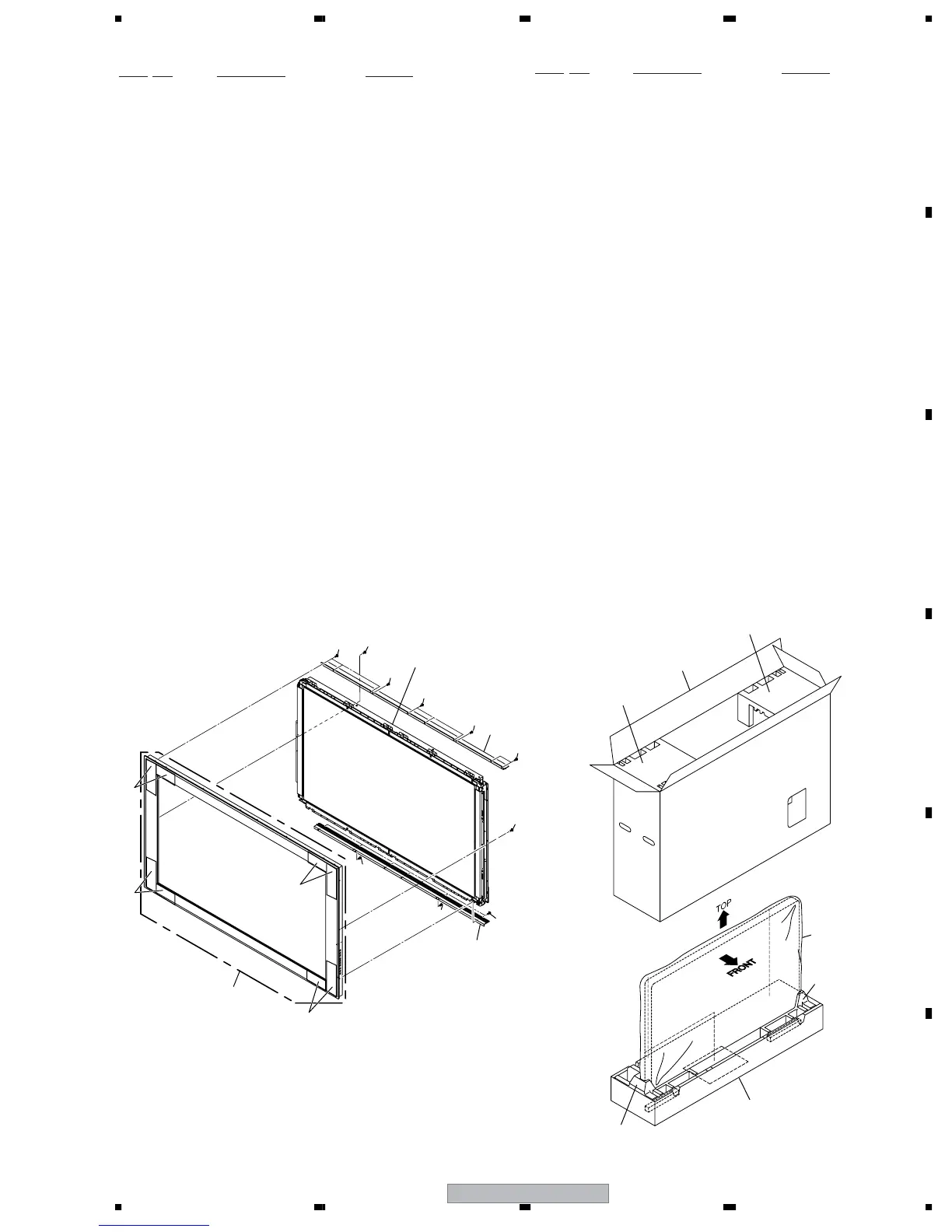

• Front Section • Packing Section
Refer to
"PDP Service Panel section"
36
31
25
34
44
44
44
44
25
31
31
31
31
31
25
25
35
41
39
40
37
43
38
42
To Next Page
