Pioneer PDP-5000EX Service Manual

PDP-5000EX
89
5678
56
7
8
C
D
F
A
B
E

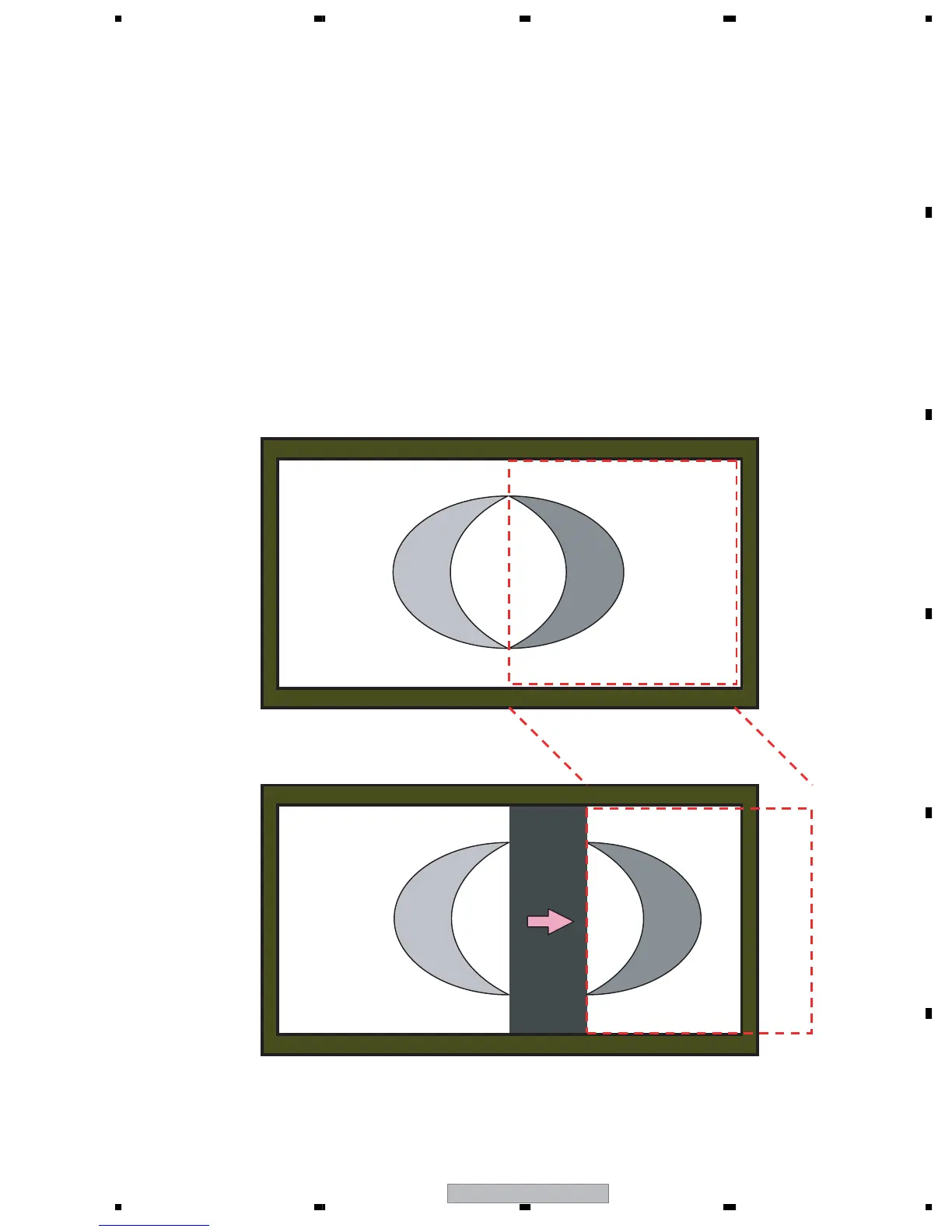

Normal mask indication
Dislocation of mask indication
Note: The mask indication pattern indicated above is not a real pattern.
With the application-specific integrated circuit (ASIC) designed for the FHD panel, the mask indication may be dislocated.
When the unit is turned on with the panel mask indication ON, the mask indication is dislocated on approximately one unit out
of three hundred. As end users basically do not use panel mask indications, this is not a problem in normal usage. Dislocation
may be generated during failure analysis or when turning the unit off then back on during voltage margin adjustment.
2. On dislocation of the mask indication, which is generated on the right side of the screen

Pioneer PDP-5000EX Specifications

General

Depth	98 mm
Width	1282 mm
Height	750 mm
Weight	39800 g
Pixel pitch	- mm
Product color	Black
Audio (L/R) in	1
Noise reduction	Yes
RMS rated power	13 W
Display diagonal	50 \
Display brightness	1000 cd/m²
Display technology	Plasma
Power requirements	AC 110 - 240 V, 50/60 Hz
Contrast ratio (typical)	3000:1
Power consumption (standby)	0.4 W
Power consumption (typical)	420 W
