Pioneer PDP-507XD Service Manual

PDP-507XD
129
5678
56
7
8
C
D
F
A
B
E
8. SERVICE FACTORY MODE
8.1 OUTLINE OF THE SERVICE FACTORY

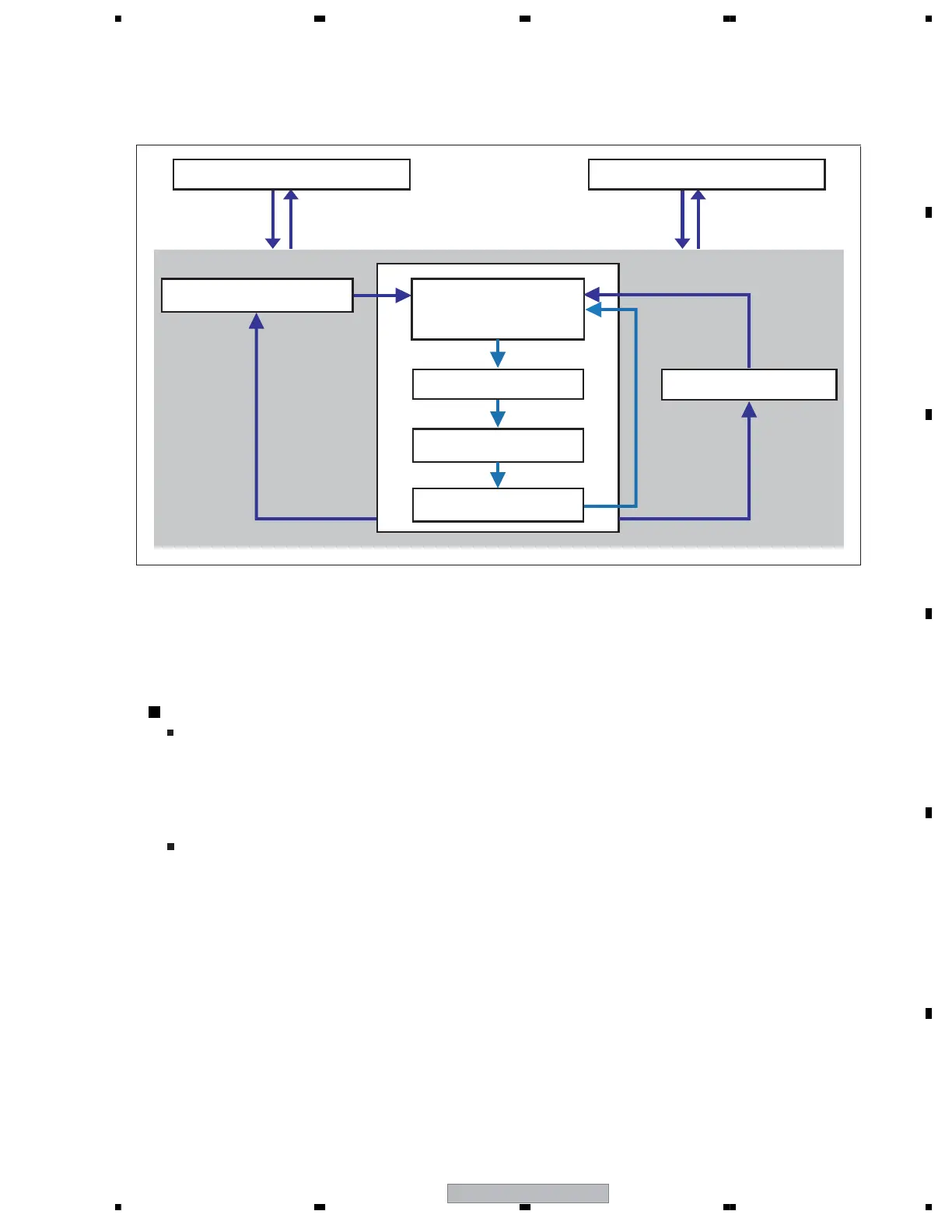

8.1.1 SERVICE FACTORY MODE TRANSITION CHART
8.1.2 HOW TO ENTER/EXIT SERVICE FACTORY MODE
FACT<AA5F>
POWER<AA1C/AA1B>
FACT<AA5F> FACT<AA5F>
FACT [POF] [FAY] MENU<AA8B>
MENU<AA5B+AF20>
[FAN]
RS-232C Factory mode
INFORMATION
(MTB/MB INFORMATION)
OPTION
INITIALIZE
<AA49>
[ (MUTING)]
Effective 232C command
Effective IR in Factory mode
in Factory mode
Standby mode Power supply ON mode
PANEL FACTORY
• The function is changed.
• The signal mode is changed.
How to enter Service Factory Mode and do it go out.
How to enter Service Factory Mode.
By using a control unit for servicing)
• Service remote control
: press[FACTORY1]key.
By using RS-232C commands)
• Standby mode : Send [PON]+[FAY] .
• Power supply ON mode : Send[FAY] .
How to come off Service Factory Mode.
By using a control unit for servicing)
• Service remote control : press [ FACTORY1 ] key.
• Remote control : press [ HOME MENU ] key.
By using RS-232C commands)
• Send [FAN] .

Pioneer PDP-507XD Specifications

General

Comb filter	3D
Aspect ratio	16:9
Product color	Black
Noise reduction	Yes
Display diagonal	50 \
Display brightness	1100 cd/m²
Display resolution	1365 x 768 pixels
Display technology	Plasma
Viewable size diagonal	1270 mm
Contrast ratio (typical)	4000:1
