Pioneer XR-P770F Operating Instructions

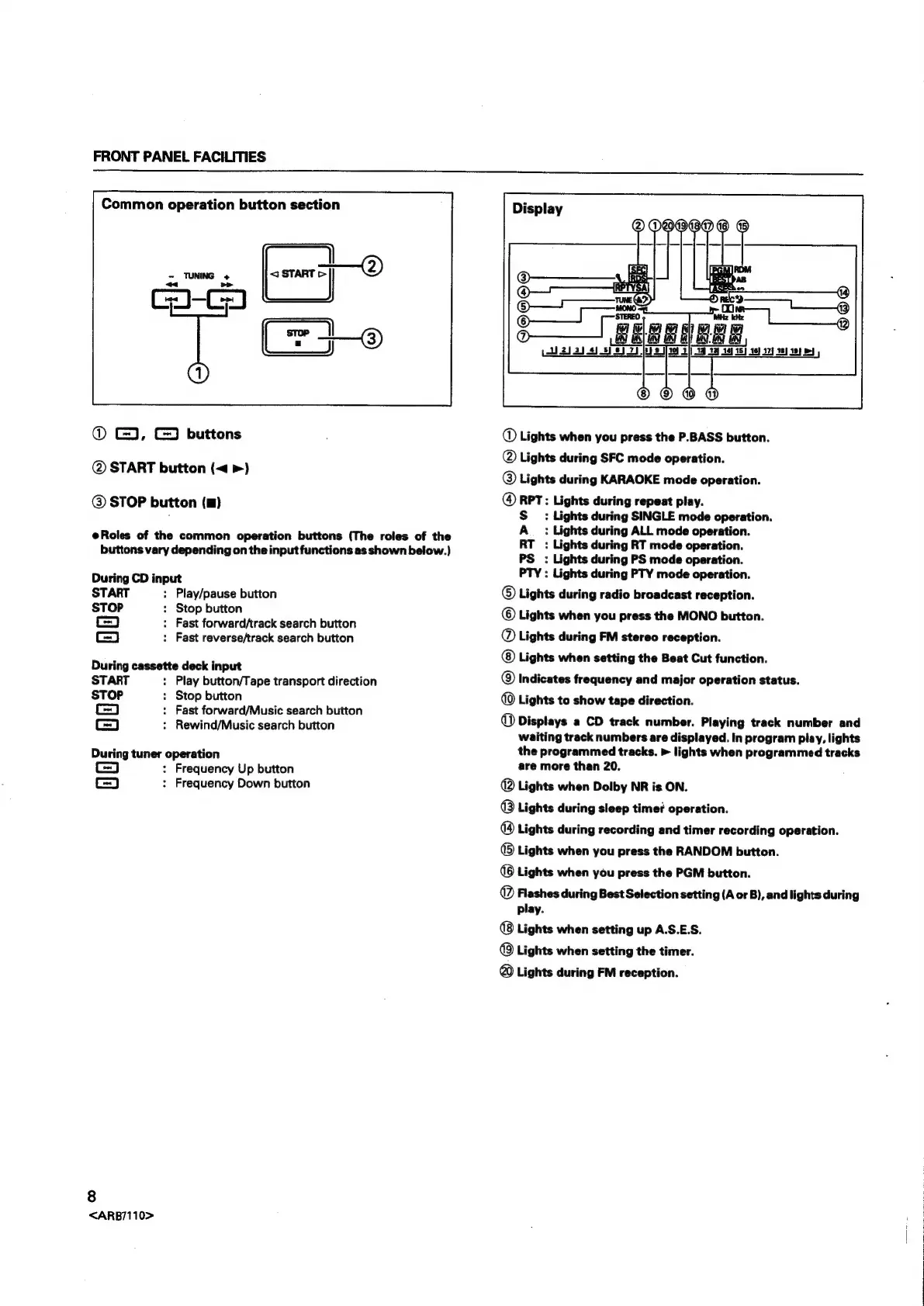

FRONT PANEL FACILITIES
Common operation button section
@ GI, ©) buttons
@ START button (<4 pm)
@ STOP button (m)
@Roles of the common operation buttons (The roles of the
buttons vary depending on the input functions as shown below.)
During CD input
START : Play/pause button
STOP : Stop button
=a] : Fast forward/track search button
cs : Fast reverse/track search button
During cassette deck input
START : Play button/Tape transport direction
STOP : Stop button
CG : Fast forward/Music search button
GC : Rewind/Music search button
During tuner operation
: Frequency Up button
GI : Frequency Down button
8
<ARB7110>
© Lights when you press the P.BASS button.
@ Lights during SFC mode operation.
@ Lights during KARAOKE mode operation.
@ RPT: Lights during repeat play.
S__: Lights during SINGLE mode operation.
A _ : Lights during ALL mode operation.
RT: Lights during RT mode operation.
PS_: Lights during PS mode operation.
PTY : Lights during PTY mode operation.
© Lights during radio broadcast reception.
© Lights when you press the MONO button.
@ Lights during FM stereo reception.
Lights when setting the Beat Cut function.
© Indicates frequency and major operation status.
(© Lights to show tape direction.
© Displays a CD track number. Playing track number and
waiting track numbers are displayed. In program play, lights
the programmed tracks. > lights when programmed tracks
are more than 20.
@ Lights when Dolby NR is ON.
® Lights during sleep timer operation.
® Lights during recording and timer recording operation.
@ Lights when you press the RANDOM button.
(@ Lights when you press the PGM button.
@® Flashes during Best Selection setting (A or B), and lights during
play.
(8 Lights when setting up A.S.E.S.
® Lights when setting the timer.
@ Lights during FM reception.

Pioneer XR-P770F Specifications

Amplifier Section

continuous power output (RMS)	100 W + 100 W
channels	2 channels (stereo)
continuous power output (DIN)	80 W + 80 W

Power

power requirements	AC 230 V, 50/60 Hz
power consumption	530 W
music power (DIN)	115 W + 115 W

FM Tuner Section

reception frequencies (FM)	87.5 MHz to 108 MHz
reception frequencies (AM)	531 kHz to 1, 602 kHz (9 kHz step)
frequency response (Type II tape)	35 Hz to 15, 000 Hz +6 dB

Weight and Dimensions

external dimensions	260 (W) x 310 (H) x 371.5 (D) mm
weight	11.5 kg
antenna input	75 Ω unbalanced
