XR-VS500D, XR-VS300D
5
Notes : For PCB ASSEMBLIES, Refer to “PCB PARTS LIST”, “3. SCHEMATIC DIAGRAM” and “4. PCB CONNECTION DIAGRAM”.
EXPLODED VIEWS
Notes : For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES” and “3. SCHEMATIC DIAGRAM”.
The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”.
*1 Refer to “3. SCHEMATIC DIAGRAM”. *2 Stick Name Label on the Rear Panel. *3 Refer to “LABEL CHECK”.
Part No.
Ref. No. Mark Symbol and Description XXA3019 XXA3018 Remarks
(XR-A9800D) (XR-VS300D)
P5-10 CONNECT ASSY (6CH) XWX3023 Not used
P5-10 CONNECT ASSY (2CH) Not used XWX3019
P5-14 25P Flexible Cable XDD3046 Not used
P5-14 15P Flexible Cable Not used XDD3049
P5-18 30P Flexible Cable XDD3044 Not used
P5-18 16P Flexible Cable Not used XDD3043
P5-21 7P Flexible Cable/30V XDD3053 ADD7197
P5-23 DVD Base XNG3034 ANG7262
P5-24 DVD Shield XNK3006 ANK7066
P5-55 21P Flexible Cable XDD3052 Not used
P5-55 7P Flexible Cable Not used XDD3045
XXA3018 and XXA3019 are constructed the same except for the following :
CONTRAST OF $M MECHA. DVD

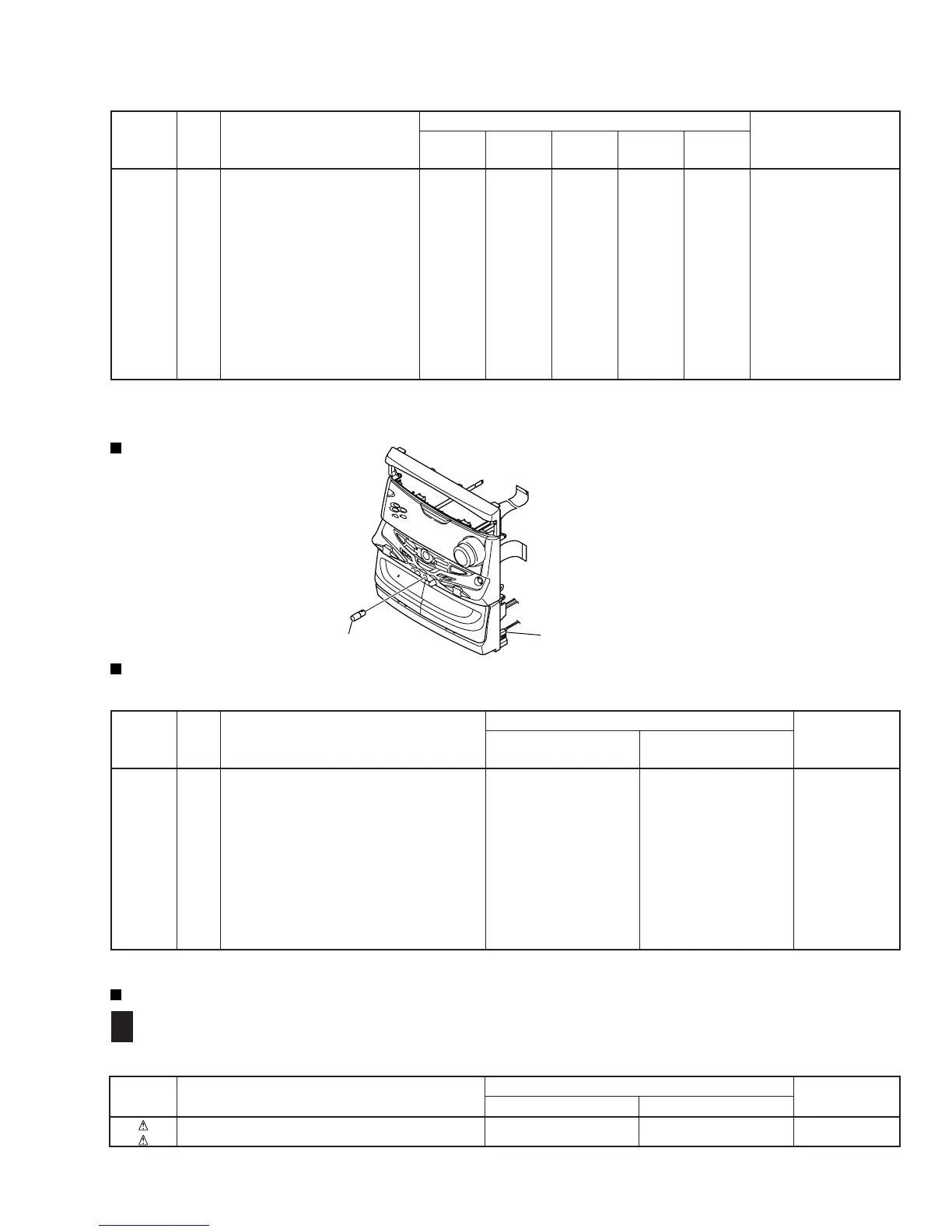

Front Panel
1
CONTRAST OF PCB ASSEMBLIES
SECONDARY ASSY
F
J
XWZ3317 and XWZ3323 are constructed the same except for the following :
Mark Symbol and Description
Part No.
Remarks
XWZ3323 XWZ3317
C33, C34 (4700µF/80V) ACH7071 Not used
C33, C34 (4700µF/71V) Not used XCH3001
Part No.
Ref. No. Mark Symbol and Description
XR-A9800D XR-VS300D XR-VS300DXR-VS300D XR-VS300D Remarks
/KUCXJ /DBXJN /DDXJN/RA /DDXJN/RB /DLXJN/NC
FRONT PANEL SECTION
P7-19 JOG Knob XAA3015 XAA3019 XAA3019 XAA3019 XAA3019
P7-21 FUNC Button L XAD3061 XAD3089 XAD3089 XAD3089 XAD3089
P7-22 FUNC Button R XAD3051 XAD3090 XAD3090 XAD3090 XAD3090
P7-23 FUNC Frame L XAD3052 XAD3091 XAD3091 XAD3091 XAD3091
P7-24 FUNC Frame R XAD3053 XAD3092 XAD3092 XAD3092 XAD3092
P7-25 DV ENT Button XAD3056 XAD3085 XAD3085 XAD3085 XAD3085
P7-26 Display Panel XAK3135 XAK3205 XAK3205 XAK3205 XAK3205
P7-33 FL Cover XAK3164 XAK3163 XAK3163 XAK3163 XAK3163
P7-42 Sub Panel XAK3203 XAK3208 XAK3208 XAK3208 XAK3208
P7-50 DV Button L XAD3057 XAD3087 XAD3087 XAD3087 XAD3087
P7-51 DV Button R XAD3059 XAD3088 XAD3088 XAD3088 XAD3088
Mic Knob Not used XAB3007 XAB3007 XAB3007 XAB3007 No. 1
To Next Page
