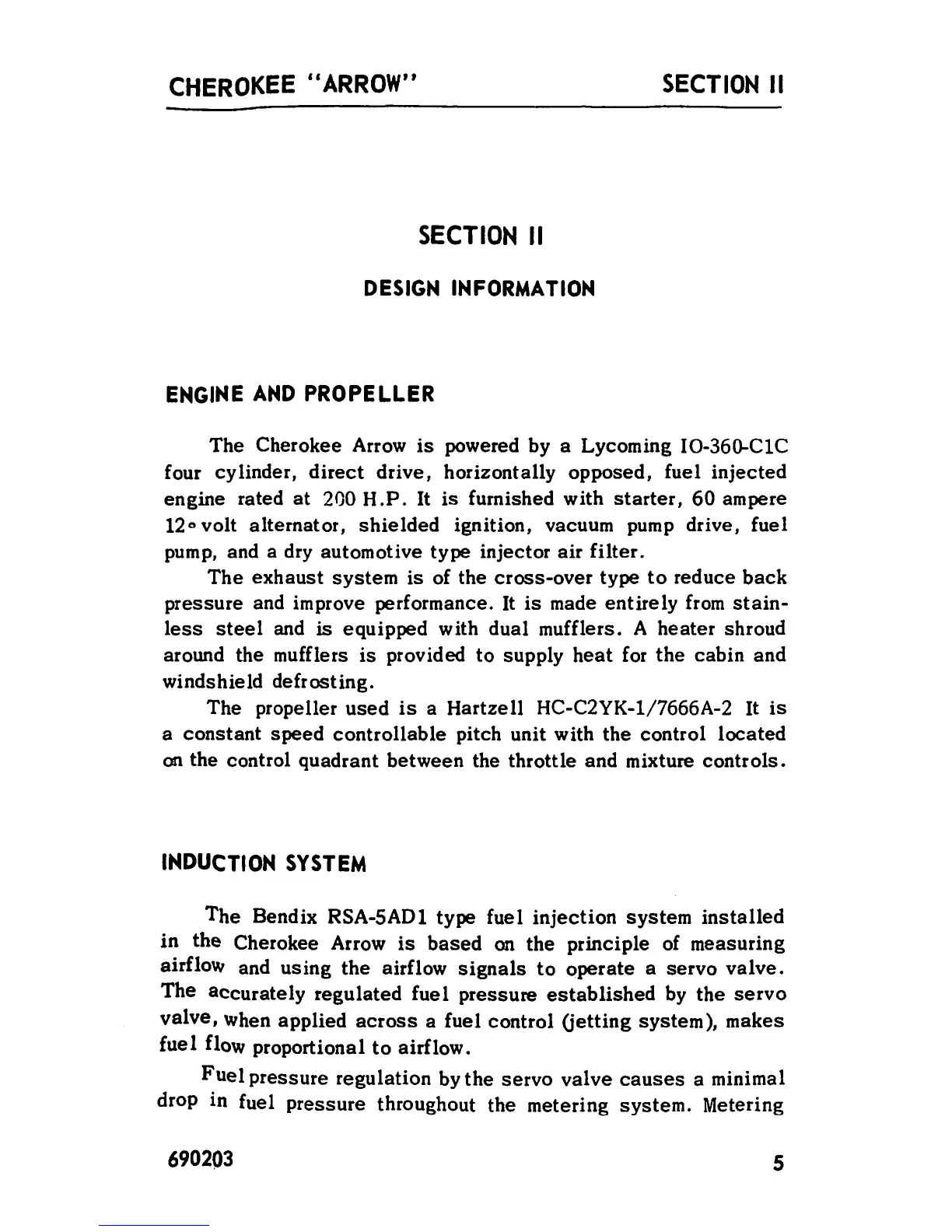

CHEROKEE "ARROW"
SECTION II
SECTION II
DESIGN INFORMATION
ENGINE AND PROPELLER
The Cherokee Arrow is powered by a Lycoming 10-360-ClC
four cylinder, direct drive, horizontally opposed, fuel injected
engine rated at 200 H .P. It is furnished with starter, 60 ampere
12o volt alternator,
shielded ignition, vacuum pump drive, fuel
pump, and a dry automotive type injector
air filter.
The exhaust system is of the cross-over type to reduce back
pressure and improve performance. It is made entirely from stain-
less steel and is equipped with dual mufflers. A heater shroud
around the mufflers
is provided to supply heat for the cabin and
windshield defrosting.
The propeller
used is a Hartzell HC-C2YK-1/7666A-2 It is
a constant speed controllable pitch unit with the control located
on the control quadrant between the throttle and mixture controls.
INDUCTION SYSTEM
The Bendix RSA-SADl type fuel injection system installed
in the Cherokee Arrow is based on the principle of measuring
airflow and using the airflow signals to operate a servo valve.
The accurately regulated fue 1 pressure established by the servo
valve, when applied across a fuel control (jetting system), makes
fuel flow proportional to airflow.
Fuel pressure regulation by the servo valve causes a minimal
drop
in fuel pressure throughout the metering system. Metering
690203
5
