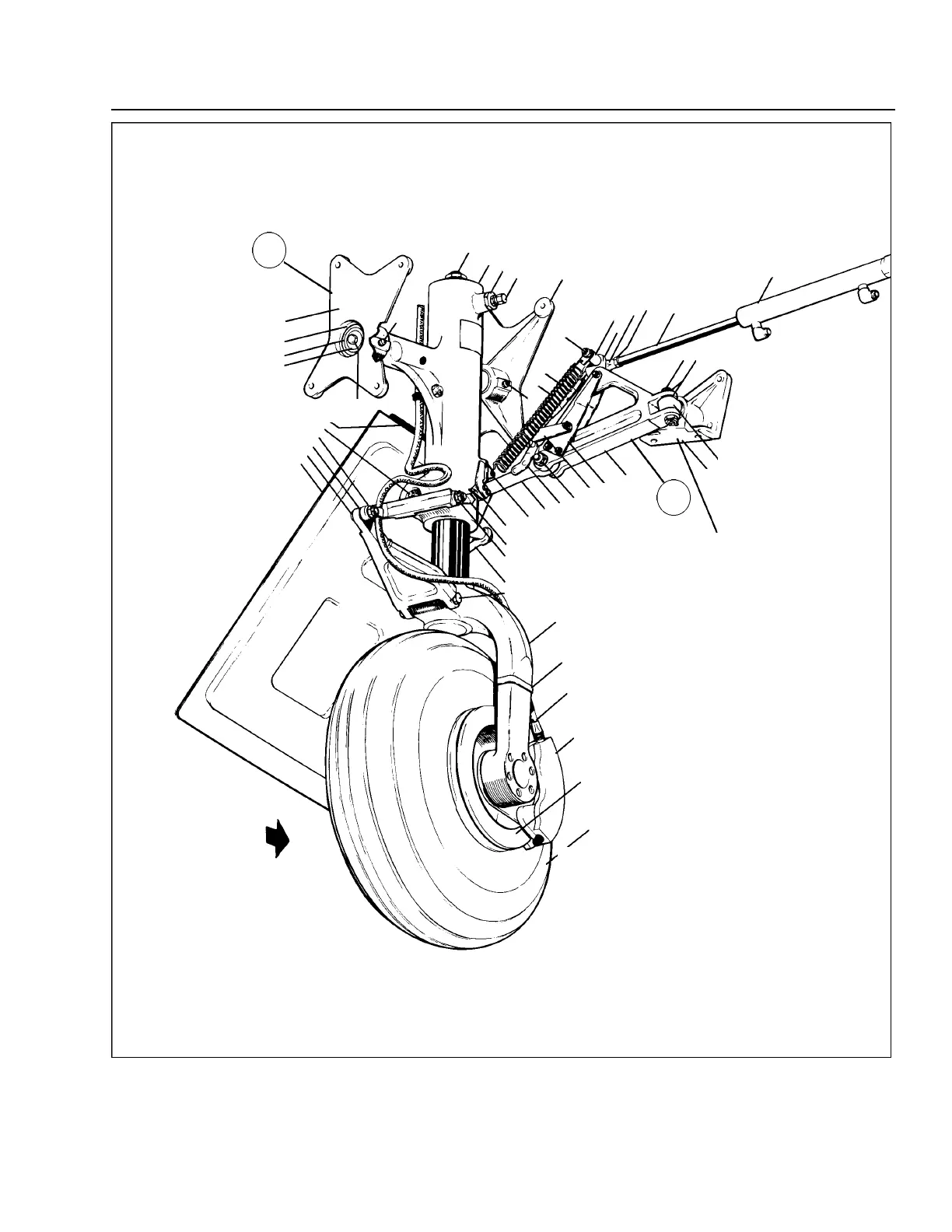

Figure 32-3. Main Gear Installation
A591
NOTE
It may have been necessary to use special landing gear
attachment hardware during assembly of the aircraft due
to manufacturing tolerances. Therefore, special attention
should be given when removing hardware to inspect and
insure the same diameter hardware is used upon
reassembly. Standard AN4 or AN5 bolts are replaced by
alternate oversized bolts NAS 3004 or NAS 3005, also
NAS3005, and standard flush head bolts MS24694-S105
are replaced by alternate oversize bolts NAS1604-9R
respectively when oversized hardware is required.
TORQUE SUPPORT BRACKET ATTACHMENT
BOLTS 20 TO 25 INCH-POUNDS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
60
A
B
FWD
PA - 4 4 - 1 8 0 / 1 8 0 T
AIRPLANE MAINTENANCE MANUAL
3 2 - 1 2 - 0 3
Page 32-16
Revised: May 15, 1989
2G8
PIPER AIRCRAFT
