This document outlines the features, usage, and maintenance of a PIRON Explora Performer oven, specifically the Colombo and Colombo KT models. It covers Wi-Fi connectivity, software updates, cooking functions, and washing cycles.

Device Description

The PIRON Explora Performer is a professional combi oven designed for a variety of cooking and washing tasks in a commercial kitchen environment. It features a modern touchscreen interface for intuitive control and offers advanced connectivity options, including Wi-Fi, to facilitate software updates and remote management.

Function Description

The oven is capable of performing a wide range of functions, including:

Cooking: Offers various cooking modes such as pre-heating, time-phase cooking, core probe cooking, and delta T phase cooking. It supports different load types (min, med, full, custom) and allows for manual cooking with precise control over temperature, time, steam, and motor settings. Specific cooking programs can be created and saved.
Washing: Provides automated washing cycles for internal cleaning. Users can select from short, medium, or long wash programs, and adjust settings for rinse, detergent load, and brightener load. The system monitors the levels of water softener, detergent, and brightener.
Diagnostic: Includes a diagnostic function to monitor the oven's operational status and identify potential issues.
Activity History: Keeps a record of past activities, which can be useful for tracking usage and performance.
Consumption Monitoring: Tracks energy and resource consumption, aiding in operational efficiency management.
Oven Settings: Allows users to customize various oven parameters, including language, system of measurement (metric/imperial), nominal voltage, and temperature unit (Celsius/Fahrenheit).
Fast Cooling: A dedicated function for rapidly cooling down the oven cavity.
Multi-timer: Provides multiple timers for managing different cooking processes simultaneously.
My Explora: A personalized section for saving custom cooking programs and settings.
HACCP: Likely includes features to assist with HACCP (Hazard Analysis and Critical Control Points) compliance, ensuring food safety standards are met.

Important Technical Specifications

While specific numerical values for power, dimensions, and capacity are not explicitly detailed in the provided pages, the manual highlights several key technical aspects:

Connectivity: Features Wi-Fi connectivity (Wi-fi 1, Wi-fi 2, Wi-fi 3) for internet access and software updates. It also supports wired connections.
Power Supply: Operates on a nominal voltage of 400V, 3N-.
Software: The device runs on a proprietary software platform, with updates available to enhance functionality and performance (e.g., from U1.00 to U1.01).
Display: Equipped with a touchscreen interface for user interaction.
Sensors: Includes a core probe for precise internal temperature monitoring during cooking.
Water Management: Features settings for water softener and monitors levels of detergent and brightener for washing cycles.

Usage Features

The PIRON Explora Performer is designed for ease of use and operational flexibility:

Intuitive Touchscreen Interface: The main screen provides quick access to core functions like Home, Cooking, Recipes, and Washing. Settings are easily navigable through a menu structure.
Wi-Fi Connectivity:
- Connecting to Wi-Fi: Users can connect to available Wi-Fi networks by selecting the desired network (Wi-fi 1, Wi-fi 2, or Wi-fi 3), entering the password using an on-screen keyboard, and choosing the connection method (e.g., DHCP). A "Connecting please wait..." message indicates the connection process.
- Network Status: The interface clearly shows the status of the Wi-Fi connection (e.g., "Wifi disconnected," "Connected").
Software Updates:
- Notification: The oven automatically detects and notifies the user when "A new software version is available."
- Installation: Users can initiate the update process by confirming the installation. The update progress is displayed with a "Remaining time" indicator.
- Completion: Upon successful completion, a message "Update successfully completed. Press confirm to restart the application." appears, followed by "The software is updated."

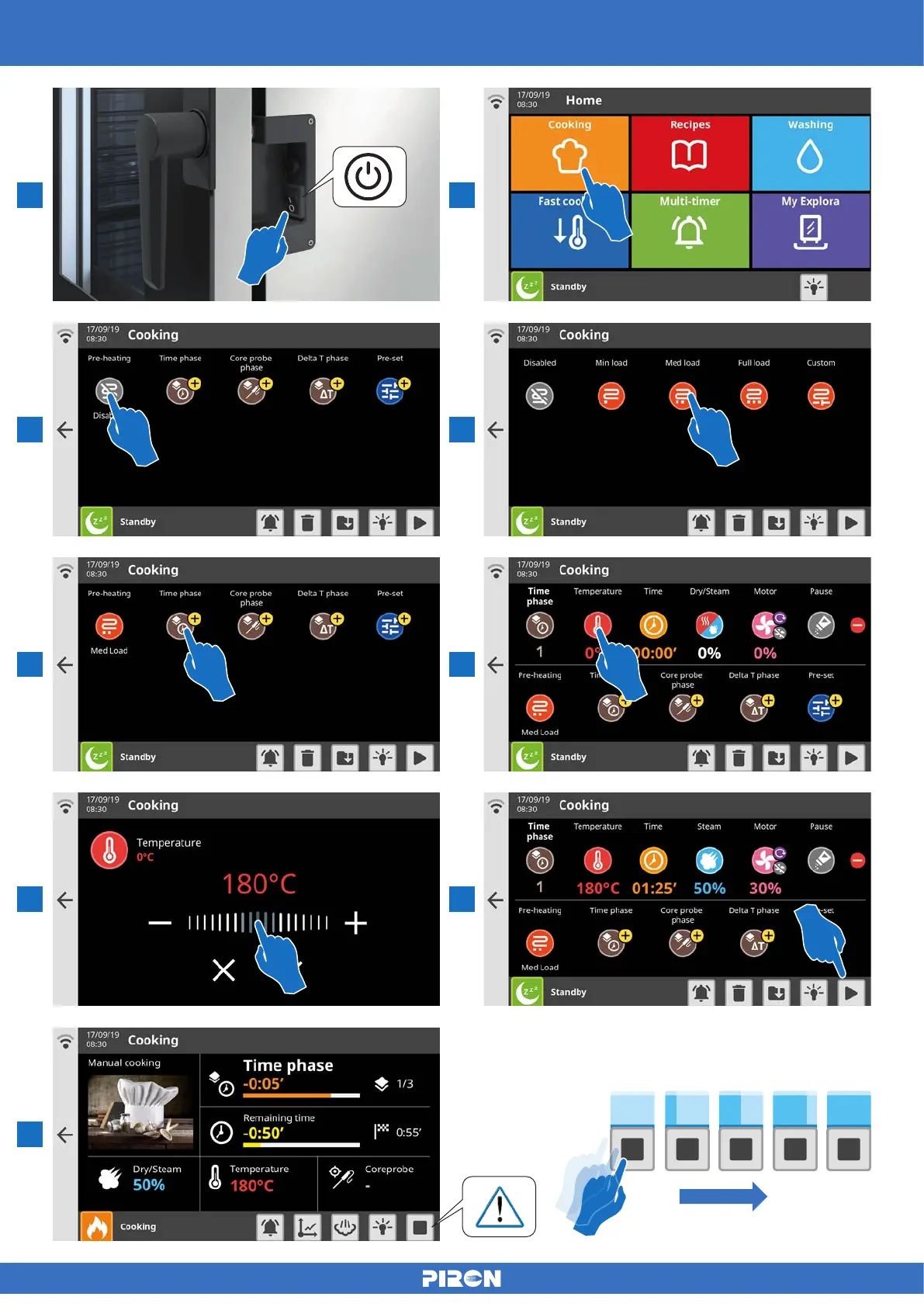

Cooking Programs:
- Manual Cooking: Allows for detailed control over cooking parameters, including temperature, time, steam percentage, and motor speed.
- Pre-set Programs: The "My Explora" section likely allows users to save and recall custom cooking recipes and settings.
- Core Probe Cooking: Enables precise cooking based on the internal temperature of the food, ensuring consistent results.
- Delta T Phase: A cooking method that maintains a constant temperature difference between the oven and the food's core, ideal for delicate items.
Washing Cycles:
- Program Selection: Users can choose between short, medium, and long washing programs.
- Load Management: The system guides the user to "Load detergent" and "Load brightener" as needed.
- Level Monitoring: Displays the remaining time for the wash cycle and monitors the levels of water softener, detergent, and brightener.
Multi-language Support: The device supports multiple languages, including English, for broader accessibility.
Date and Time Settings: Allows for precise setting of the internal clock.

Maintenance Features

The device incorporates several features to facilitate maintenance and ensure longevity:

Software Updates: Regular software updates ensure the oven operates with the latest features, bug fixes, and performance improvements. This is a crucial aspect of modern device maintenance.
Water Softener Settings: The ability to configure water softener settings helps prevent limescale buildup, which is vital for the longevity and efficiency of steam-generating components and washing systems. The system also monitors the water softener level.
Detergent and Brightener Monitoring: The oven monitors the levels of detergent and brightener for washing cycles, prompting the user to refill when necessary. This ensures effective cleaning and prevents damage from insufficient cleaning agents.
Diagnostic Function: The diagnostic feature helps identify and troubleshoot operational issues, allowing for timely maintenance interventions.
Cleaning Cycles: Automated washing cycles contribute to the internal hygiene of the oven, reducing the need for manual scrubbing and extending the life of internal components.

The manual also includes QR codes for "SCAN ME," which likely provide access to additional resources, detailed instructions, or troubleshooting guides, further supporting maintenance and user assistance. The overall design emphasizes a user-friendly experience with robust features for professional kitchen environments.
