Pit Boss 2 Series User Manual

ENGLISH
11

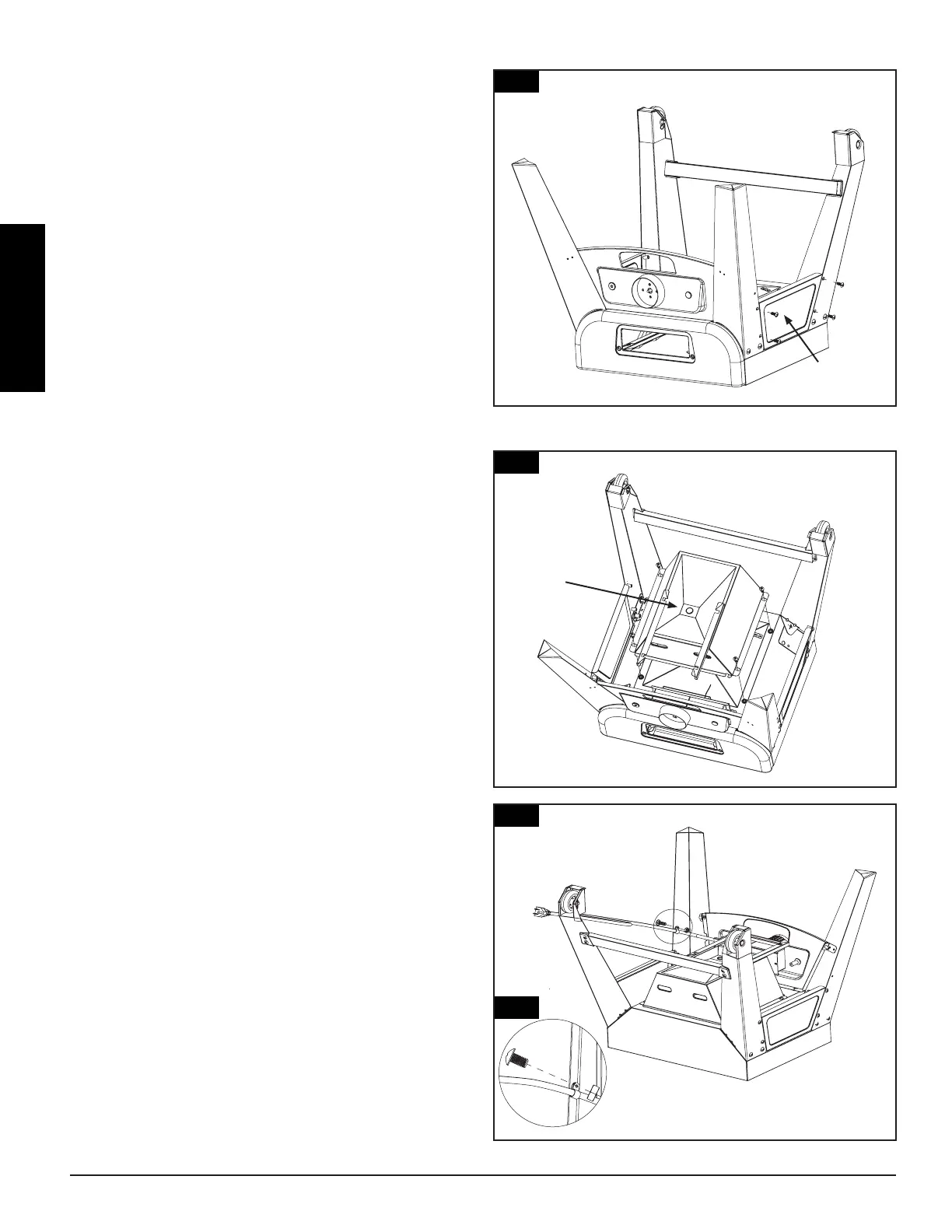

4.      
Parts Required:
2 x Support Panel (#20)
1 x Right Front Leg (#22)
1 x Left Front Leg (#19)
1 x Right Rear Leg with Wheel Assembly (#17)
1 x Left Rear Leg with Wheel Assembly (#18)
8 x #10-24*1/2”Screw (#C)
Installation:
• Mount Support Panel (#20) to the Right Front
Leg (#22) and Right Rear Leg with Wheel
Assembly (#17) using 4 x #10-24*1/2” Screws
(#C) as Fig.4 shown.
• Mount Support Panel (#20) to Left Front Leg
(#19) and Left Rear Leg with Wheel Assembly
(#18) using 4 x #10-24*1/2” Screws (#C) as
Fig.4 shown.
5.      
      
Parts Required:
1 x Bottom Chamber Assembly (#23)
1 x Lower Smoker Cabinet with Control Panel
Assembly (#14)
4 x #10-24*1/2”Screw (#C)
Installation:
• Mount Bottom Chamber Assembly (#23) to
the bottom area of Lower Smoker Cabinet
with Control Panel Assembly (#14) using 4 x
#10-24*1/2”Screws (#C) as Fig.5 shown.
6.      
  
Parts Required:
1 x Left Front Leg (#19)
1 x #8-32*1/2”Screw (Pre-assembled on Left Front
Leg)
1 x #8-32 nut (Pre-assembled on Left Front Leg)
1 x Power Cord Mounting Bracket (Pre-assembled on
Left Front Leg)
Installation:
• Mount Power cord mounting bracket onto the
Left Front Leg (#19) using 1 x #8-32*1/2”Screw
and #8-32 nut as Fig.6 & Fig.6.1 shown.
Fig.6
Fig.6.1
Fig.4
20
Fig.5
23

Pit Boss 2 Series Specifications

General

Fuel Type	Pellet
Number of Racks	2
Material	Steel
Digital Control	Yes
Wheels	Yes
Temperature Range	180°F - 500°F
