ENGLISH
7
Parts are located throughout the shipping carton, including underneath the smoker. Inspect the smoker, parts, and hardware
blister pack after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the
smoker before assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not
attempt to assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Customer Care for parts.
www.pitboss-grills.com | USA: (480) 923-9630 | CANADA (TOLL FREE): 1-877-942-2246
IMPORTANT: To ease installation, using two people is helpful (but not necessary) when assembling this unit.
Tools required for assembly: screwdriver and level.
Tools not included.
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed, or unless otherwise mentioned.

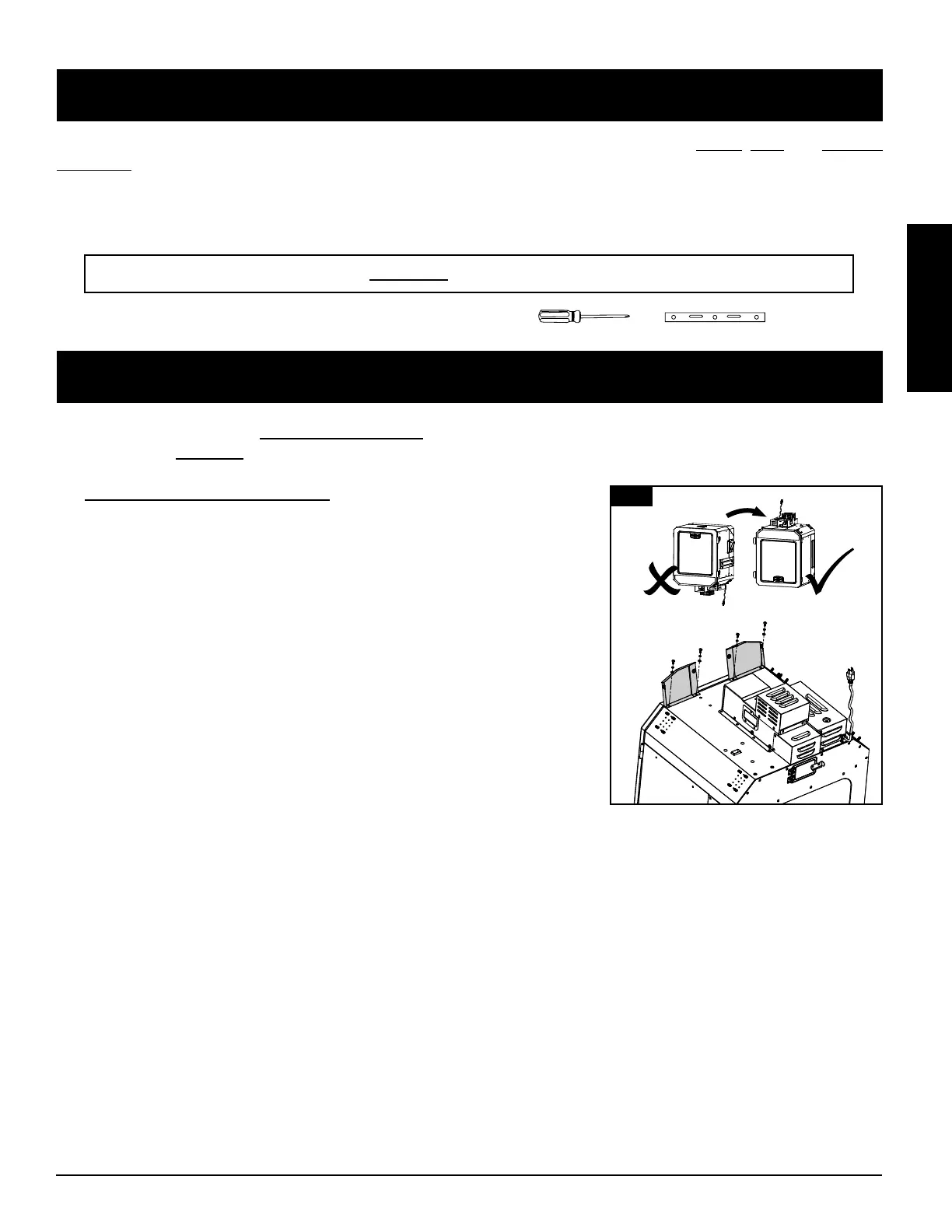

1.
Parts Required:
1 x Main Cabinet
(#4)
1 x Left Front Panel (
#10)
1 x Right Front Panel (#12)
4 x Screw
(#C)
4 x Locking Washer
(#I)
4 x Washer
(#J)
Installation:
• Place a piece of cardboard on the floor to prevent scratching the
unit and parts during assembly. Turn the Main Cabinet over with the
underside facing up. Note detail at the top of illustration 1.
• Install one support panel to the side of the unit on the front of the main
cabinet. Secure using two screws, locking washers, and washers on each
side. Ensure the flat side of the support plate is facing outwards. Repeat
the same installation to mount the other support panel. Note illustration
for support panel arrangement.
1
12
IJ
10
4
To Next Page
