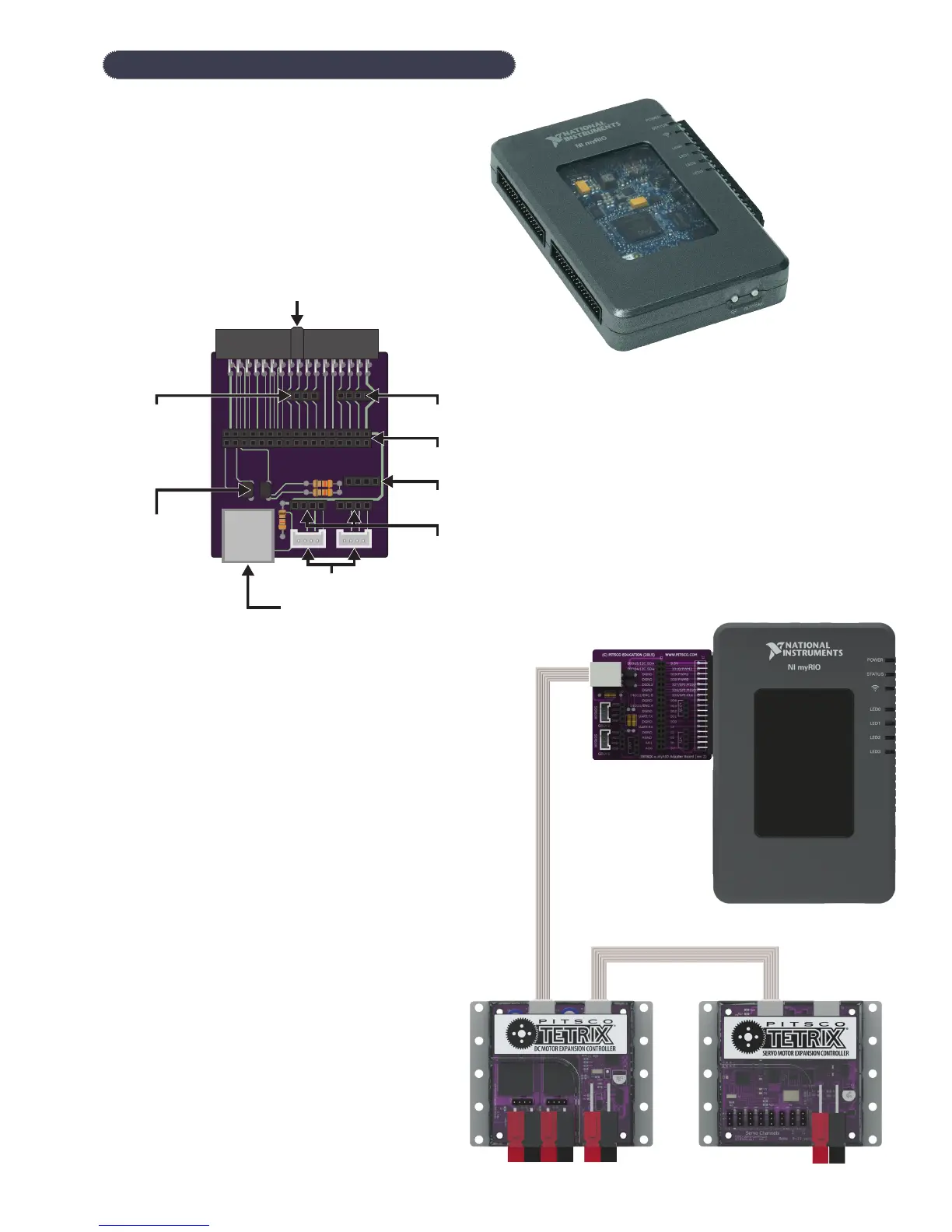

pitsco Tetrix Max User Manual

Built-in
logic-level
shifting
circuit for
connection of
TETRIX motor
controllers
to NI myRIO i2C
bus
2x Grove sensor
family connections
GND expansion
port
34-pin NI myRIO I/O
expansion port
+5 V expansion
port
+3.3 V expansion
port
34-pin MXP connector to NI myRIO
LEGO style i2C port connector
for connection of TETRIX
motor controllers
2x Grove sensor
family connections
Support for National Instruments myRIO
In addition, there is support for the National Instruments
myRIO platform to enable TETRIX DC motor control using
the LabVIEW™ programming language.
A free downloadable TETRIX LabVIEW control palette and user
documentation are available for download at
Pitsco.com/Competitions,-Clubs,-and-Programs/World-
Robot-Olympiad.
A hardware adapter (41306) enables
easy connection of expansion
controllers to the myRIO MXP ports.

pitsco Tetrix Max Specifications

General

Brand	pitsco
Model	Tetrix Max
Category	Controller
Language	English
