Planmeca intra Installation Manual

Planmeca Intra X-ray unit 31
OTHER INSTALLATION ALTERNATIVES
Installation manual

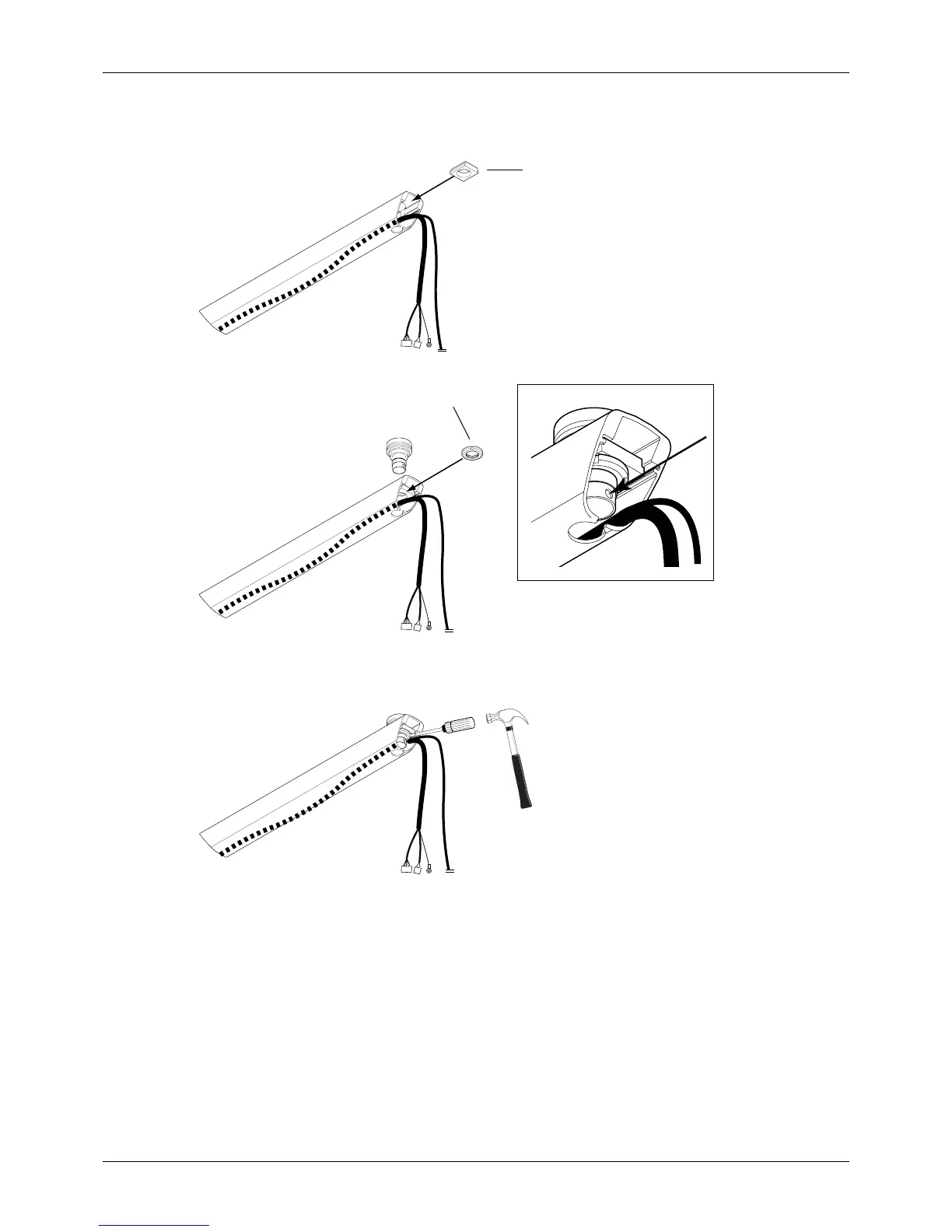

Assemble the bracket arm to the extension arm, refer to the section 4.2 “Assembling the arm” on
page 15. Assemble the bearing housing to the extension arm as described in figure below.
Install the X-ray unit to the ceiling arm and lock it immediately to its position with the fastening
screw.
Ceiladap5.eps
Shaft nut
Support plate
Attach the shaft nut

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
