FIXED CONTROL PANEL INSTALLATION
52 Planmeca Intra X-ray unit Installation manual
8.2 Attaching the bottom plate to the wall socket

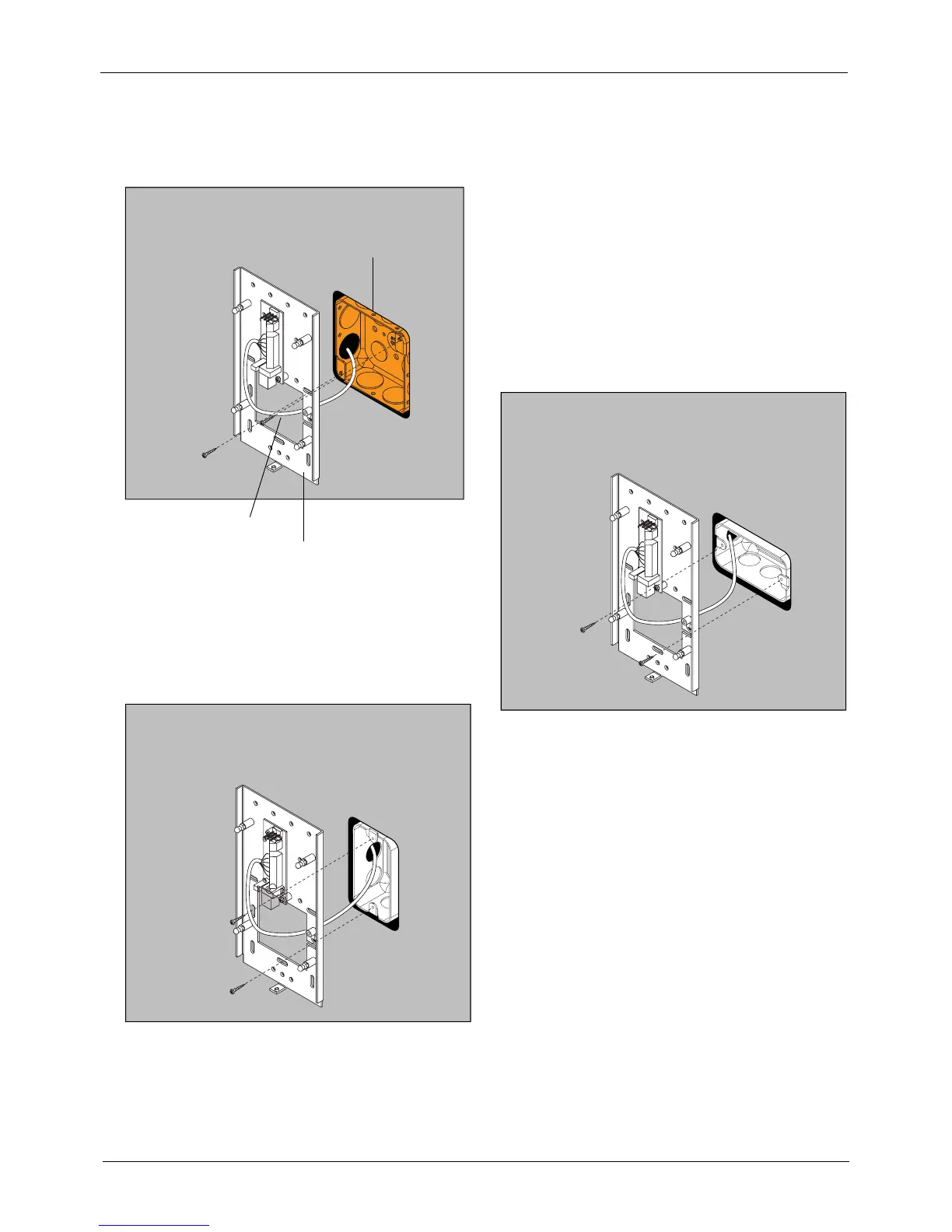

You can also attach the bottom plate to the wall socket as shown on the figure below.
NOTE You can connect the telephone cable to the Extension cable PCB before
attaching the bottom plate to the wall socket. Refer to section 8.3 “Con-
necting the cables” on page 53.
Intra_box5.eps
Alternative 1
Intra_box10.eps
Alternative 2
Intra_box11.eps
Alternative 3
Bottom plate
Wall socket
Telephone cable

Planmeca intra Specifications

General

Manufacturer	Planmeca
Model	Planmeca Intra
Frequency	50/60 Hz
Tube Voltage	60-70 kV
Tube Current	7 mA
Type	Dental X-ray Unit
Voltage	100-240 V
Weight	Varies depending on configuration; refer to specific model documentation
