Chapter E - C-ARM AND IMAGING ARM
E-62 ProMax X-ray unit with Dimax3
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
C-arm angle sensor

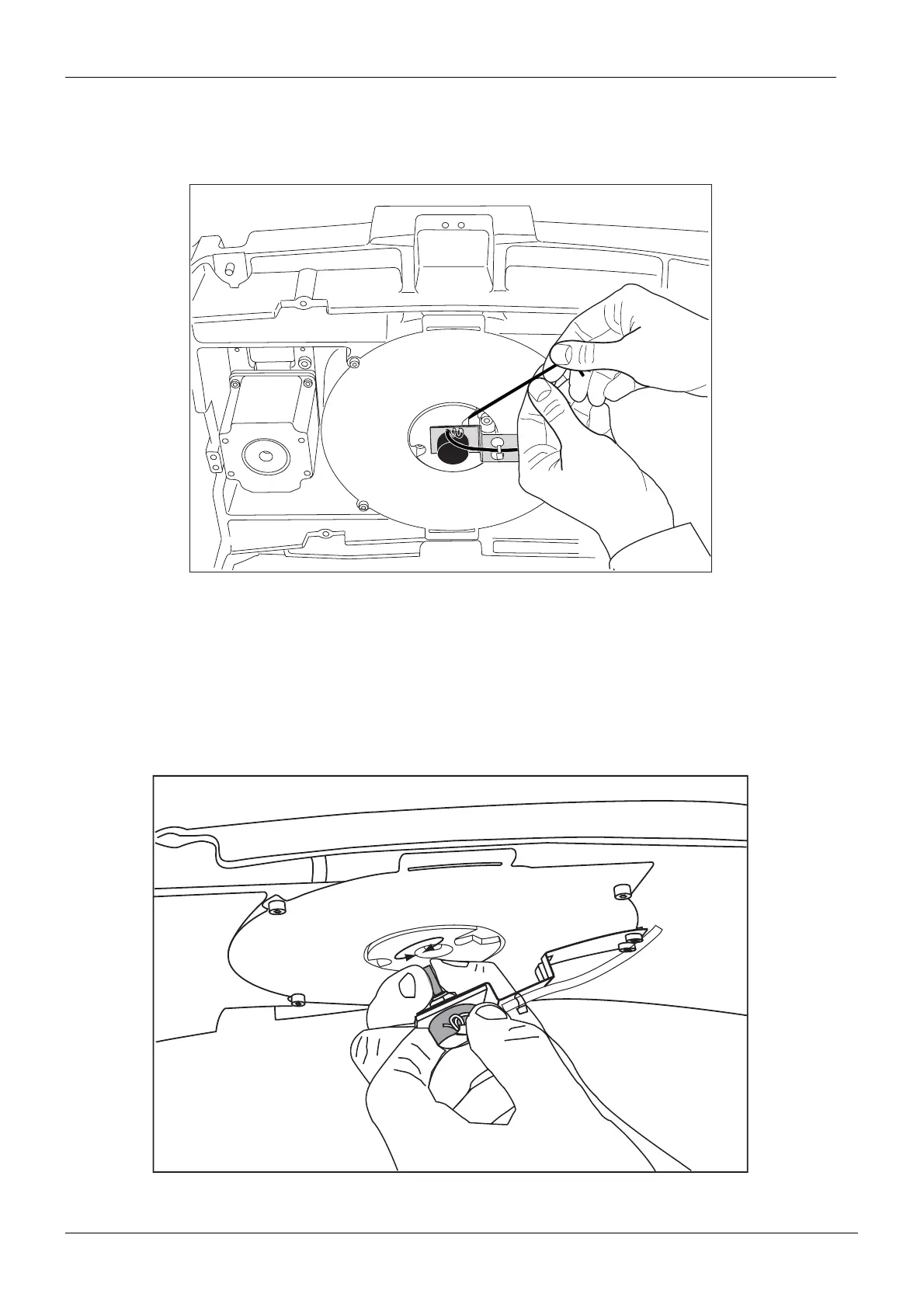

Loosen the attachment screw of C-arm angle sensor with the 2mm Allen key.
Figure 98
Lift the angle sensor assembly up from its position. Rotate the angle sensor axle until the
empty arrow appears on the display. Replace the angle sensor to its position and check that
the calibration mark remains on the display.
NOTE
The sensor holder must not touch the cable guide.
Figure 99
PXR_calib8.eps
PXR_calib9.eps
