Planmeca ProMax X-ray User Manual

Chapter E - C-ARM AND IMAGING ARM
ProMax X-ray unit with Dimax3 E-77
OTHER ADJUSTMENTS AND CALIBRATIONS
Technical Manual
2.3.3 Positioning light adjustment

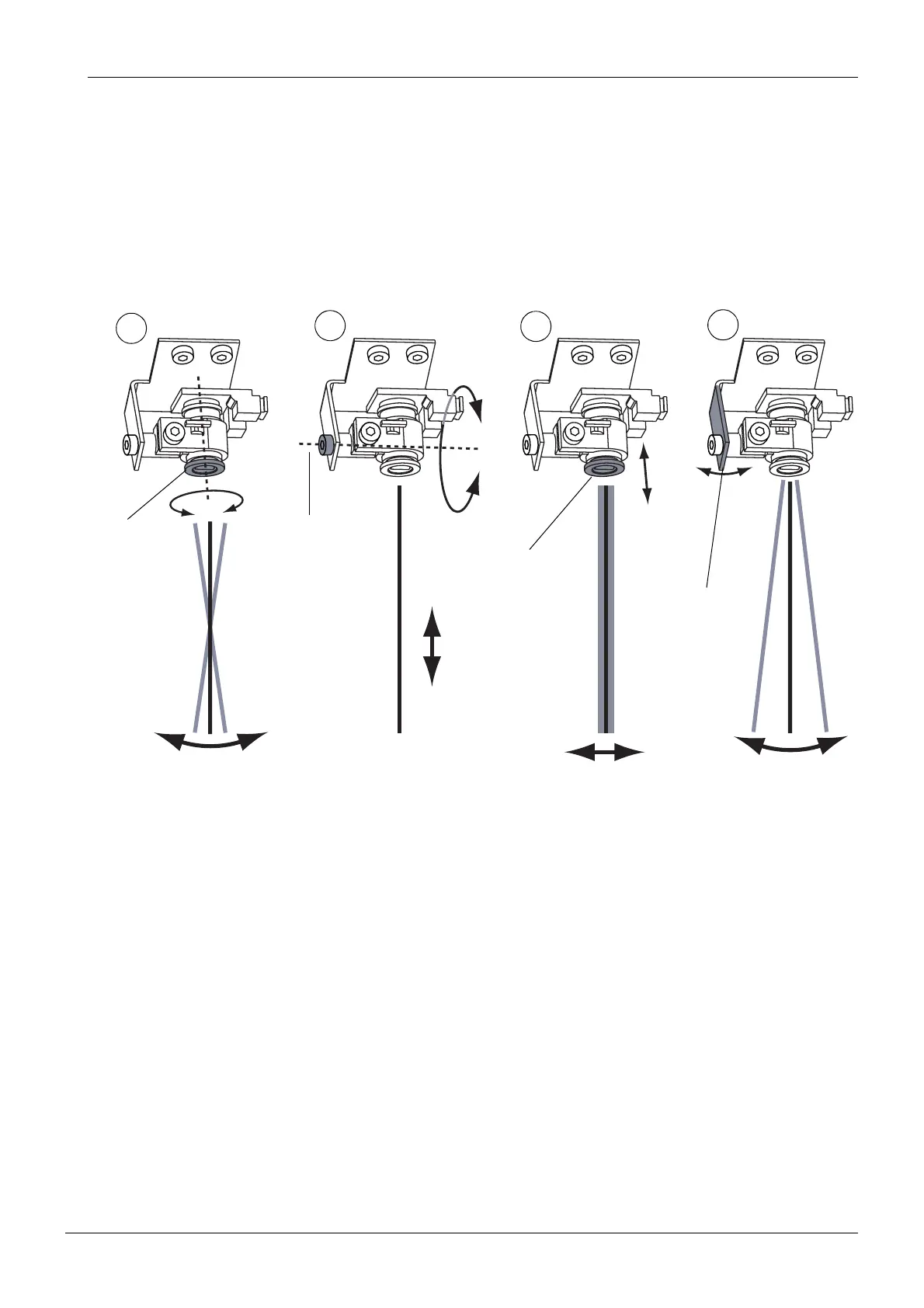

To adjust the light beam angle rotate the lens assembly of the light (Fig. 119, 1)
To adjust the light beam vertical position loosen the attachment screw of the laser light
assembly and rotate the assembly (Fig. 119, 2).
To focus the light beam adjust the depth of the lens assembly (Fig. 119, 3).
To adjust the light beam horizontal position bend the light attachment plate (Fig. 119, 4).l
Figure 119
Adjust_laser.eps
1
2
3
Lens
Lens assembly
Light assembly
attachment screw
assembly
4
Light attachment
plate
