PLS Access EA Series - Lift Dimensions and Specifications

2
Technical
Technical 2

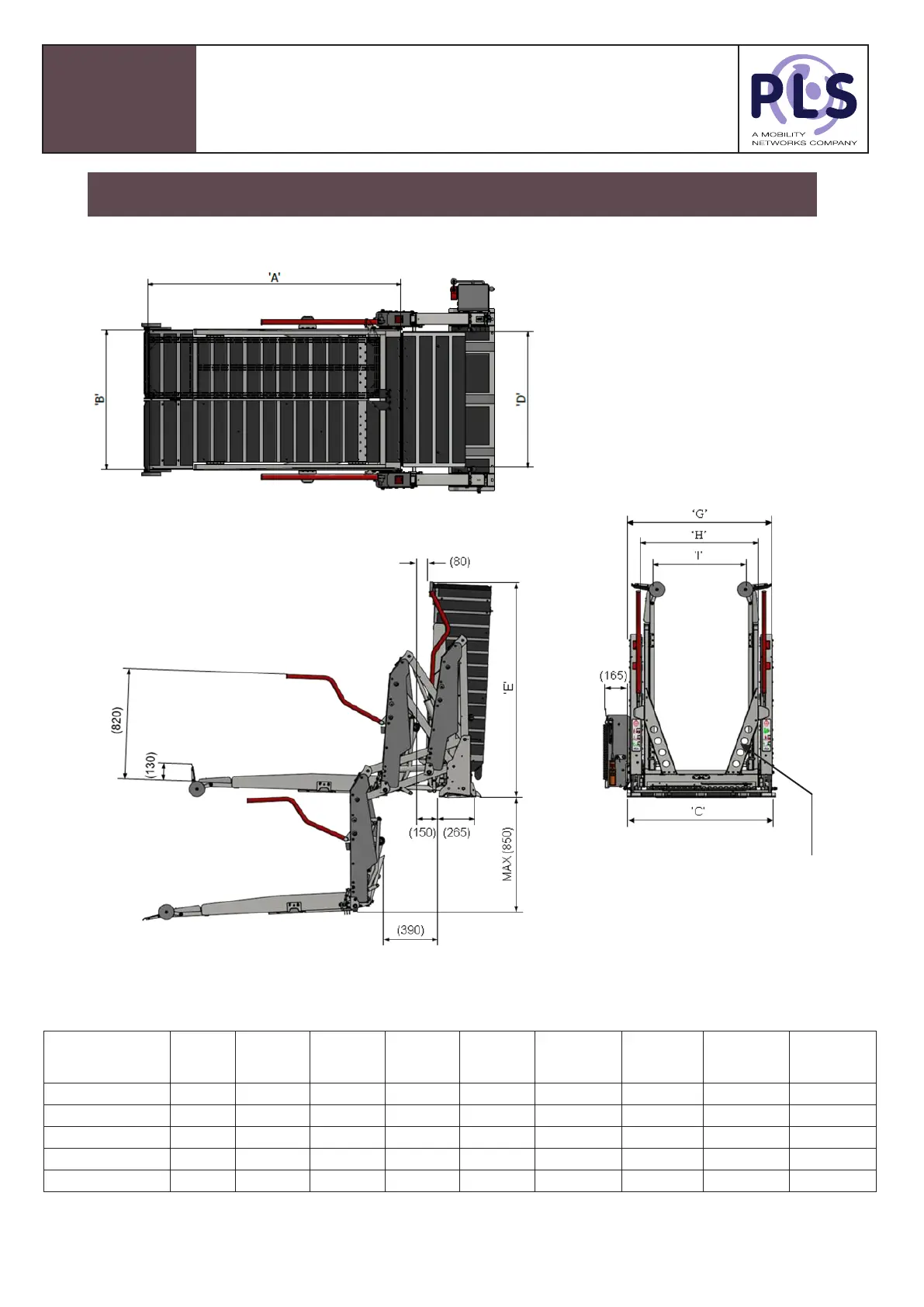

2.2 Dimensions Access™ EA & Access™ EAB
Part No.
‘A’
Platform
Length
‘B’
Platform
Width
‘C’ Base
Width
‘D’ Bridge
Plate
Width
‘E’ Stow
Height
‘G’ Outside
Arm Width
‘H’ Internal
Arm Width
‘I’ Platform
Opening
Width
SWL
(Kg)
EA-1300-815-A
1300
805
1065
790
1420
1035
845
680
400
EA-1480-815-A
1480
805
1065
790
1600
1035
845
680
400
EA-1600-815-A
1600
805
1065
790
1720
1035
845
680
400
EA-1600-915-A
1600
905
1165
890
1720
1135
945
780
500
EAB-1600-915-A
1600
905
1265
890
1720
1235
1045
780
500
‘Brace’
500kg only
Technical 2
2.2 Dimensions Access™ EA & Access™ EAB
Part No.
‘A’
Platform
Length
‘B’
Platform
Width
‘C’ Base
Width
‘D’ Bridge
Plate
Width
‘E’ Stow
Height
‘G’ Outside
Arm Width
‘H’ Internal
Arm Width
‘I’ Platform
Opening
Width
SWL
(Kg)
EA-1300-815-A
1300
805
1065
790
1420
1035
845
680
400
EA-1480-815-A
1480
805
1065
790
1600
1035
845
680
400
EA-1600-815-A
1600
805
1065
790
1720
1035
845
680
400
EA-1600-915-A
1600
905
1165
890
1720
1135
945
780
500
EAB-1600-915-A
1600
905
1265
890
1720
1235
1045
780
500
‘Brace’
500kg only
2.2 Dimensions Access™ EA & Access™ EAB
